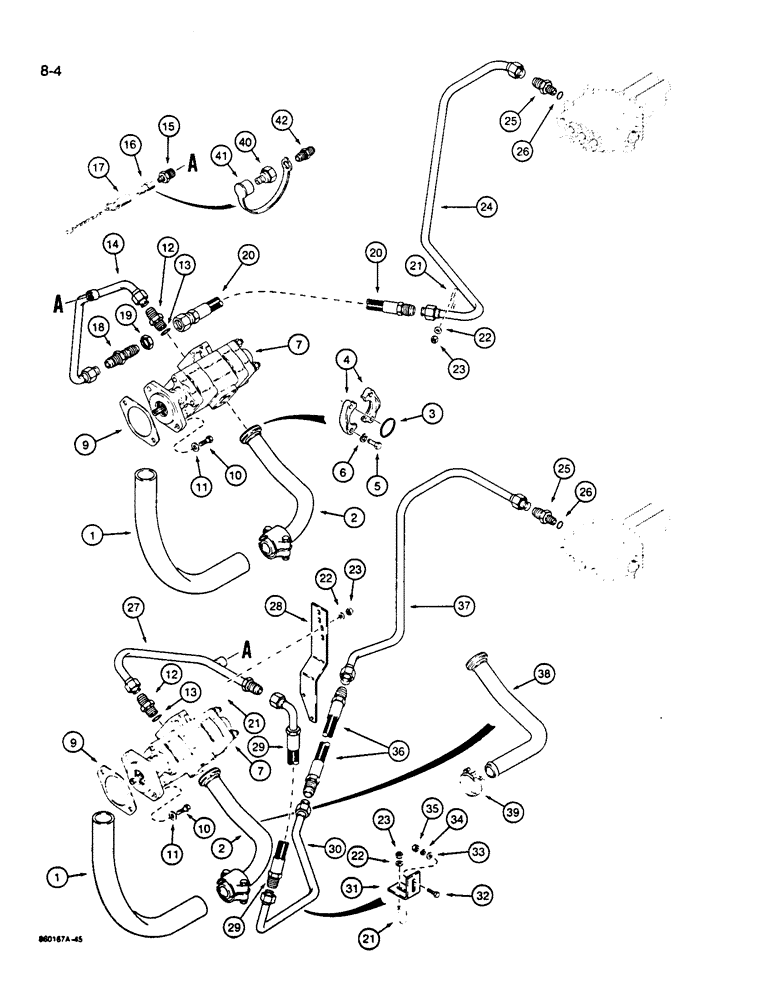

Запчасти Case W14B (8-04) - HYDRAULIC CIRCUIT, RESERVOIR TO PUMP AND LOADER CONTROL VALVE (08) - HYDRAULICS

1

L123807

HOSE,50.8 mm ID x 673.00 mm, SAE 100R4

Suction 50.8 mm ID x 673.00 mm, SAE 100R4

1шт.

2

L117344

TUBE,50.8 mm OD

- suction to pump, includes clamping hardware, no longer available, for units prior to P.I.N. JAK0017835 order (1) Ref. 1, L123807 hose, (1) Ref. 38, L126430 tube, and (2) Ref. 39, L126871 clamps

1шт.

3

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- tube flange

1шт.

4

A14141

FLANGE

SPLIT FLANGE - suction, Serial Range: tube-pump

2шт.

5

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

7

L116685

PUMP, HYDRAULIC

HYDRAULIC PUMP ASSEMBLY - parts list Figure 8-16

1шт.

8

B17428

LOCTITE

SEALANT - 50 ml tube, not shown

1шт.

9

A77441

GASKET

- hydraulic pump

1шт.

10

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

11

R24718

WASHER

- flat, hardened, 1/2"

2шт.

12

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, Incl. Ref. 13

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

14

L117404

TUBE,25.4 mm OD

- pump to loader valve, used with axle mounted parking brake

1шт.

15

217-1092

HYD CONNECTOR,3/4"-14 NPTF x 1/4"-18 NPTF

CONNECTOR - straight, used on units with S206607 quick disconnect

1шт.

16

S206607

DISC

QUICK DISCONNECT - male, test, if used

1шт.

17

D123387

DUST CAP

CAP - dust, with chain, used on units with S206607 quick disconnect

1шт.

18

218-678

FITTING,Blkhd, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

ADAPTER - straight, bulkhead

1шт.

19

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT, LOCK, Blkhd, 1 5/16"-12

1шт.

20

L117481

HYDRAULIC HOSE,19.00 mm ID x 902.00 mm, SAE 100R12

HOSE, , Pump to Loader Valve, Used with Axle Mounted Parking Brake 19.00 mm ID x 902.00 mm, SAE 100R12

1шт.

21

L78947

U-BOLT

- tube mounting

1-4шт.

22

195-103

WASHER,5/16"

- flat, , plated 5/16"

2-8шт.

23

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

2-8шт.

24

L117433

TUBE ASSY.,25.4 mm OD x 635, 215 mm L

TUBE - to loader valve , used with axle mounted parking brake

1шт.

25

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, Incl. Ref. 26

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

27

L117803

TUBE ASSY.

TUBE - from pump to loader valve, used with transmission mounted parking brake

1шт.

28

L116878

BRACKET

- tube support, used with transmission mounted parking brake

1шт.

29

L117221

HOSE ASSY.

HOSE - 18-1/2" (470 mm) long, pump to loader valve, used with transmission mounted parking brake

1шт.

30

L117808

TUBE ASSY.,25.4 mm OD

TUBE - pump to loader valve, used with transmission mounted parking brake

1шт.

31

L117376

BRACKET

- tube mounting, used with transmission mounted parking brake

1шт.

32

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

33

195-104

WASHER,3/8"

- flat, , plated 3/8"

1шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

36

L114330

HOSE

- 18" (455 mm) long, through center joint to loader valve, used with transmission mounted parking brake

1шт.

37

L113794

TUBE ASSY.,25.4 mm OD

TUBE - to loader valve, used with transmission mounted parking brake

1шт.

38

L126430

TUBE,50.8 mm OD

- suction to pump, Start Serial: JAK0017835

1шт.

39

L126871

CLAMP

- band, suction tube, Start Serial: JAK0017835

2шт.

40

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

COUPLING - quick disconnect, test, if used

1шт.

41

H434163

DUST CAP

CAP - dust, used on units with D137625 coupling

1шт.

42

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, used on units with D137625 coupling

1шт.
