Запчасти Case W14B (8-02) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

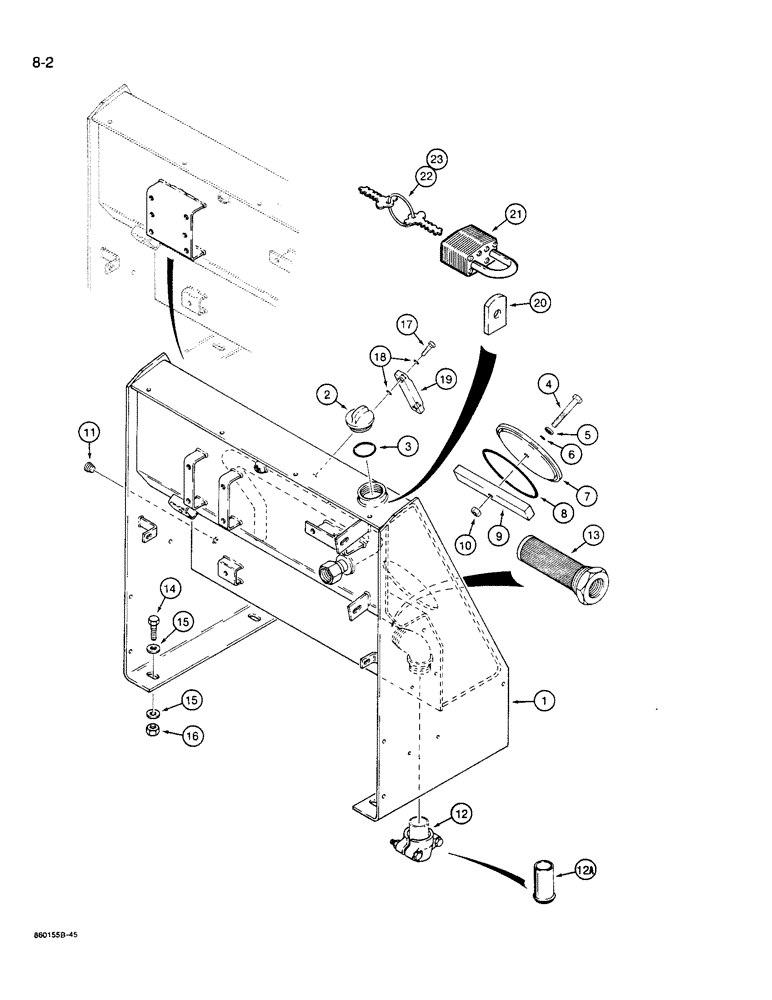

Схема запчастей Case W14B - (8-02) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

L116954

TANK

RESERVOIR ASSEMBLY - hydraulic, no longer available, order L126901 reservoir, Includes: Ref. 1 - 12A

1шт.

L118455

TANK

RESERVOIR ASSEMBLY - hydraulic, no longer available, order L126901 reservoir, Includes: Ref. 1 - 12A, Serial Range: -JAK0017835

1шт.

L126901

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic , Includes: Ref. 1 - 12A, Start Serial: JAK0017835

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR - hydraulic

1шт.

2

L100349

PLUG

CAP - reservoir

1шт.

3

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

SEAL - cap

1шт.

4

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex head, 1/2" - 13 NC x 4", special thread length

1шт.

5

L78045

WASHER

- seal

1шт.

6

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

SEAL - access cover bolt

1шт.

7

L77124

COVER ASSY

COVER - access, reservoir

1шт.

8

L111687

O-RING,6.975" ID x 0.275" Width

- access cover

1шт.

9

L50741

BAR

- cover hold down

1шт.

10

131-510

LOCK NUT,1/2"-13

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

11

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - square socket head, 3/4" NPT

1шт.

12

L117389

CLAMP

- hose, use on units with L116954 or L118455 reservoir

1шт.

12a

L126903

TUBE,50.8 mm OD x 103 mm L

- suction, use on units with L126901 reservoir

1шт.

13

L117016

STRAINER ASSY.

SCREEN - suction

1шт.

14

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

4шт.

15

196-26

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 5/8", hardened

8шт.

16

129-107

NUT,5/8"-11, G5

4шт.

L116247

GAUGE

- sight, Includes: Ref. 17 - 19

1шт.

17

N13213

BOLT

BOLT - special, sight gauge

2шт.

18

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- seal, sight gauge

4шт.

19

NSS

NOT SOLD SEPARAT

BODY - sight gauge

1шт.

20

L79201

BRACKET

TAB - lock

1шт.

21

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 22 and 23

1шт.

22

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

23

R29555

KEY

- for Master padlock only, if used

2шт.

Выбрано товаров: 28
