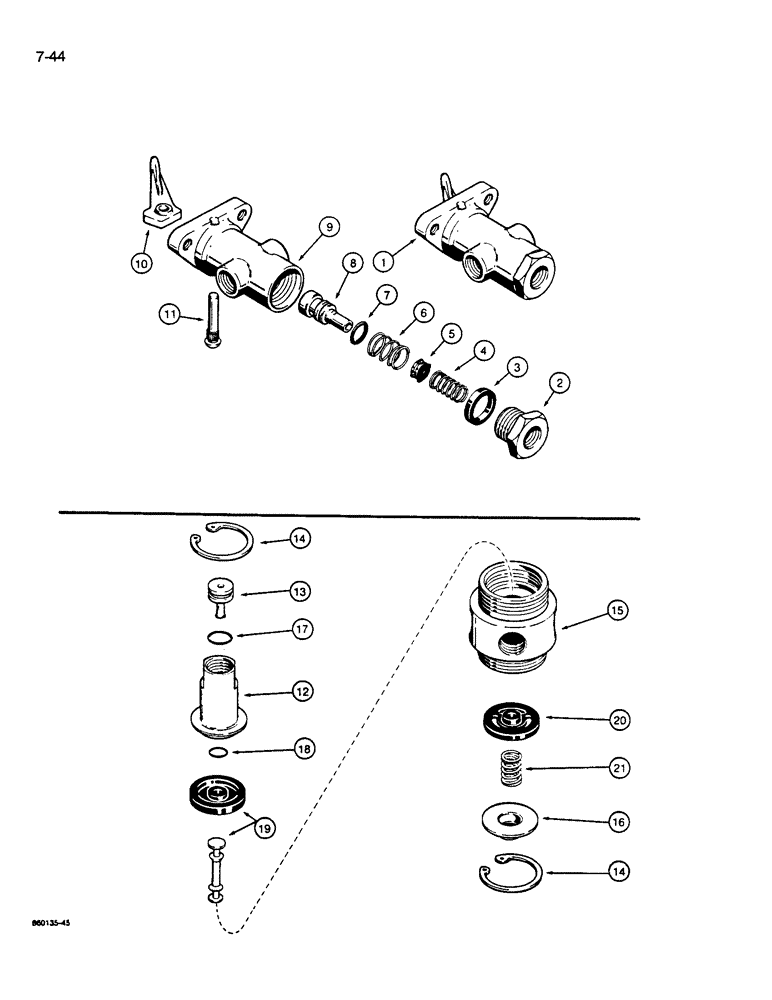

Запчасти Case W14B (7-44) - CLUTCH CUTOUT VALVE AND PILOT VALVE, L12630 CLUTCH CUTOUT VALVE (07) - BRAKES

1

L12630

LOCK VALVE

CONTROL VALVE ASSEMBLY - clutch cutout, Includes: Ref. 2 - 11

1шт.

2

L31396

CYLINDER END CAP

CAP - control valve

1шт.

3

L31397

O-RING,0.549" ID x 0.103" Width

RING - seal, cap

1шт.

4

L31391

VALVE SPRING

SPRING - return, plunger

1шт.

5

L36026

VALVE

FLOW CONTROL VALVE - clutch cutout

1шт.

6

L31395

VALVE SPRING

SPRING - control valve

1шт.

7

L31390

O-RING,5/16" ID x 7/16" OD x 1/16"

- plunger

1шт.

8

L31389

PLUNGER

- control valve

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

10

L31392

LEVER

- control valve

1шт.

11

L31393

RIVET

- control valve

1шт.

L109922

VALVE

ASSEMBLY - pilot, Includes: Ref. 12 - 21

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - piston, pilot valve - L109922

1шт.

13

NSS

NOT SOLD SEPARAT

PISTON - valve, pilot valve - L109922

1шт.

14

A15110

SNAP RING,0.812", Int, #81

Ring, Snap, , pilot valve - L109922 0.812", Int, #81

2шт.

15

NSS

NOT SOLD SEPARAT

BODY - valve, pilot valve - L109922

1шт.

16

NSS

NOT SOLD SEPARAT

RETAINER - spring, pilot valve - L109922

1шт.

N8740

KIT

- valve repair, pilot valve - L109922, Includes: Ref. 17 - 21

1шт.

17

S5602

O-RING,0.07" Thk x 0.208" ID, -9, Cl 5, 75 Duro

- piston, pilot valve - L109922

1шт.

18

T30271

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

- piston housing, pilot valve - L109922

1шт.

19

NSS

NOT SOLD SEPARAT

STEM ASSEMBLY - with diaphragm, pilot valve - L109922

1шт.

20

NSS

NOT SOLD SEPARAT

DIAPHRAGM - valve, pilot valve - L109922

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - valve, pilot valve - L109922

1шт.
