Запчасти Case W14B (7-40) - PARKING BRAKE ACTUATOR (07) - BRAKES

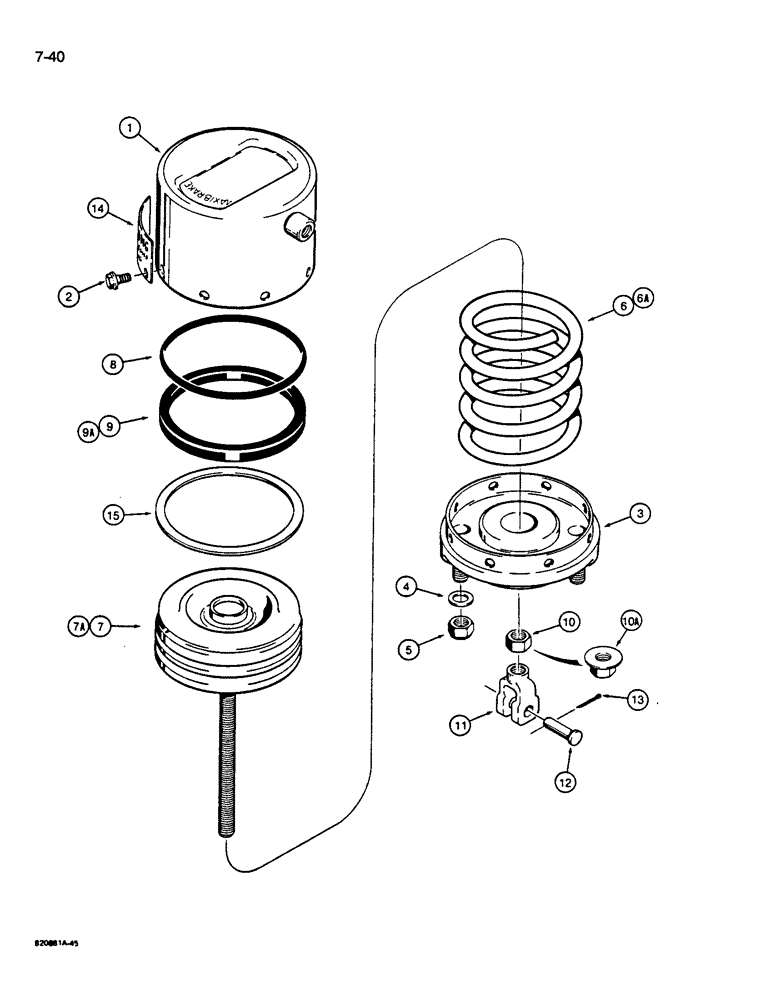

Схема запчастей Case W14B - (7-40) - PARKING BRAKE ACTUATOR (07) - BRAKES

Артикул

Название

Примечание

Количество

L61187

CHAMBER

ACTUATOR ASSEMBLY - parking brake, Aeroquip Part No. KSMROPT50S45949, no longer available, order L127165 actuator when replacing complete assembly, Includes: Ref. 1 - 15

1шт.

L127165

BRAKE, PARKING

ACTUATOR ASSEMBLY - parking brake, Aeroquip Part No. KSMROPT40S50087, Includes: Ref. 1 - 15

1шт.

1

N8228

CYLINDER ASSY.

CYLINDER - parking brake actuator

1шт.

2

121-124

BOLT,Hex Flg, 5/16"-24 x 1/2", Serr

- hex flange, self-locking, 5/16 NF x 1/2 inch

8шт.

3

N6900

PLATE

- mounting

1шт.

4

S114369

WASHER

- special

2шт.

5

131-377

LOCK NUT,5/8"-11, GC

NUT - hex, self-locking, 5/8" - 18 NF

2шт.

6

S94248

SPRING

- piston, 50 lb rating, used with L61187 actuator

1шт.

6a

S301822

SPRING

- piston, 40 lb rating, used with L127165 actuator

1шт.

7

N8229

PISTON

- cylinder, used with L61187 actuator

1шт.

7a

S301821

PISTON

- cylinder, used with L127165 actuator

1шт.

8

S89899

O-RING

- piston

1шт.

9

S89912

WIPER

- felt, used with L61187 actuator

1шт.

9a

S301823

FELT

WIPER - felt, used with L127165 actuator

1шт.

10

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex, jam, 5/8 inch NF, used with L61187 actuator

1шт.

10a

S89907

FLANGE NUT

- flange, special, at clevis, used with L127165 actuator

1шт.

L35613

YOKE

CLEVIS AND PIN ASSEMBLY - parking brake actuator, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

CLEVIS - piston retaining

1шт.

12

L33649

AXLE PIN

CLEVIS PIN - special

1шт.

13

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE - warning

1шт.

15

S301824

BEARING

RING - backup, felt wiper, used with S301821 piston and L127165 actuator only

1шт.

Выбрано товаров: 22
