Запчасти Case W14B (7-34) - BRAKE VALVE - TREADLE - L117359 (07) - BRAKES

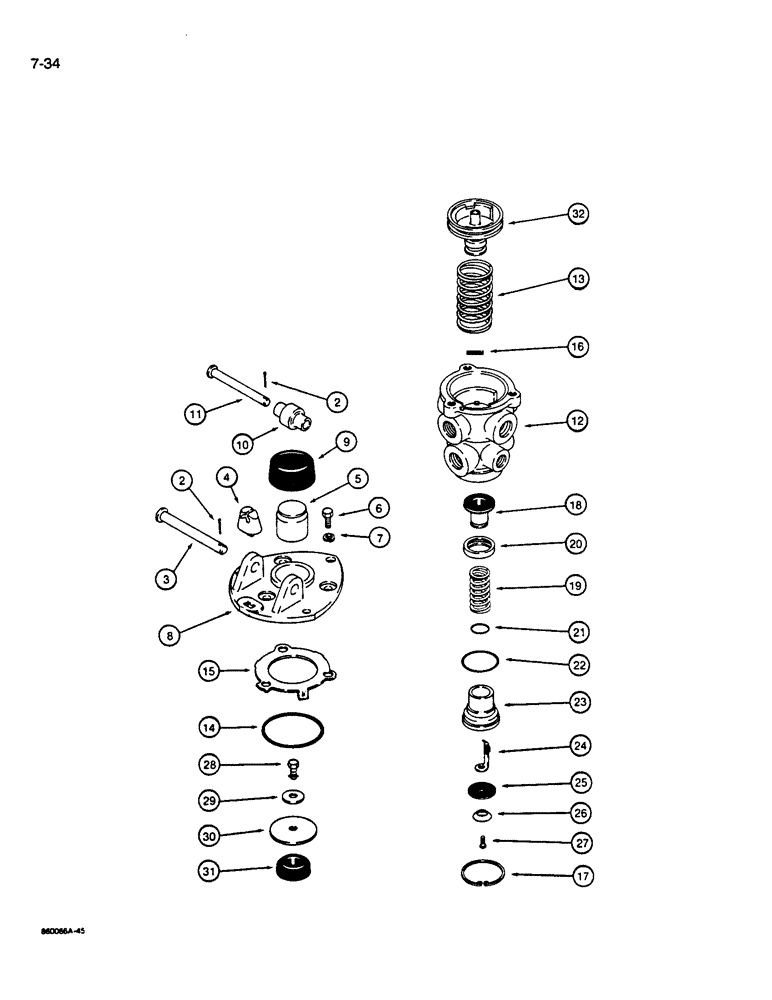

Схема запчастей Case W14B - (7-34) - BRAKE VALVE - TREADLE - L117359 (07) - BRAKES

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - brake, Bendix No. 229501, not shown, Includes: Ref. 2 - 32

1шт.

2

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

3

L32346

PIN

- fulcrum

1шт.

4

L32674

BUTTON

- stop

1шт.

5

L31363

PLUNGER

- treadle, brake

1шт.

6

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

8

L31361

LARGE PLATE

PLATE - mounting

1шт.

9

L31364

BOOT

- treadle

1шт.

Part of Valve Repair Kit, P/N L31806

1шт.

10

L32752

ROLLER

- treadle

1шт.

11

L32345

PIN

- roller

1шт.

L15782

BRAKE VALVE

ASSEMBLY - inlet and exhaust, Includes: Ref. 12 - 32

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING - return, piston

1шт.

Part of Valve Repair Kit, P/N L31806

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

Part of Valve Repair Kit, P/N L31806

1шт.

15

NSS

NOT SOLD SEPARAT

RETAINER - valve

1шт.

16

NSS

NOT SOLD SEPARAT

FILTER - vent

1шт.

17

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , valve 1.625", Int, #162

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - inlet and exhaust, Includes: Ref. 18 - 27

1шт.

Part of Valve Repair Kit, P/N L31806

1шт.

18

NSS

NOT SOLD SEPARAT

VALVE - inlet and exhaust

1шт.

Part of Valve Repair Kit, P/N L31806

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING - valve

1шт.

Part of Valve Repair Kit, P/N L31806

1шт.

20

NSS

NOT SOLD SEPARAT

RETAINER - valve

1шт.

Part of Valve Repair Kit, P/N L31806

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

Part of Valve Repair Kit, P/N L31806

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

Part of Valve Repair Kit, P/N L31806

1шт.

23

NSS

NOT SOLD SEPARAT

SEAT - check valve, exhaust

1шт.

Part of Valve Repair Kit, P/N L31806

1шт.

24

NSS

NOT SOLD SEPARAT

SPRING - preload, inlet valve

1шт.

Part of Valve Repair Kit, P/N L31806

1шт.

25

NSS

NOT SOLD SEPARAT

DIAPHRAGM - valve

1шт.

Part of Valve Repair Kit, P/N L31806

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER - diaphragm, valve

1шт.

Part of Valve Repair Kit, P/N L31806

1шт.

27

182-84

SCREW,Slotted Pan Hd, #8-32 x 3/8"

- machine, slotted head, No. 8 - 32 NC x 3/8"

1шт.

Part of Valve Repair Kit, P/N L31806

1шт.

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY - valve, Includes: Ref. 28 - 32

1шт.

28

NSS

NOT SOLD SEPARAT

BOLT - locking, special

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - compression, spring

1шт.

30

NSS

NOT SOLD SEPARAT

SEAT - spring, piston

1шт.

31

NSS

NOT SOLD SEPARAT

SPRING - rubber, piston

1шт.

32

NSS

NOT SOLD SEPARAT

PISTON - valve

1шт.

L31806

KIT

- valve repair, includes Refs. 9, 13, 14, and 18 - 27

1шт.

Выбрано товаров: 50
