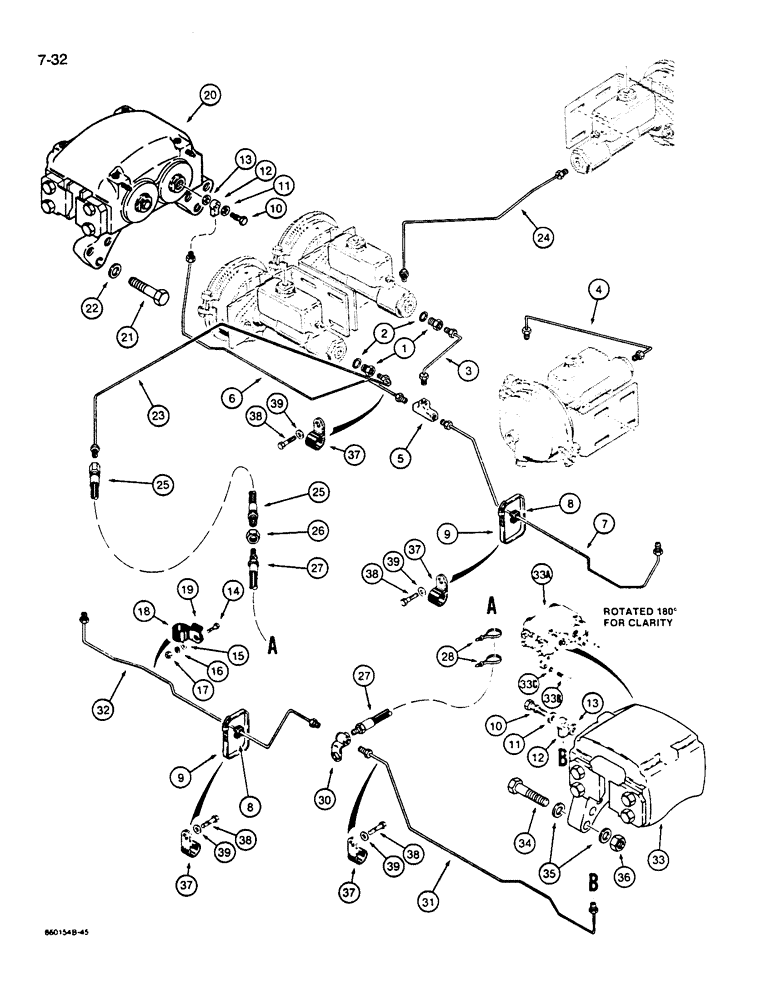

Запчасти Case W14B (7-32) - BRAKE SYSTEM, BRAKE ACTUATORS TO WHEEL CYLINDERS (07) - BRAKES

1

222-1116

ADAPTER,7/16"-24 Fem x 1/2"-20, Inv Fl

- straight

2шт.

2

A12988

GASKET

- fitting

2шт.

3

L126765

TUBE,6.35 mm OD

- brake actuator to front axle tee, used with axle mounted parking brake

1шт.

4

L113327

TUBE,6.35 mm OD

- brake actuator to front axle tee, used with transmission mounted parking brake

1шт.

5

A12452

FITTING

TEE - special, brake lines, front axle

1шт.

6

L126776

TUBE,6.35 mm OD

- left-hand, front axle

1шт.

7

L126778

TUBE,6.35 mm OD

- right-hand, front axle

1шт.

8

L51239

SUPPORT ASSY.

MOUNT - tube, if used

4шт.

9

214-277

HOSE CLAMP,#100, 5.88" - 6.75", Type F Worm

CLAMP - tube, if used

4шт.

10

A12864

BOLT

- special, hollow

4шт.

11

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer, .600" (15.24 mm) ID

4шт.

12

A18531

FITTING

- special, tube to brake actuator

4шт.

13

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - inner, .537" (13.64 mm) ID

4шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", zinc plated

4шт.

15

495-21044

WASHER,3/8"

4шт.

16

492-11038

LOCK WASHER,3/8"

4шт.

17

425-106

NUT,3/8"-16, Cl 5

4шт.

18

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- to axle bolt

4шт.

19

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- brake tube

4шт.

20

L127645

BRAKE CALIPER

CALIPER ASSEMBLY - disc brake, parts list Figure 7-05, used with L117958 and L116696 front axles

2шт.

20

L127645R

REMAN-BRAKE ASSY.

W14B

2шт.

20

L127645C

CORE-BRAKE ASSY.

Return Number

2шт.

21

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

12шт.

22

L117258

WASHER

- flat, special, hardened

12шт.

23

L118027

TUBE,6.35 mm OD

- from brake actuator to rear axle, used with axle mounted parking brake

1шт.

24

L113343

TUBE,6.35 mm OD

- from brake actuator to rear axle, used with transmission mounted parking brake

1шт.

25

L113970

HOSE,3.18 mm ID x 570.00 mm, SAE 1401

Through Center Joint 3.18 mm ID x 570.00 mm, SAE 1401

1шт.

26

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex, jam, 5/8" - 18 NF

1шт.

27

L117847

HOSE,4.76mm ID x 1750mm L

Center Joint to Rear Axle 4.76 mm ID x 1750.00 mm, SAE J1401

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

30

L76365

FITTING

TEE - special, brake lines

1шт.

31

L126776

TUBE,6.35 mm OD

- right-hand, rear axle

1шт.

32

L126778

TUBE,6.35 mm OD

- left-hand, rear axle

1шт.

33

L126862

BRAKE ASSY.

CALIPER ASSEMBLY - disc brake, parts list Figure 7-06, used with L116697 rear axle

2шт.

33a

L127645

BRAKE CALIPER

CALIPER ASSEMBLY - disc brake, parts list Figure 7-04, used with L127199 rear axle

2шт.

L127645R

REMAN-BRAKE ASSY.

W14B

2шт.

L127645C

CORE-BRAKE ASSY.

Return Number

1шт.

33b

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

12шт.

33c

L117258

WASHER

- flat, special, hardened

12шт.

34

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

- hex, 3/4" -10 NC x 3, G8

12шт.

35

L117258

WASHER

- flat, 3/4", hardened

24шт.

36

129-572

NUT,3/4"-10, G8

12шт.

37

49832

CLAMP

- P-type, Serial Range: tube-axle

4шт.

38

26-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 8

- hex head, 7/16" - 14 NC x 1-3/4", grade 8

4шт.

39

D47367

WASHER

- special, 7/16"

4шт.
