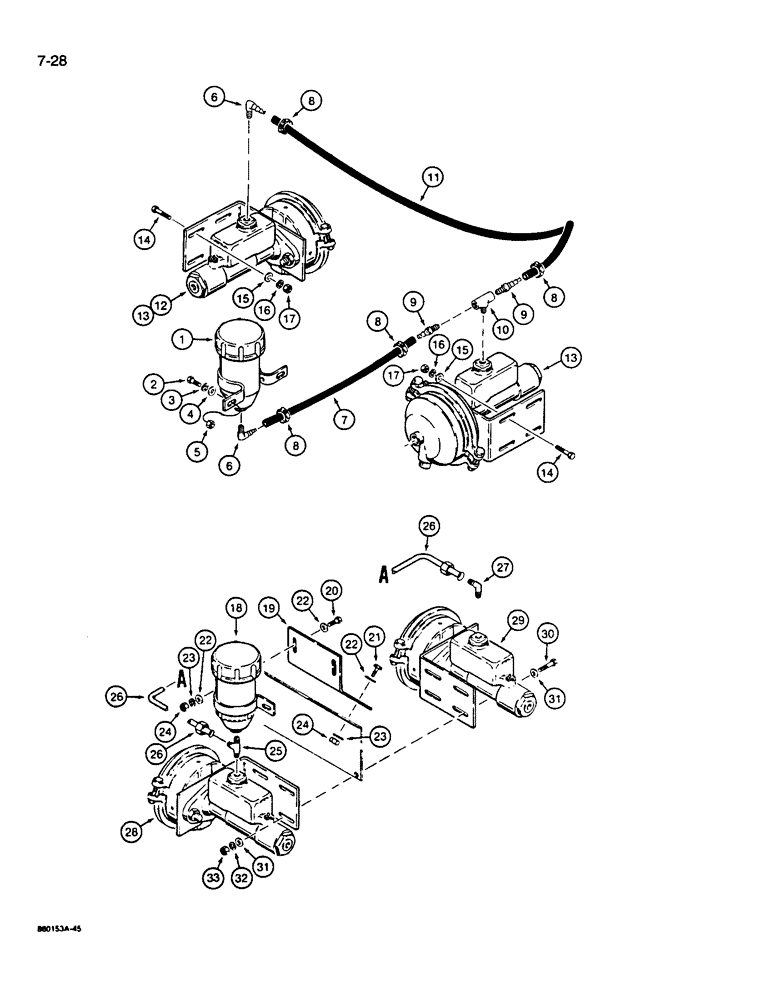

Запчасти Case W14B (7-28) - BRAKE SYSTEM, FLUID RESERVOIR TO BRAKE ACTUATORS, UNITS TRANSMISSION MOUNTED PARKING BRAKE (07) - BRAKES

1

L114928

RESERVOIR ASSY.

RESERVOIR - brake fluid, parts list Figure 7-54

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

195-104

WASHER,3/8"

- flat, , plated 3/8"

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

6

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

BARB FITTING - 90 degree

2шт.

7

L109425

HOSE,0.25" ID x 4.13"

- 1/4" (6 mm) ID x 4-3/4" (121 mm) long, actuator supply, cut from L109194 hose, see below

1шт.

8

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

4шт.

9

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

BARB FITTING - straight

2шт.

10

217-1141

TEE,1/4"-18 Female x 1/4"-18 Male Br

- 1/4" NPT

1шт.

11

L116779

HOSE,6.35 mm ID x 610.00 mm

Actuator Supply 6.35 mm ID x 610.00 mm

1шт.

12

L117713

MASTER CYLINDER

BRAKE ACTUATOR ASSEMBLY - parts list Figure 7-38

1шт.

13

L113007

CYLINDER

BRAKE ACTUATOR ASSEMBLY - parts list Figure 7-36

1-2шт.

14

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

15

195-104

WASHER,3/8"

- flat, , plated 3/8"

4шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

18

L114928

RESERVOIR ASSY.

RESERVOIR - brake fluid, parts list Figure 7-54, units with axle mounted parking brake and two piston rear axle calipers

1шт.

19

L118046

BRACKET

- reservoir support, units with axle mounted parking brake and two piston rear axle calipers

1шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Units with axle mounted parking brake and two piston rear axle calipers

2шт.

21

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, units with axle mounted parking brake and two piston rear axle calipers

2шт.

22

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), Units with axle mounted parking brake and two piston rear axle calipers 3/8"

6шт.

23

492-11038

LOCK WASHER,3/8"

units with axle mounted parking brake and two piston rear axle calipers 3/8"

4шт.

24

425-106

NUT,3/8"-16, Cl 5

Units with axle mounted parking brake and two piston rear axle calipers 3/8"-16, G5

4шт.

25

L118050

TEE

- special, units with axle mounted parking brake and two piston rear axle calipers

1шт.

26

L118039

TUBE ASSY.,6.35 mm OD x 234, 77 mm L

TUBE - brake fluid, units with axle mounted parking brake and two piston rear axle calipers

1шт.

27

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, units with axle mounted parking brake and two piston rear axle calipers

1шт.

28

L117713

MASTER CYLINDER

BRAKE ACTUATOR ASSEMBLY - parts list Figure 7-38, units with axle mounted parking brake and two piston rear axle calipers

1шт.

29

L113007

CYLINDER

BRAKE ACTUATOR ASSEMBLY - parts list Figure 7-36, units with axle mounted parking brake and two piston rear axle calipers

1шт.

30

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch, Units with axle mounted parking brake and two piston rear axle calipers

2шт.

31

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), Units with axle mounted parking brake and two piston rear axle calipers 3/8"

4шт.

32

492-11038

LOCK WASHER,3/8"

units with axle mounted parking brake and two piston rear axle calipers 3/8"

2шт.

33

425-106

NUT,3/8"-16, Cl 5

Units with axle mounted parking brake and two piston rear axle calipers 3/8"-16, G5

2шт.

L109194

HOSE

- 1/4" (6 mm) ID x 25" (635 mm) long, use to make item 7, units with axle mounted parking brake and two piston rear axle calipers

1шт.
