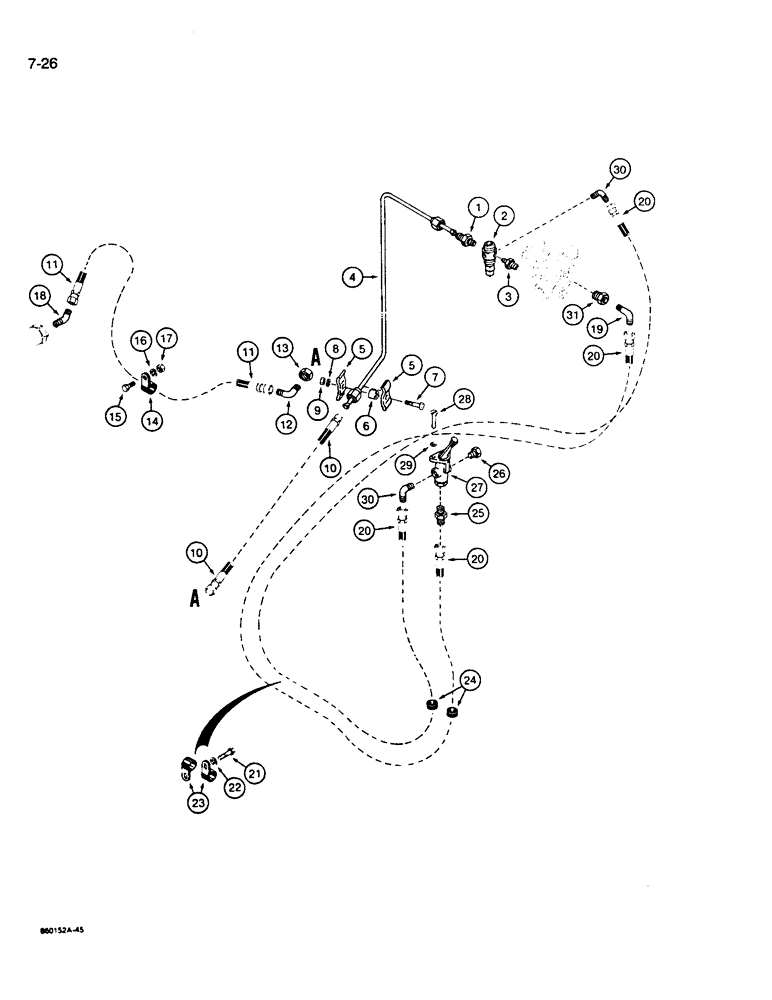

Запчасти Case W14B (7-26) - BRAKE SYSTEM, TREADLE VALVE TO CLUTCH CUTOUT (07) - BRAKES

1

217-1071

HYD CONNECTOR,1/4" - 18NPTF x 1/8" - 27 NPTF

ADAPTER - straight

1шт.

2

L109922

VALVE

ASSEMBLY - pilot, parts list Figure 7-44

1шт.

3

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Adapter, Straight 9/16"-18, 37º x 1/8"-27, NPTF

1шт.

4

L115294

TUBE,9.53 mm OD

- to clutch cutout

1шт.

5

L118467

CLAMP

- tube

2шт.

6

G11271

SPACER

- tube clamp

1шт.

7

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

9

9635082

NUT,5/16" - 18, Gr 5

1шт.

10

L113979

HOSE ASSY.

HOSE - 21-3/4" (554 mm) long, clutch cutout

1шт.

11

L116932

HOSE,6.35 mm ID x 750.00 mm, SAE 1402-A

to Clutch Cutout Cylinder 6.35 mm ID x 750.00 mm, SAE 1402-A

1шт.

12

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

1шт.

13

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, 9/16" - 18 NF

1шт.

14

NLS

NO LONGER SERVICED

- hose

1шт.

15

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

18

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

- 45 degree

1шт.

19

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, replaces 45 degree elbow used in some applications

1шт.

20

L114603

AIR HOSE,6.35 mm ID x 1500.00 mm, SAE J1402C Type A

Air, Clutch Cutout Control 6.35 mm ID x 1500.00 mm, SAE J1402C Type A

2шт.

21

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

23

S98801

CLAMP

- hose

2шт.

24

L103297

GROMMET,5/8" ID x 7/8" Groove Dia, Str Cut

- hose

2шт.

25

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight

1шт.

26

221-1849

PLUG

- hex socket head, 1/8" NPT

1шт.

27

L12630

LOCK VALVE

CONTROL VALVE ASSEMBLY - clutch cutout, parts list Figure 7-44

1шт.

28

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 1/2"

2шт.

29

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

30

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree

2шт.

31

221-1055

REDUCER,Hex, 1/2" x 1/4" NPT

- 1/2" x 1/4" NPT

1шт.
