Запчасти Case W14B (7-24) - BRAKE SYSTEM, TREADLE VALVE TO PARKING BRAKE ACTUATOR AND CONTROL (07) - BRAKES

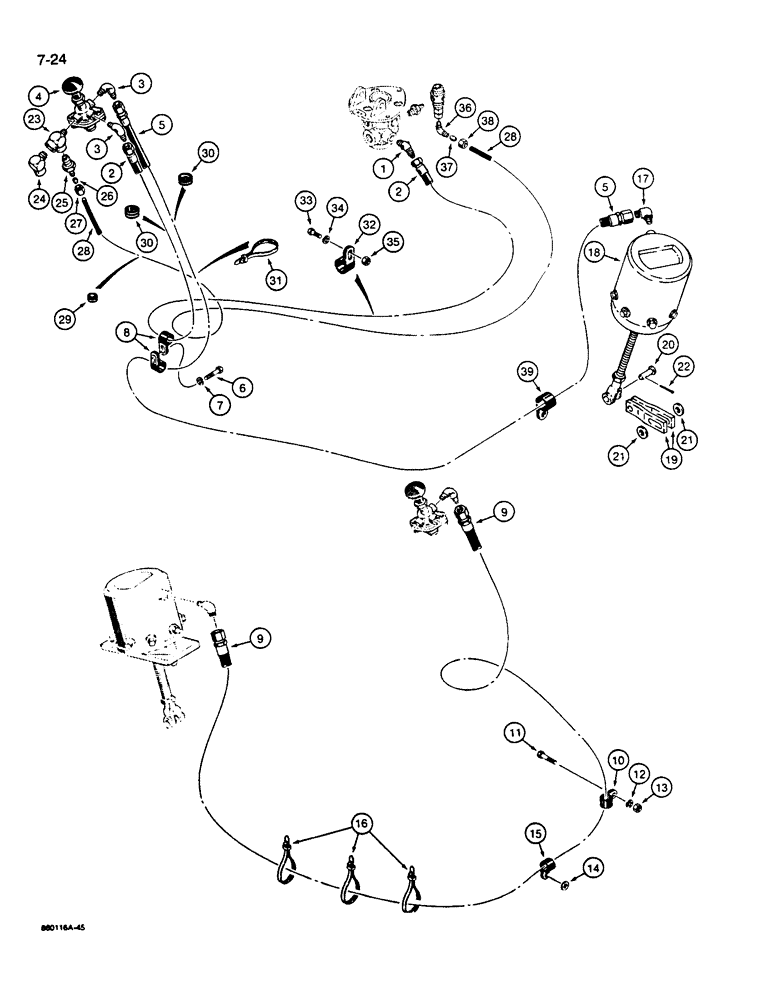

Схема запчастей Case W14B - (7-24) - BRAKE SYSTEM, TREADLE VALVE TO PARKING BRAKE ACTUATOR AND CONTROL (07) - BRAKES

Артикул

Название

Примечание

Количество

1

218-1092

ELBOW,45 Degree, 7/16-20" NPTF x 1/4"-18 37 Degree

- 45 degree

1шт.

2

L114603

AIR HOSE,6.35 mm ID x 1500.00 mm, SAE J1402C Type A

Parking Brake Control Supply 6.35 mm ID x 1500.00 mm, SAE J1402C Type A

1шт.

3

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree

2шт.

4

L103834

VALVE

ASSEMBLY - parking brake, parts list Figure 7-42

1шт.

5

L71229

HOSE ASSY.,0.25" ID x 92.00", SAE J1402C Type A

HOSE ASSY, 0.25" ID x 92.00", SAE J1402C, Type A, To Parking Brake Actuator, Used With Axle-Mounted Parking Brake

1шт.

6

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

S98801

CLAMP

- hose

2шт.

9

L114577

HOSE,6.35 mm ID x 3100.00 mm, SAE 1402-A

to Parking Brake Actuator, Used with Transmission Mounted Parking Brake 6.35 mm ID x 3100.00 mm, SAE 1402-A

1шт.

10

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- hose, used with L114577 hose

1шт.

11

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Used with L114577 hose Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Used with L114577 hose 3/8"

1шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Used with L114577 hose 3/8"-16, G5

1шт.

14

195-103

WASHER,5/16"

- flat, , plated, used with L114577 hose 5/16"

1шт.

15

D128685

CLAMP

- hose, used with L114577 hose

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

17

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree

1шт.

18

REF

INSTRUCTION

ACTUATOR ASSEMBLY - parking brake, see figure 7-40 for correct actuator assembly and components

1шт.

19

L108528

LINK

- parking brake

2шт.

20

141-5

CLEVIS PIN,7/16" x 1.190"

- 7/16"

1шт.

21

195-105

WASHER,7/16"

- flat, , plated 7/16"

2шт.

22

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

23

217-1250

TEE,1/4"-18 Female x 1/8"-27 Male Run

- special

1шт.

24

L117621

ELBOW

- special, 90 degree

1шт.

222-2630

FITTING,7/16"-24 x 1/4" NPT, Comp

ADAPTER - straight, compression fitting, Includes: Ref. 25 - 27

1шт.

25

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

26

222-2610

SLEEVE

- compression fitting

1шт.

27

222-2600

NUT

NUT - compression fitting

1шт.

28

L100713

TUBE,0.25" OD x 66" L

- 1/4" (6 mm) O.D. x 66" (1676 mm) long, parking brake valve to pilot valve, see Parts Substitution List for bulk tube options

1шт.

29

L103493

GROMMET

- hose, small

1шт.

30

L103297

GROMMET,5/8" ID x 7/8" Groove Dia, Str Cut

- hose, large

2шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

32

S98801

CLAMP

- hose

1шт.

33

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

34

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

35

9635082

NUT,5/16" - 18, Gr 5

1шт.

222-2640

ELBOW,90 Degree, 7/16"-24 x 1/8" NPT, Comp

- 90 degree, compression fitting, replaces straight fitting used in some applications, Includes: Ref. 36 - 38

2шт.

36

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

37

222-2610

SLEEVE

- compression fitting

1шт.

38

222-2600

NUT

NUT - compression fitting

1шт.

39

49771

CLAMP

- hose, uses existing hardware

1шт.
