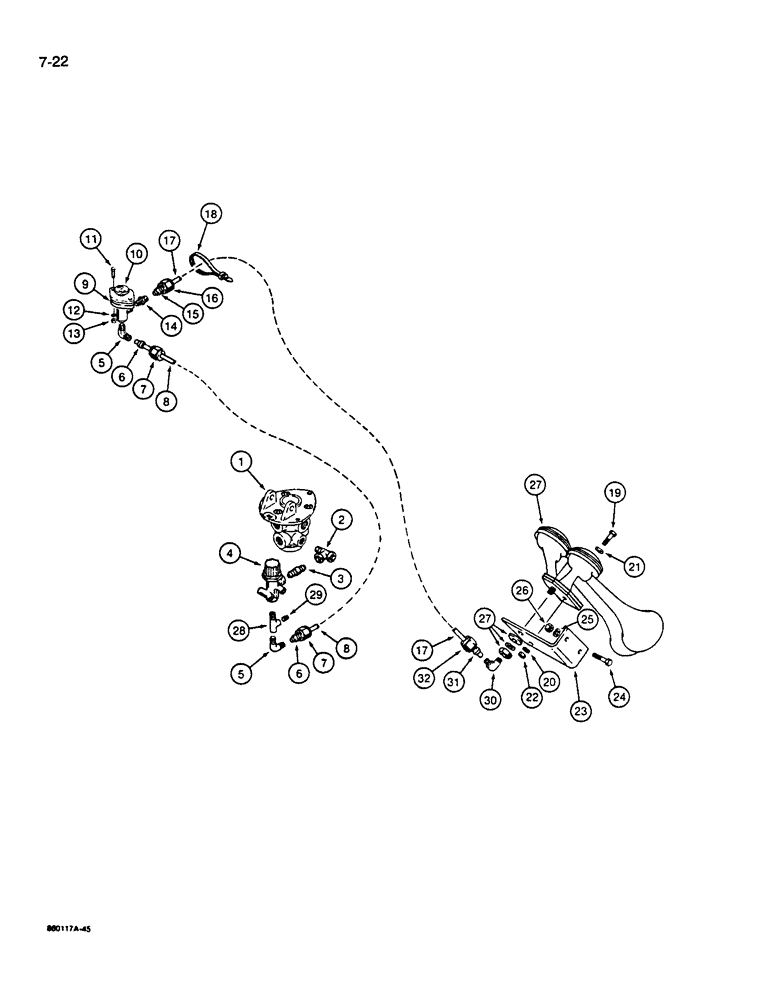

Запчасти Case W14B (7-22) - BRAKE SYSTEM, TREADLE TO HORN (07) - BRAKES

1

L117359

VALVE

ASSEMBLY - brake treadle, parts list figure 7-34

1шт.

2

217-1062

TEE,1/8" - 18 Female x 1/4" - 18 Male Run

- 1/4" NPT

1шт.

3

221-1131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - 1/4" NPT x 1"

1шт.

4

L13530

VALVE

ASSEMBLY - pressure protection, parts list Figure 7-48

1шт.

222-2645

ELBOW,90 Degree, 7/16"-24 x 1/4" NPT, Comp

- 90 degree, compression fitting, Includes: Ref. 5 - 7

2шт.

5

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

6

222-2610

SLEEVE

- compression fitting

1шт.

7

222-2600

NUT

NUT - compression fitting

1шт.

8

L16535

TUBE,0.25" OD x 20.5" L

- 1/4" (6 mm) x O.D. x 20-1/2" (521 mm) long, to horn valve

1шт.

9

L114090

SPACER

- horn valve

1шт.

10

L12647

VALVE

ASSEMBLY - horn, parts list Figure 7-48

1шт.

11

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , If used 1/4"

2шт.

13

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, plated

2шт.

222-2625

FITTING,7/16"-24 x 1/8" NPT, Comp

- compression, straight, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

15

222-2610

SLEEVE

- compression fitting

1шт.

16

222-2600

NUT

NUT - compression fitting

1шт.

17

L51498

TUBE,0.25" OD x 46" L

- 1/4" (6 mm) x O.D. x 46" (1168 mm) long

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

19

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

20

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , If used 1/4"

1шт.

21

195-102

WASHER,1/4"

- flat, , plated 1/4"

1шт.

22

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

23

L48196

BRACKET

- horn mounting, if used

1шт.

24

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

If used Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , If used 3/8"

2шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , If used 3/8"-16, G5

2шт.

27

L76560

HORN

ASSEMBLY - air, parts list Figure 7-50

1шт.

28

217-1062

TEE,1/8" - 18 Female x 1/4" - 18 Male Run

- 1/4" NPT, if used

1шт.

29

221-841

PLUG

- square head, 1/4" NPT, if used

1шт.

222-2640

ELBOW,90 Degree, 7/16"-24 x 1/8" NPT, Comp

FITTING - compression, 90 degree, Includes: Ref. 30 - 32

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

31

222-2610

SLEEVE

- compression fitting

1шт.

32

222-2600

NUT

NUT - compression fitting

1шт.
