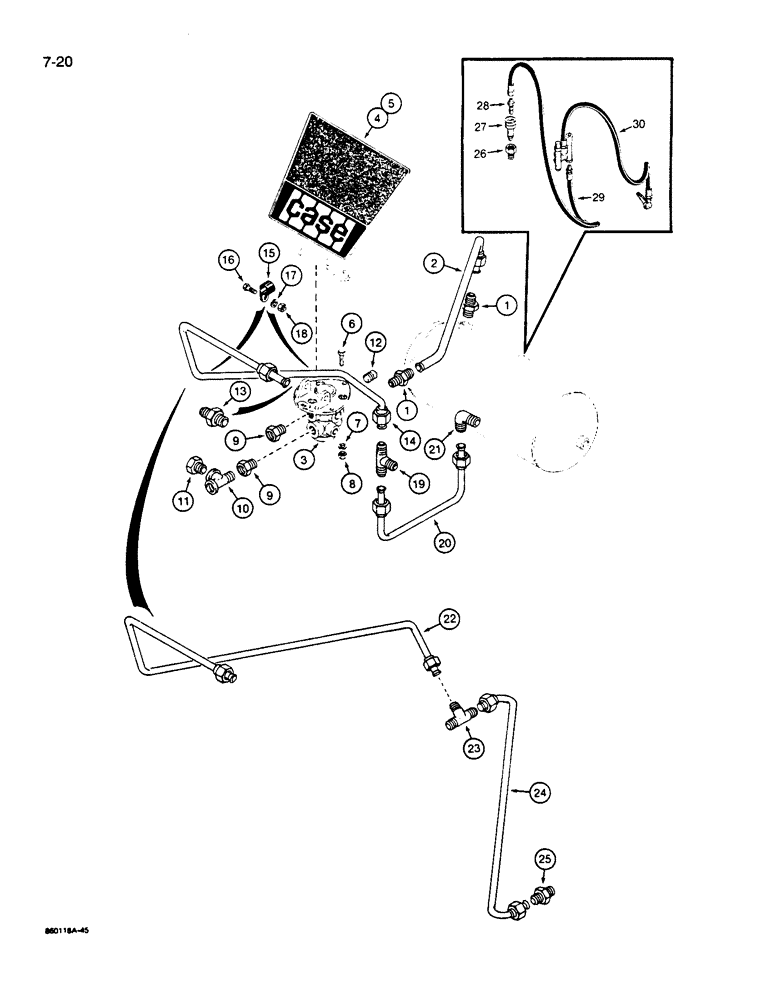

Запчасти Case W14B (7-20) - BRAKE SYSTEM, FRONT RESERVOIR TO TREADLE AND ACTUATORS, AND TIRE INFLATION KIT (07) - BRAKES

1

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight

2шт.

2

L115292

TUBE,15.88 mm OD

- treadle supply

1шт.

3

L117359

VALVE

ASSEMBLY - brake treadle, parts list figure 7-34

1шт.

4

L117061

VALVE

PEDAL - brake

1шт.

5

L117206

PAD

- brake pedal

1шт.

6

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

8

9635082

NUT,5/16" - 18, Gr 5

3шт.

9

221-1055

REDUCER,Hex, 1/2" x 1/4" NPT

- 1/2" x 1/4" NPT

2шт.

10

217-1062

TEE,1/8" - 18 Female x 1/4" - 18 Male Run

- 1/4" NPT

1шт.

11

221-1051

REDUCER,Hex, 1/4" x 1/8" NPT

- 1/4" x 1/8" NPT

1шт.

12

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head, 1/2" NPT

1шт.

13

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight

1шт.

14

L118031

TUBE,12.7 mm OD

- brake actuator supply, used with axle mounted parking brake

1шт.

15

49838

CLAMP

- tube

2шт.

16

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

19

218-554

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Br

- male, used with axle mounted parking brake

1шт.

20

L118037

TUBE,12.7 mm OD x 234, 129 mm L

- crossover, used with axle mounted parking brake

1шт.

21

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degree, used with axle mounted parking brake

1шт.

22

L115296

TUBE,12.7 mm OD

- brake actuator supply, used with transmission mounted parking brake

1шт.

23

218-614

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Run

Male, Used with transmission mounted parking brake 3/4"-16, 37º x 3/8"-18, NPTF Run

1шт.

24

L113313

TUBE ASSY.,12.7 mm OD x 585, 572.3 mm L

TUBE - crossover, used with transmission mounted parking brake

1шт.

25

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight, used with transmission mounted parking brake

1шт.

26

217-1012

ADAPTER,1/4" - 18 Male NPTF x 3/8" - 18 Female NPTF

- straight, 1/4" NPT x 3/8" NPT

1шт.

27

L13978

VALVE

COUPLER - adapter, female, tire inflation kit, if used

1шт.

28

L13979

COUPLING

COUPLER - adapter, male, tire inflation kit, if used

1шт.

29

L15274

HOSE

- 340" (8636 mm) long, tire inflation kit, if used

1шт.

30

L113543

SET OF PARTS

GAUGE - air pressure, tire inflation kit, if used

1шт.
