Запчасти Case W14B (7-18) - BRAKE SYSTEM, REAR RESERVOIR TO HYDRAULIC TANK AND FRONT RESERVOIR (07) - BRAKES

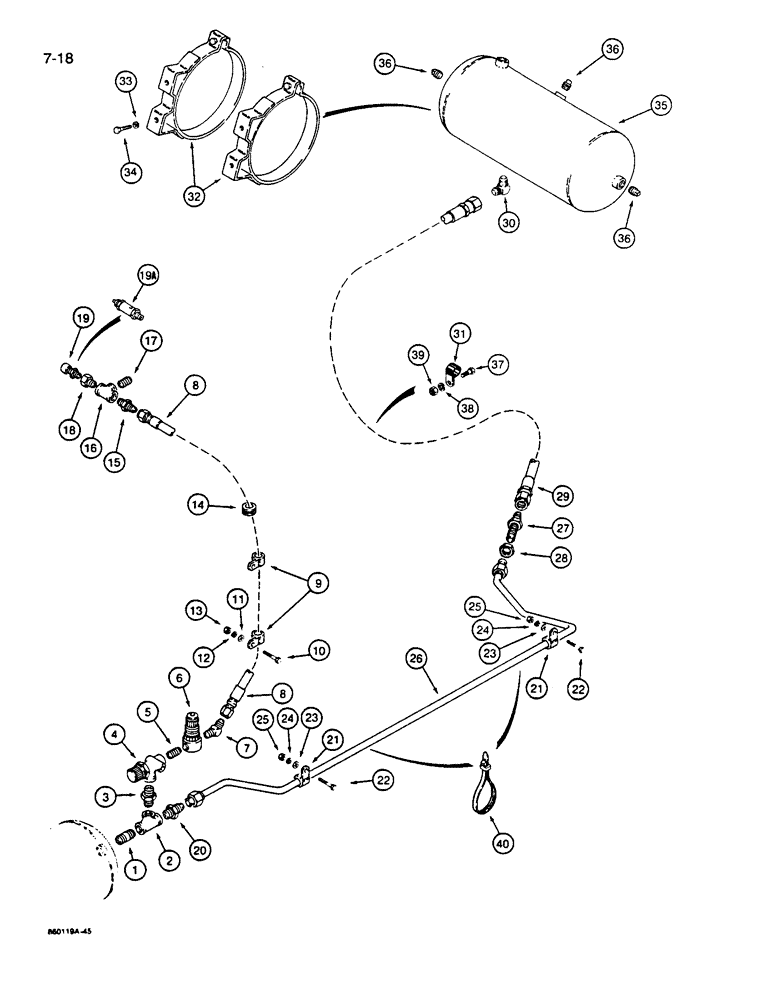

Схема запчастей Case W14B - (7-18) - BRAKE SYSTEM, REAR RESERVOIR TO HYDRAULIC TANK AND FRONT RESERVOIR (07) - BRAKES

Артикул

Название

Примечание

Количество

1

221-1161

LUBE NIPPLE

NIPPLE - 3/8" NPT x 1-1/2"

1шт.

2

221-1423

TEE,Pipe, 3/8" NPT

- 3/8" NPT

1шт.

3

217-1083

HYD CONNECTOR,3/8" - 18 NPTF x 1/4" - 18 NPTF

CONNECTOR - straight

1шт.

4

L13530

VALVE

ASSEMBLY - pressure protection, parts list Figure 7-48

1шт.

5

221-1131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - 1/4" NPT x 1"

1шт.

6

L112300

VALVE

ASSEMBLY - pressure reducing, brake, parts list Figure 7-46

1шт.

7

218-1092

ELBOW,45 Degree, 7/16-20" NPTF x 1/4"-18 37 Degree

- 45 degree

1шт.

8

L103355

HOSE,0.25" ID x 50.00", SAE J1402C Type A

Air Gauge 0.25" ID x 50.00", SAE J1402C Type A

1шт.

9

49885

CLAMP

- hose

2шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

11

195-104

WASHER,3/8"

- flat, , plated 3/8"

1шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

14

L116914

GROMMET

- hose

1шт.

15

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - straight

1шт.

16

221-422

TEE,Pipe, 1/4" NPT

- 1/4" NPT

1шт.

17

221-1131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - 1/4" NPT x 1"

1шт.

18

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- 1/4" x 1/8" NPT, no longer used

1шт.

Refs. with an asterisk must be replaced by Ref. 19A.

1шт.

19

D38663

VENT

RELIEF VALVE - hydraulic tank, no longer used

1шт.

Refs. with an asterisk must be replaced by Ref. 19A.

1шт.

19a

L55268

VALVE

- relief, hydraulic tank

1шт.

20

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight

1шт.

21

49838

CLAMP

- tube

1-2шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", zinc plated

1-2шт.

23

495-21044

WASHER,3/8"

1-2шт.

24

492-11038

LOCK WASHER,3/8"

1-2шт.

25

425-106

NUT,3/8"-16, Cl 5

1-2шт.

26

L118221

TUBE,12.7 mm OD

- from air reservoir, rear, to front reservoir

1шт.

27

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight, bulkhead

1шт.

28

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

1шт.

29

L118466

HOSE ASSY.

HOSE - 46-1/2" (1184 mm) long, main air supply

1шт.

30

218-1055

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/4"-18, NPTF

- 90 degree

1шт.

31

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose

1шт.

32

L110438

SUPPORT

BRACKET - air reservoir

2шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

34

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

35

L57152

RESERVOIR ASSY.

RESERVOIR - air, front

1шт.

36

221-841

PLUG

- square head, 1/4" NPT

3шт.

37

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

38

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

39

9635082

NUT,5/16" - 18, Gr 5

1шт.

40

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

Выбрано товаров: 43
