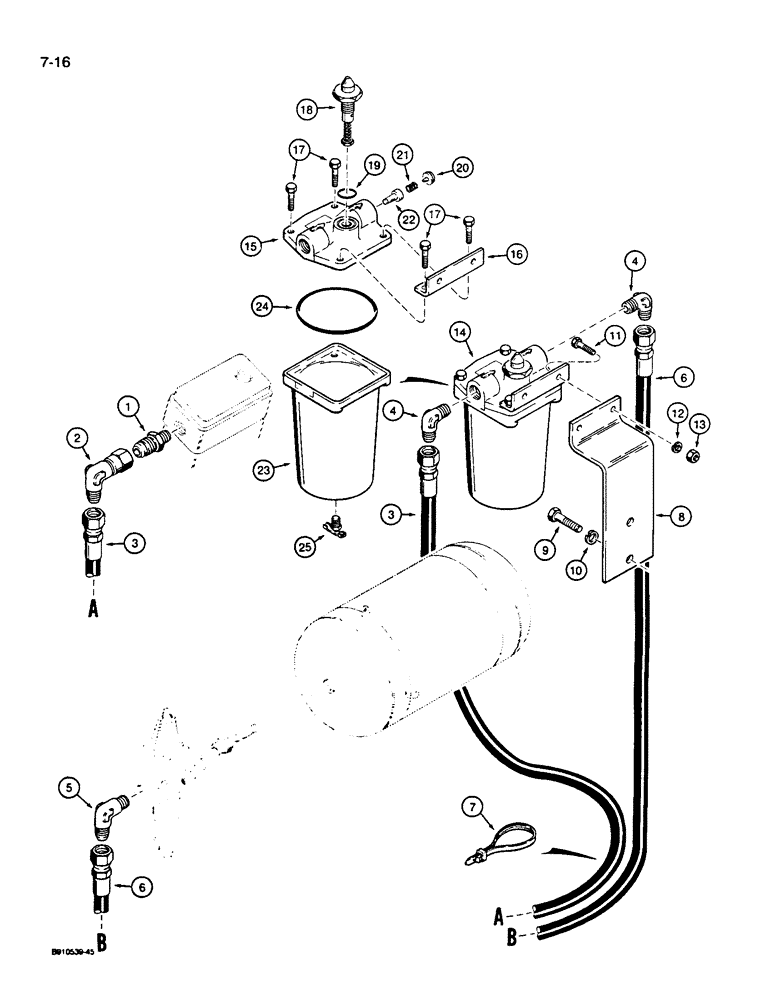

Запчасти Case W14B (7-16) - ALCOHOL EVAPORATOR (07) - BRAKES

1

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 3/4-16 flare x 1/2 inch PT

1шт.

Components of L36325 Alcohol Evaporator Kit. Individual Refs. must be ordered to obtain all necessary parts of this kit. Also, order Form No. Bur 8-76880 instruction sheet to provide the necessary installation instructions.

1шт.

2

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare

1шт.

Components of L36325 Alcohol Evaporator Kit. Individual Refs. must be ordered to obtain all necessary parts of this kit. Also, order Form No. Bur 8-76880 instruction sheet to provide the necessary installation instructions.

1шт.

3

L116367

A/C HOSE,12.70 mm ID x 2438.00 mm

HOSE , Air compressor to inlet side of alcohol evaporator 12.70 mm ID x 2438.00 mm

1шт.

Components of L36325 Alcohol Evaporator Kit. Individual Refs. must be ordered to obtain all necessary parts of this kit. Also, order Form No. Bur 8-76880 instruction sheet to provide the necessary installation instructions.

1шт.

4

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 3/4-16 flare x 1/2 inch PT

2шт.

Components of L36325 Alcohol Evaporator Kit. Individual Refs. must be ordered to obtain all necessary parts of this kit. Also, order Form No. Bur 8-76880 instruction sheet to provide the necessary installation instructions.

1шт.

5

218-1056

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

- 90 degree, 3/4-16 flare x 3/4 inch PT

1шт.

6

L127675

HOSE,12.7 mm ID x 1830.00 mm

Outlet Side of Alcohol Evaporator to Unloading Valve 12.7 mm ID x 1830.00 mm

1шт.

Components of L36325 Alcohol Evaporator Kit. Individual Refs. must be ordered to obtain all necessary parts of this kit. Also, order Form No. Bur 8-76880 instruction sheet to provide the necessary installation instructions.

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

10шт.

Components of L36325 Alcohol Evaporator Kit. Individual Refs. must be ordered to obtain all necessary parts of this kit. Also, order Form No. Bur 8-76880 instruction sheet to provide the necessary installation instructions.

1шт.

8

L127332

BRACKET

- mounting, alcohol evaporator

1шт.

Components of L36325 Alcohol Evaporator Kit. Individual Refs. must be ordered to obtain all necessary parts of this kit. Also, order Form No. Bur 8-76880 instruction sheet to provide the necessary installation instructions.

1шт.

9

814-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 20 mm

2шт.

Components of L36325 Alcohol Evaporator Kit. Individual Refs. must be ordered to obtain all necessary parts of this kit. Also, order Form No. Bur 8-76880 instruction sheet to provide the necessary installation instructions.

1шт.

10

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

Components of L36325 Alcohol Evaporator Kit. Individual Refs. must be ordered to obtain all necessary parts of this kit. Also, order Form No. Bur 8-76880 instruction sheet to provide the necessary installation instructions.

1шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

Components of L36325 Alcohol Evaporator Kit. Individual Refs. must be ordered to obtain all necessary parts of this kit. Also, order Form No. Bur 8-76880 instruction sheet to provide the necessary installation instructions.

1шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Components of L36325 Alcohol Evaporator Kit. Individual Refs. must be ordered to obtain all necessary parts of this kit. Also, order Form No. Bur 8-76880 instruction sheet to provide the necessary installation instructions.

1шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC

2шт.

Components of L36325 Alcohol Evaporator Kit. Individual Refs. must be ordered to obtain all necessary parts of this kit. Also, order Form No. Bur 8-76880 instruction sheet to provide the necessary installation instructions.

1шт.

14

L127119

EVAPORATOR

ASSEMBLY - alcohol, Includes: Ref. 15 - 25

1шт.

Components of L36325 Alcohol Evaporator Kit. Individual Refs. must be ordered to obtain all necessary parts of this kit. Also, order Form No. Bur 8-76880 instruction sheet to provide the necessary installation instructions.

1шт.

15

NSS

NOT SOLD SEPARAT

COVER - alcohol evaporator

1шт.

16

NSS

NOT SOLD SEPARAT

BRACKET - mounting, alcohol evaporator

1шт.

17

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1-4 inch

4шт.

18

NSS

NOT SOLD SEPARAT

VALVE - relief

1шт.

19

S302088

SEAL

- special, Serial Range: valve-cover

1шт.

20

S302091

RETAINER

- check valve

1шт.

21

S302090

SPRING

- check valve

1шт.

22

S302089

VALVE, CHECK

VALVE - check

1шт.

23

S302087

RESERVOIR ASSY.

RESERVOIR - alcohol

1шт.

24

S302086

SEAL

- special, Serial Range: reservoir-cover

1шт.

25

217-81

VALVE

- drain, 1/8 inch PT

1шт.
