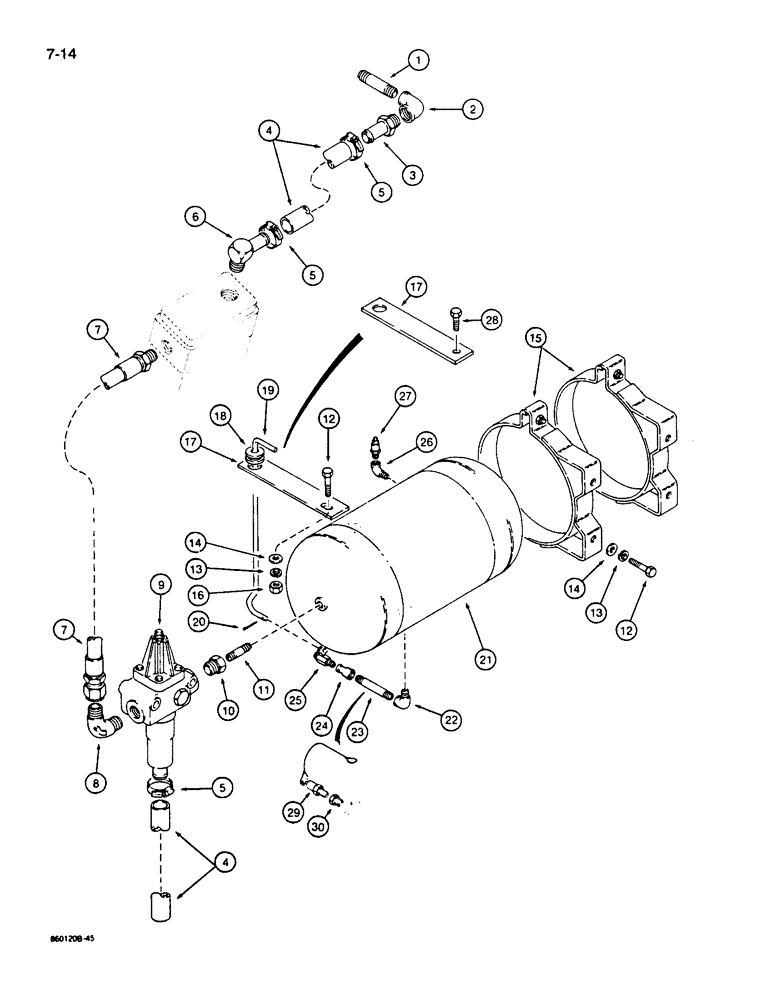

Запчасти Case W14B (7-14) - BRAKE SYSTEM, AIR COMPRESSOR TO REAR RESERVOIR (07) - BRAKES

1

221-1191

PIPE,Nipple, 1/2" NPT x 2 1/2"

NIPPLE - 1/2" NPT x 2-1/2" long

1шт.

2

221-1384

ELBOW,90º, 3/4" x 1/2" NPT

- 90 degree, reducing, 3/4" x 1/2"

1шт.

3

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

STEM FITTING - straight

1шт.

4

L117793

INTAKE AIR HOSE,19.00 mm ID x 241.00 mm, SAE 20R1

Compressor Air Intake and Unloading Valve Outlet, Cut from L116743 bulk hose, See below 19.00 mm ID x 241.00 mm, SAE 20R1

2шт.

5

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hoses

3шт.

6

217-129

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

STEM FITTING - 90 degree

1шт.

7

L52822

HOSE

- 20-1/2" (521 mm) long

1шт.

8

218-1056

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

- 90 degree

1шт.

9

L115645

VALVE

- unloading, parts list Figure 7-52

1шт.

10

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

1шт.

11

221-1161

LUBE NIPPLE

NIPPLE - 3/8" NPT x 1-1/2"

1шт.

12

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", plated

4-5шт.

13

492-11038

LOCK WASHER,3/8"

4-5шт.

14

495-21044

WASHER,3/8"

4-5шт.

15

L110438

SUPPORT

BRACKET - air reservoir

2шт.

16

425-106

NUT,3/8"-16, Cl 5

If used 3/8"-16, G5

1шт.

17

L116460

SUPPORT

- valve handle, if used

1шт.

L116460 support may have a slotted hole or a round hole with a weld nut. For the support with a slotted hole use one each of items 12, 13, 14 and 16 for mounting. For the support with a round hole with a weld nut use one of Ref. 28 for mounting.

1шт.

18

A75994

GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut

- handle, if used

1шт.

19

L116461

ROD

- valve handle, if used

1шт.

20

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , If used 1/8" x 3/4"

1шт.

21

L113897

RESERVOIR

- air, rear

1шт.

22

221-1413

ELBOW,90 Degree, 3/8"-18, NPT

STREET ELBOW - 90 degree, 3/8" NPT

1шт.

23

221-1165

JUNCTION

NIPPLE - 3/8" NPT x 2-1/2", if used

1шт.

24

221-1346

COUPLING,Pipe, 3/8" x 1/4"NPT

- reducer, 3/8" x 1/4" NPT, if used

1шт.

25

L112624

LOCK VALVE

VALVE - drain, air reservoir, if used

1шт.

26

221-1412

ELBOW,90 Degree, 1/4"-27, NPT

Street 90º, 1/4"-27, NPT

1шт.

27

L48992

VALVE,1/4"

- check

1шт.

28

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated, if used

1шт.

29

L126866

BLEEDER VALVE

VALVE - drain, cable pull, air reservoir, if used

1шт.

30

221-1086

REDUCER,3/8" NPT x 1/4" NPT

- 3/8" x 1/4" NPT,if used

1шт.

L116743

INTAKE AIR HOSE,19.00 mm ID x 1260.00 mm, SAE 20R1

use to make Ref. 4 19.00 mm ID x 1260.00 mm, SAE 20R1

1шт.
