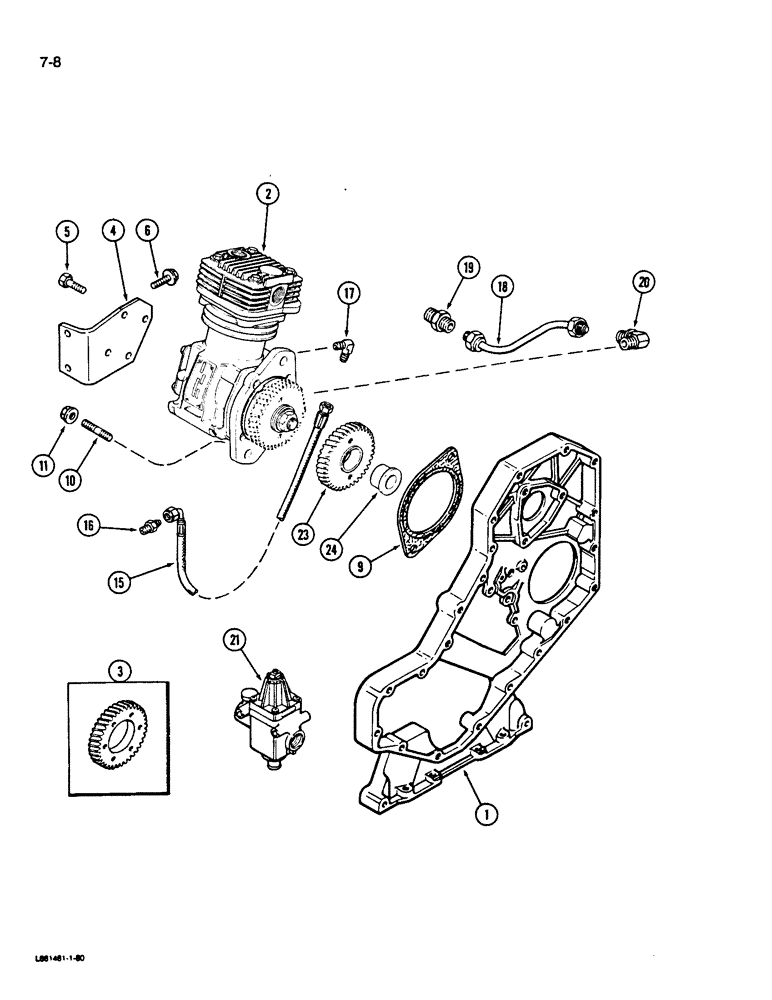

Запчасти Case W14B (7-08) - AIR COMPRESSOR SYSTEM (07) - BRAKES

1

REF

INSTRUCTION

HOUSING - front cover (See Section 2)

1шт.

2

REF

INSTRUCTION

COMPRESSOR ASSEMBLY - air (for correct assembly and components, see Figure 7-10 or 7-12

1шт.

3

J904724

GEAR

- drive

1шт.

4

J911210

SUPPORT

BRACKET - compressor support (Replaces L118059)

1шт.

5

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, M8 x 1.25 x 20 mm

4шт.

6

845-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 8.8

2шт.

9

A77441

GASKET

- compressor mounting

1шт.

10

J913370

STUD

- compressor mounting

2шт.

11

829-2312

FLANGE NUT,M12 x 1.75, Flg, Cl 10

- hex flange, 12 mm - 1.75, class 10

2шт.

15

J911705

HOSE

ASSEMBLY - oil (Replaces J906666)

1шт.

16

222-901

HYD CONNECTOR,7/16"-20 45 Degree Fl x 1/8" NPT

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT

1шт.

17

A77512

ELBOW

- adapter, male

1шт.

18

J904723

TUBE,12.7 mm OD x 127.4, 106.9 mm L

ASSEMBLY - compressor drain

1шт.

A77515

GASKET

GROMMET - drain tube

2шт.

19

A77513

UNION

CONNECTOR - straight, 13/16-18 thread x 1/2 inch PT

1шт.

20

A77517

UNION

ELBOW - 90 degree, 13/16-18 thread x 1/2 inch PT

1шт.

21

L115645

VALVE

- pressure regulator

1шт.

J909381

GEAR

ASSEMBLY - drive, Includes: Ref. 23 and 24

1шт.

23

J902595

GEAR

- drive

1шт.

24

NSS

NOT SOLD SEPARAT

HUB - gear drive

1шт.
