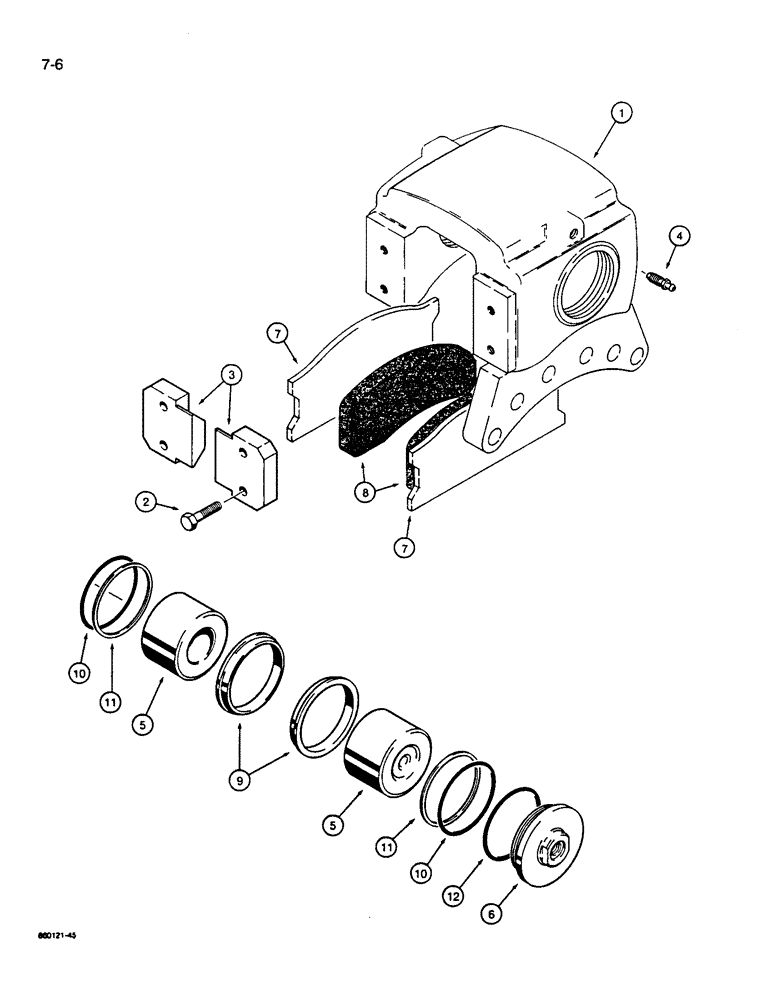

Запчасти Case W14B (7-06) - BRAKE CALIPER - TWO PISTON (07) - BRAKES

L126862

BRAKE ASSY.

CALIPER ASSEMBLY - brake, replaces L116035 caliper assembly, Includes: Ref. 1 - 12

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - caliper

1шт.

2

113-2618

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8, Full Thd

Hex, 5/8"-11 x 1 1/2", G8

8шт.

3

N7962

PLATE

- lining retaining

4шт.

4

N7966

BLEEDER

VALVE - bleeder

2шт.

5

N7963

PISTON

- brake

2шт.

6

N7965

COVER

HEAD - piston

2шт.

S300098

SET

KIT - brake shoe and lining, replaces N13541, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

SHOE - brake

2шт.

8

NSS

NOT SOLD SEPARAT

LINING - brake

2шт.

N7964

SEAL KIT

KIT - seal, brake caliper, Includes: Ref. 9 - 12

1шт.

9

NSS

NOT SOLD SEPARAT

WIPER - piston

2шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston

2шт.

11

NSS

NOT SOLD SEPARAT

BACKUP RING - piston O-ring

2шт.

12

NSS

NOT SOLD SEPARAT

O-RING - head

1шт.
