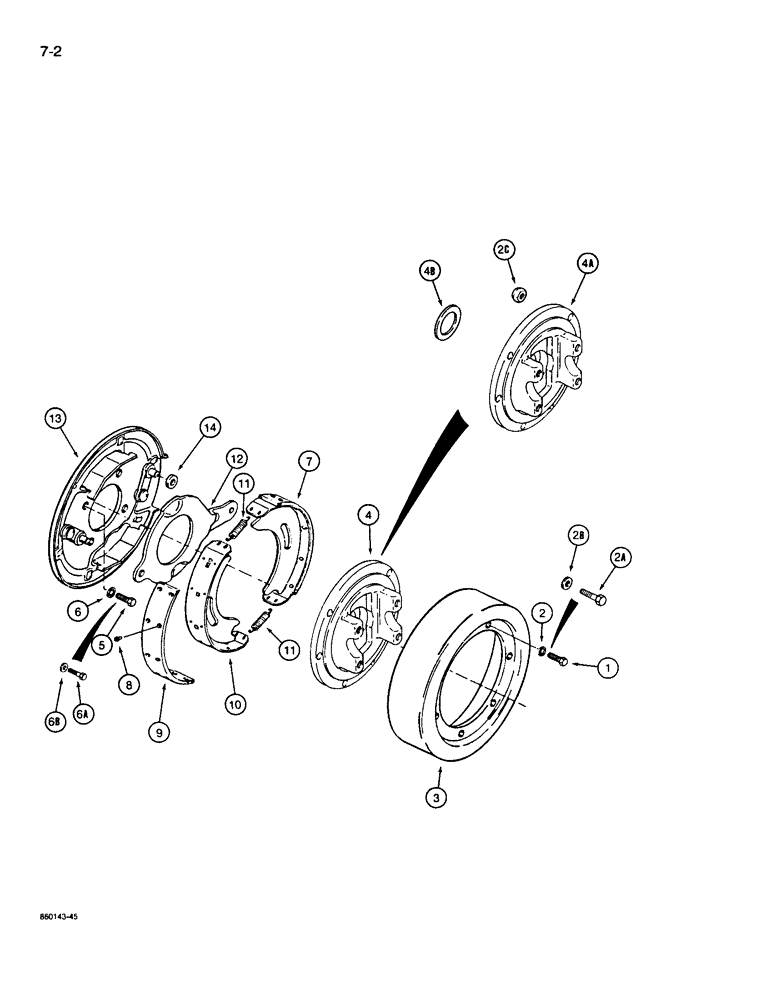

Запчасти Case W14B (7-02) - PARKING BRAKE (07) - BRAKES

L117958

AXLE

ASSEMBLY - front, with parking brake, parts list figures 6-48 - 6-52 and parts below as described, Includes: Ref. 1 - 14

1шт.

L116662

TRANSMISSION

ASSEMBLY - forward and reverse, with parking brake parts list Figures 6-10 - 6-40 and parts below as described, Includes: Ref. 1 - 14

1шт.

1

114-209

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- hex head, 3/8" - 24 NF x 3/4", used with L116662 transmission

6шт.

2

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Used with L116662 transmission 3/8"

6шт.

2a

25005R1

BOLT,Hex, 3/8" - 24 x 1 1/4", Gr 8

- hex head, 3/8" - 24 NF x 1-1/4", grade 8, phosphate coated, used with L117958 axle

6шт.

2b

N13566

WASHER

- special, used with L117958 axle

6шт.

2c

131-1133

NUT,3/8"-24, GC

NUT - hex, self-locking, 3/8" - 24 NF, plated, used with L117958 axle

6шт.

3

A17982

DRUM

- parking brake

1шт.

4

N13330

FLANGE

- brake drum, used with L116662 transmission

1шт.

4a

N13565

FLANGE

- brake drum, used with L117958 axle

1шт.

4b

L33675

SPACER

WASHER - thrust, used with N13565 flange

1шт.

5

113-514

BOLT,Hex, 9/16" - 12 x 1", Gr 5, Full Thd

Used with L33577 brake assembly Hex, 9/16"-12 x 1", G5, Full Thd

4шт.

6

193-33

LOCK WASHER,9/16"

WASHER - lock, internal tooth, , used with L33577 brake assembly 9/16"

4шт.

6a

26-716

BOLT,Hex, 7/16" - 14 x 1", Gr 8

- hex head, 7/16" - 14 NC x 1", grade 8, used with N13568 brake assembly

4шт.

6b

D47367

WASHER

- special, used with N13568 brake assembly

4шт.

L33577

BRAKE

ASSEMBLY - parking, used with L116662 transmission, Includes: Ref. 7 - 14

1шт.

N13568

BRAKE ASSEMBLY - parking, used with L117958 axle, individual components must be ordered, see below, Includes: Ref. 7 -14

1шт.

7

A18133

BRAKE SHOE

SHOE AND LINING ASSEMBLY - parking brake

2шт.

8

NSS

NOT SOLD SEPARAT

RIVET -, Serial Range: lining-shoe

10шт.

See Figure 7-24 for parking brake controls.

1шт.

9

NSS

NOT SOLD SEPARAT

LINING - brake shoe

1шт.

See Figure 7-24 for parking brake controls.

1шт.

10

NSS

NOT SOLD SEPARAT

SHOE - parking brake

1шт.

11

N8445

SPRING

- shoe return

2шт.

12

D60994

LEVER

- parking brake actuating, used with L33577 brake assembly

1шт.

12

D47526

LEVER

- parking brake actuating, used with N13568 brake assembly

1шт.

13

L33578

PLATE ASSY.

BACKING PLATE - parking brake, used with L33577 brake assembly

1шт.

13

N13569

LARGE PLATE

BACKING PLATE - parking brake, used with N13568 brake assembly

1шт.

14

L33579

ROLLER

- lever

1шт.

A18136

KIT

- lining and rivet, includes two linings and 20 rivets to service the entire parking brake

1шт.

See Figure 7-24 for parking brake controls.

1шт.
