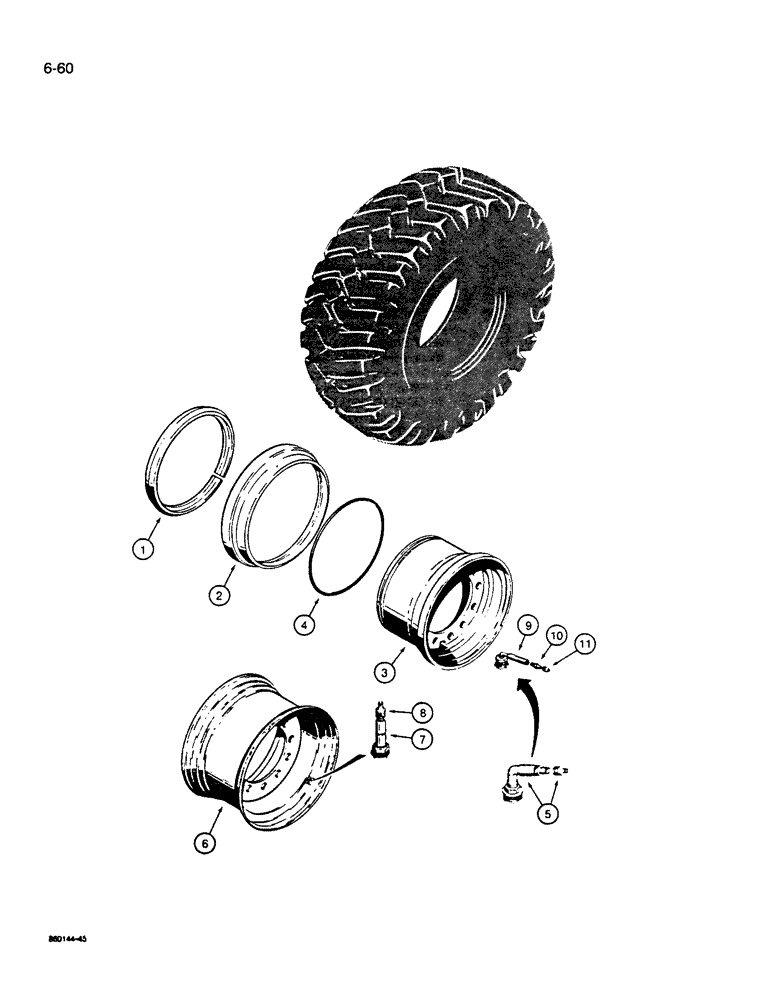

Запчасти Case W14B (6-60) - WHEELS, FOR 13.00 X 24 AND 14.00 X 24 TIRES, FOR 16.9 X 24 (06) - POWER TRAIN

L116678

WHEEL

ASSEMBLY - three piece, Includes: Ref. 1 - 3

4шт.

1

N9902

RING, LOCKING

RING - locking, for wheels stamped with No. W21704-1

1шт.

1

N9904

RING, LOCKING

RING - locking, for wheels stamped with No. B8024TGF

1шт.

2

N9903

RING

- side, for wheels stamped with No. W21704-1

1шт.

2

N9905

RING

- side, for wheels stamped with No. B8024TGF

1шт.

3

NSS

NOT SOLD SEPARAT

RIM - wheel

1шт.

4

A13099

O-RING,22 1" ID x 0.25"

- seal

4шт.

5

L48133

VALVE STEM

- Tubeless tire

4шт.

6

L116679

WHEEL

- one piece, for 16.9 x 24 tires

5шт.

7

A20058

VALVE STEM

VALVE STEM - Tubeless tire, for 16.9 x 24 tires

5шт.

8

L19664

VALVE STEM

CAP - valve, for 16.9 x 24 tires

5шт.

L116680

RIM

WHEEL ASSEMBLY - three piece, no longer available, order L114975 one piece wheel, Ref. 6, Includes: Ref. 1 - 3

4шт.

1

N8338

RING

- locking, for wheels stamped with No. 01115232

1шт.

2

N8337

RING

- side, for wheels stamped with No. 01115232

1шт.

3

NSS

NOT SOLD SEPARAT

RIM - wheel

1шт.

4

A19101

O-RING,6.6mm Thk x 590.55mm ID

- seal

4шт.

9

L11405

VALVE

- tubeless tire

4шт.

10

L11406

ADAPTER

- valve

4шт.

11

L19664

VALVE STEM

CAP - adapter

4шт.

5

L48133

VALVE STEM

- Tubeless tire, no longer used with 15.5 x 25 tires, order L11405 valve, L11406 adapter, and L19664 cap, Refs. 9, 10, and 11, for 15.5 x 25 tires - one piece wheel (new style)

4шт.

6

L114975

RIM

WHEEL - one piece, for 15.5 x 25 tires - one piece wheel (new style)

5шт.

9

L11405

VALVE

- tubeless tire, for 15.5 x 25 tires - one piece wheel (new style)

5шт.

10

L11406

ADAPTER

- valve, for 15.5 x 25 tires - one piece wheel (new style)

5шт.

11

L19664

VALVE STEM

CAP - adapter, for 15.5 x 25 tires - one piece wheel (new style)

5шт.

L116677

WHEEL

ASSEMBLY - three piece, Includes: Ref. 1 - 3

5шт.

1

N8338

RING

- locking, for wheels stamped with No. 0111523701

1шт.

1

A19100

LOCKING RING

RING - locking, for wheels stamped with No. 514695699

1шт.

2

N8337

RING

- side, for wheels stamped with No. 0111523701

1шт.

2

L12685

RING

- side, for wheels stamped with No. 514695699

1шт.

3

NSS

NOT SOLD SEPARAT

RIM - wheel

1шт.

4

A19101

O-RING,6.6mm Thk x 590.55mm ID

- seal

5шт.

9

L11405

VALVE

- tubeless tire

5шт.

10

L11406

ADAPTER

- valve

5шт.

11

L19664

VALVE STEM

CAP - adapter

5шт.
