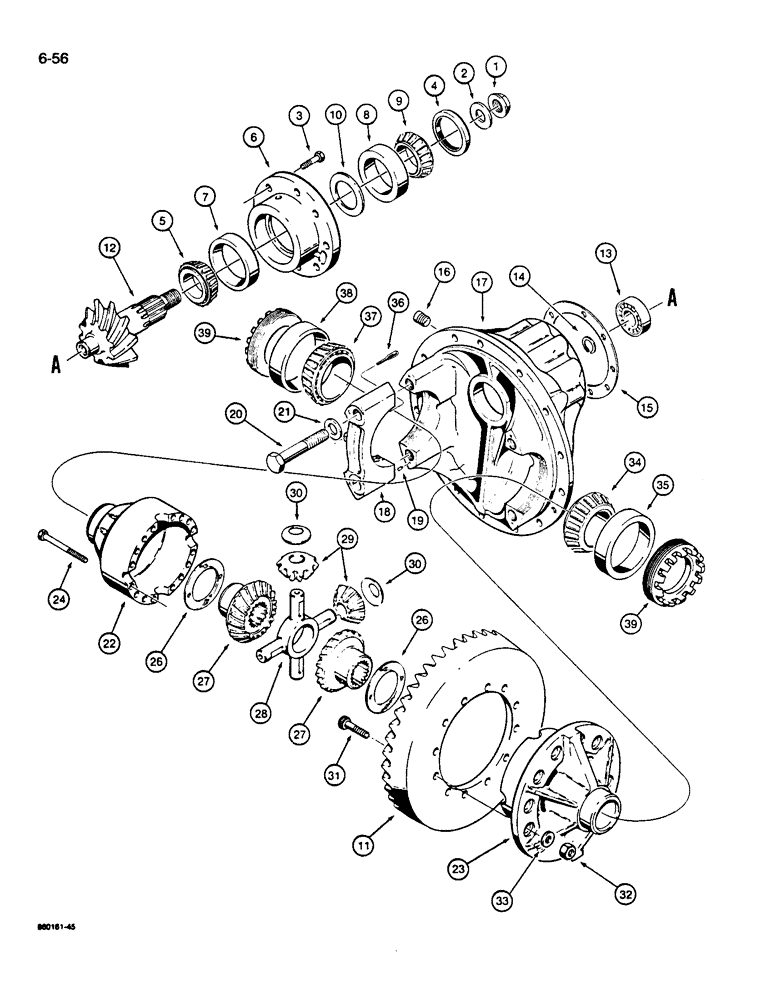

Запчасти Case W14B (6-56) - REAR AXLE DIFFERENTIAL (06) - POWER TRAIN

N13567

CARRIER

DIFFERENTIAL ASSEMBLY - used with L116697 and L127199 rear axles, Includes: Ref. 1 - 39

1шт.

S238640 No-Spin Differential for the front or rear of this unit. Most effective on the rear axle but can be used on the front. DO NOT put no-spin on both front and rear of the same machine, won't be able to steer.

1шт.

1

L35091

NUT

NUT - hex, flange to pinion shaft

1шт.

2

A13124

WASHER

- flat

1шт.

3

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

8шт.

4

D73689

OIL SEAL

OIL SEAL - differential

1шт.

5

R10276

ROLLER BEARING,1.686" ID x 1.1669"

TAPERED ROLLER BEARING - inner

1шт.

D73688

BEARING, ROLLER, CYL

CAGE ASSEMBLY - pinion shaft bearing, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

CAGE - bearing

1шт.

7

R10277

BEARING CUP,3.5" OD x 0.9063"

CUP - tapered roller bearing

1шт.

8

A13161

BEARING CUP,88.5mm OD x 17.46mm W

CUP - tapered roller bearing

1шт.

9

A13160

ROLLER BEARING,1.4375" ID x 0.933"

TAPERED ROLLER BEARING - differential

1шт.

10

D74357

SHIM,.153" Thk

- Spacer, bearing (3.886 mm) .153" Thk

1шт.

10

D74358

SHIM,.154" Thk

- bearing (3.912 mm) .154" Thk

1шт.

10

D74359

SHIM,.155" Thk

- bearing (3.937 mm) .155" Thk

1шт.

10

D74360

SHIM,.156" Thk

Spacer - bearing (3.962 mm) .156" Thk

1шт.

10

D74361

SHIM,.157" Thk

Spacer - bearing (3.988 mm) .157" Thk

1шт.

10

D74362

SHIM,.158" Thk

Spacer - bearing (4.013 mm) .158" Thk

1шт.

10

D74363

SHIM,.164" Thk

Spacer - bearing (4.166 mm) .164" Thk

1шт.

10

D74364

TUBE SPACER

SPACER - bearing, .170" (4.318 mm) thick

1шт.

10

D74365

SPACER

- bearing, .176" (4.470 mm) thick

1шт.

10

D74366

SPACER

- bearing, .182" (4.622 mm) thick

1шт.

D50998

GEAR-SET

GEAR SET - ring and pinion, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR - pinion

1шт.

13

D82783

ROLLER BEARING

BEARING - inner, drive pinion, ball type

1шт.

14

A18199

SNAP RING,#106, Ext

Ring, Snap, , bearing #106, Ext

1шт.

15

L36104

SHIM

- .003" (0.0762 mm)

1шт.

15

L36105

SHIM

- .005" (0.1270 mm)

1шт.

15

L36106

DISC

SHIM - .010" (0.2540 mm)

1шт.

16

221-1035

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - square socket head, 3/4"

1шт.

D73630

SUPPORT

CARRIER AND CAP ASSEMBLY - differential, Includes: Ref. 17 - 21

1шт.

17

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

18

NSS

NOT SOLD SEPARAT

CAP - differential bearing

2шт.

19

A15443

DOWEL

PIN - cap, if used

4шт.

20

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

- hex head, 5/8" - 11 NC x 3-1/2", grade 8

4шт.

21

L30737

WASHER

- special

4шт.

L34022

TRANSMISSION

CASE AND GEAR ASSEMBLY - differential, Includes: Ref. 22 - 30

1шт.

D47347

CASE ASSY.

CASE ASSEMBLY - differential, Includes: Ref. 22 - 24

1шт.

22

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

23

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

24

L34063

BOLT

- special

8шт.

25

391-627

ELECTRICAL WIRE

WIRE - lock, No. 16 x 22", not shown, no longer available, order 391-636, if used, see below

1шт.

26

F9740

WASHER,60.68mm ID x 90.42mm OD x 1.58mm Thk

THRUST WASHER - side gear

2шт.

27

D66304

GEAR

BEVEL GEAR - differential side

2шт.

28

A18181

U-JOINT SPIDER

SPIDER - differential

1шт.

29

A18175

PINION

GEAR - differential

4шт.

30

A18176

DISC

BELLEVILLE SPRING - pinion gear

4шт.

31

A47251

DRIVE SCREW

- special, ring gear to differential case, for service also order 131-1234 nut, Ref. 32

12шт.

32

232-4618

LOCK NUT,1/2"-20, GC

NUT - hex, self-locking, 1/2" - 20 NF

12шт.

33

D47366

WASHER

- hardened

12шт.

34

A18173

ROLLER BEARING

TAPERED ROLLER BEARING - differential

1шт.

35

L35931

BEARING CUP

CUP - tapered roller bearing

1шт.

36

A18196

HARDWARE

COTTER PIN - special

2шт.

37

A26847

ROLLER BEARING,2.5" ID x 0.866"

CONE - bearing, tapered roller

1шт.

38

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, differential

1шт.

39

A18194

RING

- bearing adjusting

2шт.

391-636

ELECTRICAL WIRE

WIRE - bulk, No. 16" x 50", Serial Range: cut-length

1шт.
