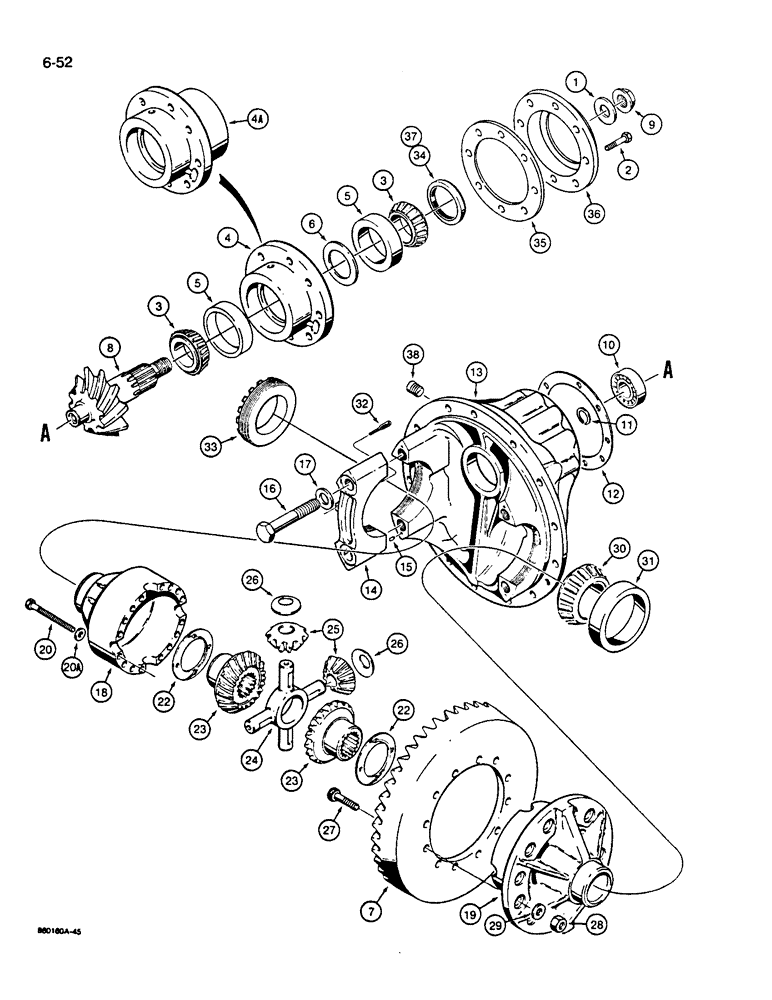

Запчасти Case W14B (6-52) - FRONT AXLE DIFFERENTIALS (06) - POWER TRAIN

N13622

CARRIER

DIFFERENTIAL ASSEMBLY - used with L116696 front axle, Includes: Ref. 1 - 38

1шт.

N13561

CARRIER

DIFFERENTIAL ASSEMBLY - used with L117958 front axle, Includes: Ref. 1 - 38

1шт.

1

A13124

WASHER

- flat

1шт.

2

26-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 8

- hex head, 7/16" - 14 NC x 1-1/2", grade 8

8шт.

3

D71240

ROLLER BEARING,1.75" ID x 3.5" OD x 1.1875"

TAPERED ROLLER BEARING - inner

2шт.

D78484

CAGE ASSY.

CAGE ASSEMBLY - pinion shaft bearing, used with L117958 axle, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

CAGE - bearing

1шт.

5

R10277

BEARING CUP,3.5" OD x 0.9063"

CUP - tapered roller bearing

2шт.

N60223

CAGE ASSY.

CAGE ASSEMBLY - pinion shaft bearing, used with L116696 axle

1шт.

4a

NSS

NOT SOLD SEPARAT

CAGE - bearing

1шт.

5

R10277

BEARING CUP,3.5" OD x 0.9063"

CUP - tapered roller bearing

2шт.

6

D71290

SPACER

- bearing, .125" (3.175 mm) thick

1шт.

6

D71291

SPACER

- bearing, .126" (3.200 mm) thick

1шт.

6

D71292

SPACER

- bearing, .127" (3.226 mm) thick

1шт.

6

D71293

SPACER

- bearing, .128" (3.251 mm) thick

1шт.

6

D71294

SPACER

- bearing, .129" (3.277 mm) thick

1шт.

6

D71295

SPACER

- bearing, .130" (3.302 mm) thick

1шт.

6

D71296

SPACER

- bearing, .136" (3.454 mm) thick

1шт.

6

D71297

SPACER

- bearing, .142" (3.607 mm) thick

1шт.

6

D71298

SPACER

- bearing, .148" (3.760 mm) thick

1шт.

6

D71299

SPACER

- bearing, .154" (3.912 mm) thick

1шт.

6

D71300

SPACER

- bearing, .158" (4.013 mm) thick

1шт.

L33690

GEAR

SET - ring and pinion, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR - pinion

1шт.

9

L35091

NUT

NUT - hex, flange to pinion shaft

1шт.

10

D82783

ROLLER BEARING

- inner, drive pinion

1шт.

11

A18199

SNAP RING,#106, Ext

Ring, Snap, , bearing #106, Ext

1шт.

12

L33676

DISC

SHIM - bearing cage, .003" (0.76 mm) thick

1шт.

12

L33677

DISC

SHIM - bearing cage, .005" (0.127 mm) thick

1шт.

12

L33678

DISC

SHIM - bearing cage, .010" (0.254 mm) thick

1шт.

D73630

SUPPORT

CARRIER AND CAP ASSEMBLY - differential, Includes: Ref. 13 - 17

1шт.

13

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

14

NSS

NOT SOLD SEPARAT

CAP - differential bearing

2шт.

15

A15443

DOWEL

PIN - differential, if used

4шт.

16

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

- hex head, 5/8" - 11 NC x 3-1/2", grade 8

4шт.

17

L30737

WASHER

- special

4шт.

D66306

DIFFERENTIAL

CASE AND GEAR ASSEMBLY - differential, Includes: Ref. 18 - 26

1шт.

D66305

CASE

ASSEMBLY - differential, Includes: Ref. 18 - 20A

1шт.

18

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

19

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

20

26-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex head, 1/2" - 13 NC x 3", grade 8

8шт.

20a

D47366

WASHER

- special

8шт.

21

391-627

ELECTRICAL WIRE

WIRE - lock, No. 16 x 22", not shown, no longer available, order 391-636, if used, see below

1шт.

22

F9740

WASHER,60.68mm ID x 90.42mm OD x 1.58mm Thk

THRUST WASHER - side gear

2шт.

23

D66304

GEAR

BEVEL GEAR - differential side

2шт.

24

A18181

U-JOINT SPIDER

SPIDER - differential

1шт.

25

A18175

PINION

GEAR - differential

4шт.

26

A18176

DISC

BELLEVILLE SPRING - pinion

4шт.

27

A47251

DRIVE SCREW

- special, ring gear to differential case, for service, also order 131-1234 nut, Ref. 28

12шт.

28

232-4618

LOCK NUT,1/2"-20, GC

NUT - hex, self-locking, 1/2" - 20 NF

12шт.

29

D47366

WASHER

- hardened

12шт.

30

A18173

ROLLER BEARING

TAPERED ROLLER BEARING - differential

2шт.

31

L35931

BEARING CUP

CUP - tapered roller bearing

2шт.

32

A18196

HARDWARE

COTTER PIN - special

2шт.

33

A18194

RING

- bearing adjusting

2шт.

34

D71239

SEAL

OIL SEAL - differential, used on L116696 axle

1шт.

35

L33674

GASKET

- cover to cage, used on L117958 axle

1шт.

N13564

COVER

ASSEMBLY - cage, used on L117958 axle, Includes: Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

COVER - cage, used on L117958 axle

1шт.

37

N13563

OIL SEAL

- cover, used on L117958 axle

1шт.

38

221-1035

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - square socket head, 3/4" NPT

1шт.

391-636

ELECTRICAL WIRE

WIRE - bulk, No. 16" x 50", Serial Range: cut-length

1шт.
