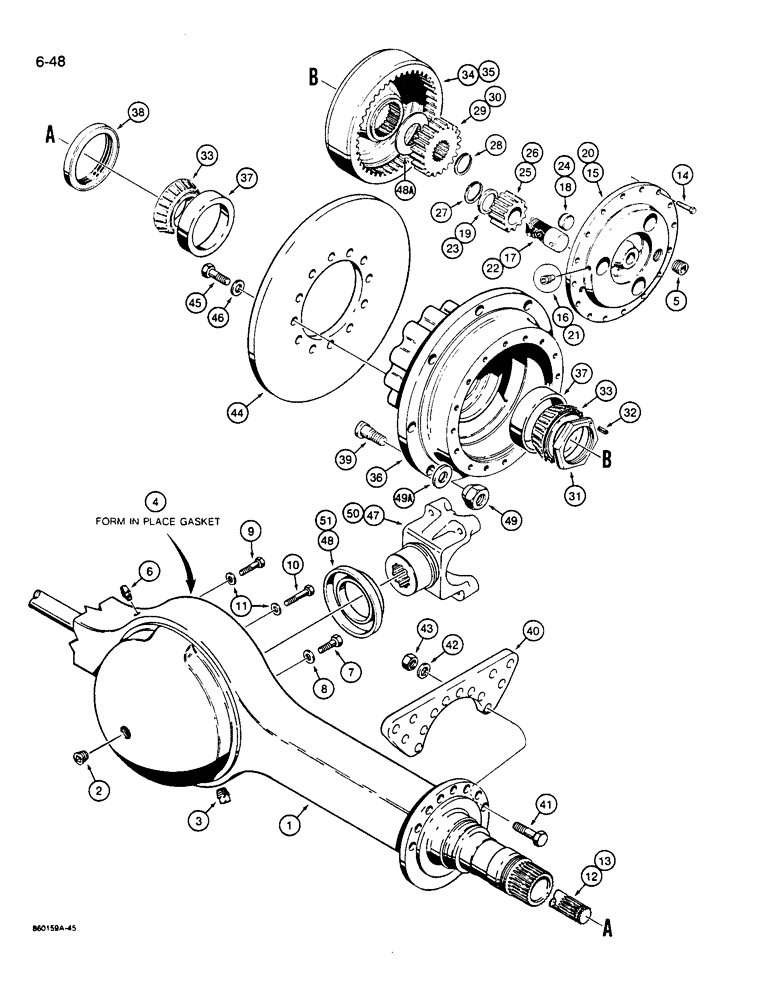

Запчасти Case W14B (6-48) - AXLE HOUSING AND PLANETARY, AXLES WITH DISC BRAKES (06) - POWER TRAIN

L116697

CENTER AXLE

AXLE ASSEMBLY - rear, Rockwell No. PRLS-204-NR102, Includes: Ref. 1 - 48A, Includes: Ref. 1 - 48A

1шт.

L127199

CENTER AXLE

AXLE ASSEMBLY - rear, Rockwell No. PRLS-204-NR103, Includes: Ref. 1 - 48A, Includes: Ref. 1 - 48A

1шт.

L117958

AXLE

ASSEMBLY - front, Rockwell No. PRLS-265-NR104, Includes: Ref. 1 - 48A, Includes: Ref. 1 - 48A

1шт.

L116696

CENTER AXLE

AXLE ASSEMBLY - front, Rockwell No. PRLS-265-NR101, Includes: Ref. 1 - 48A, Includes: Ref. 1 - 48A

1шт.

1

N13343

HOUSING

- axle, Includes: Ref. 2 and 3

1шт.

2

221-1035

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - square socket, 3/4" NPT

1шт.

3

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - square head, magnetic, 3/4" NPT

1шт.

4

M20704

ADHESIVE

FORM IN PLACE GASKET - tube, 3 oz. (3206 ml)

2шт.

5

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - 3/4" NPT, magnetic

2шт.

6

A12928

BREATHER

- oil

1шт.

7

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

12шт.

8

D47366

WASHER

- hardened

12шт.

9

26-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 8

- hex head, 7/16" - 14 NC x 1-3/4"

2шт.

10

26-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 8

- hex head, 7/16" - 14 NC x 2-1/4"

2шт.

11

D47367

WASHER

- hardened

4шт.

12

L35231

SHAFT

- axle, 37-3/16" (945 mm) long, rear axle, if used

1шт.

Axle shaft must be measured for length before ordering to obtain correct part.

1шт.

12

L35234

SHAFT

- axle, 39-9/16" (1005 mm) long, rear axle, if used

1шт.

Axle shaft must be measured for length before ordering to obtain correct part.

1шт.

13

N9742

SHAFT

- axle, 39-7/8" (1013 mm) long, front axle, if used

1шт.

Axle shaft must be measured for length before ordering to obtain correct part.

1шт.

13

N9744

SHAFT

- axle, 37-3/4" (958 mm) long, front axle, if used

1шт.

Axle shaft must be measured for length before ordering to obtain correct part.

1шт.

14

A18221

BOLT,M10 x 1.25 x 50mm, Cl 8.8

- special

32шт.

N13345

SPIDER

ASSEMBLY - planetary, used on rear axle, Includes: Ref. 15 - 19

2шт.

15

NSS

NOT SOLD SEPARAT

SPIDER - planetary

1шт.

16

N7103

STUD

SET SCREW - special

3шт.

17

N8158

SHAFT

- pinion

3шт.

18

N13346

BUTTON

- thrust

1шт.

19

A47986

WASHER

THRUST WASHER - pinion

3шт.

N13560

SPIDER ASSY.

SPIDER ASSEMBLY - planetary, used on front axle, Includes: Ref. 20 - 24

2шт.

20

NSS

NOT SOLD SEPARAT

SPIDER - planetary

1шт.

21

N7103

STUD

SET SCREW - special

3шт.

22

N7102

PINION

SHAFT - pinion

3шт.

23

A47986

WASHER

THRUST WASHER - pinion

3шт.

24

N13346

BUTTON

- thrust

1шт.

25

L35237

GEAR

PINION - planetary, used on rear axle

6шт.

26

D88721

GEAR WHEEL

PINION - planetary, used on front axle

6шт.

27

A18242

RING

SNAP RING - pinion gear

6шт.

28

A18241

RING

SNAP RING - sun gear

2шт.

29

L35232

GEAR

SUN GEAR - planetary, used on rear axle

2шт.

30

D88719

GEAR WHEEL

SUN GEAR - planetary, used on front axle

2шт.

N7105

LOCK NUT

NUT ASSEMBLY - lock, bearing, Includes: Ref. 31 and 32

2шт.

31

NSS

NOT SOLD SEPARAT

NUT - lock, bearing

1шт.

32

138-2018

PIN,1/4" x 7/8", Coiled

Nut 1/4" x 7/8", Coiled

2шт.

33

L35221

ROLLER BEARING,85mm ID x 30mm W

CONE - bearing

4шт.

34

N13347

GEAR

RING GEAR - hub, used on rear axle

2шт.

35

D88718

RING

GEAR - hub, used on front axle

2шт.

N14255

HUB ASSY.

HUB ASSEMBLY - axle, Includes: Ref. 36 and 37

2шт.

36

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

37

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - tapered roller bearing

2шт.

38

N7841

SEAL

- bearing

2шт.

39

N14152

BOLT

-, Serial Range: wheel-hub

16шт.

40

D80627

SUPPORT

PLATE - mount, used on L117958 and L116696 front axles and L127199 rear axle

2шт.

41

26-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

- hex, 3/4" - 10 NC x 2-1/4", G8, used on front axle

16шт.

42

L36067

WASHER

- special, 3/4", used on front axle

16шт.

43

131-1205

LOCK NUT,3/4"-10, GC

NUT, LOCK, , Used on front axle 3/4"-10, GC

16шт.

44

D80626

BRAKE DISC

DISC - hub

2шт.

45

D80623

BOLT

- hex head, 3/4" - 16 NF x 2"

24шт.

46

D80625

WASHER

- hardened, 3/4"

24шт.

N13344

YOKE

FLANGE ASSEMBLY - drive shaft, used on rear axle, Includes: Ref. 47 and 48

1шт.

47

NSS

NOT SOLD SEPARAT

FLANGE - drive shaft, used on rear axle

1шт.

48

D73691

COVER

SLINGER - oil, used on rear axle

1шт.

48a

D88720

WASHER,68.33mm ID x 101.6mm OD x 1.52mm Thk

- thrust, ring gear

1шт.

49

25-1712

NUT,3/4"-16, G5, Hvy

- special, front and rear axles, not included in axle assemblies

32шт.

49a

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- hardened, 3/4", front and rear axles

32шт.

N13685

FORK

FLANGE ASSEMBLY - drive shaft, used on front axle without parking brake, Includes: Ref. 50 and 51

1шт.

50

NSS

NOT SOLD SEPARAT

FLANGE - drive shaft, used on front axle without parking brake

1шт.

51

D71243

CARRIER

SLINGER - oil, used on front axle without parking brake

1шт.
