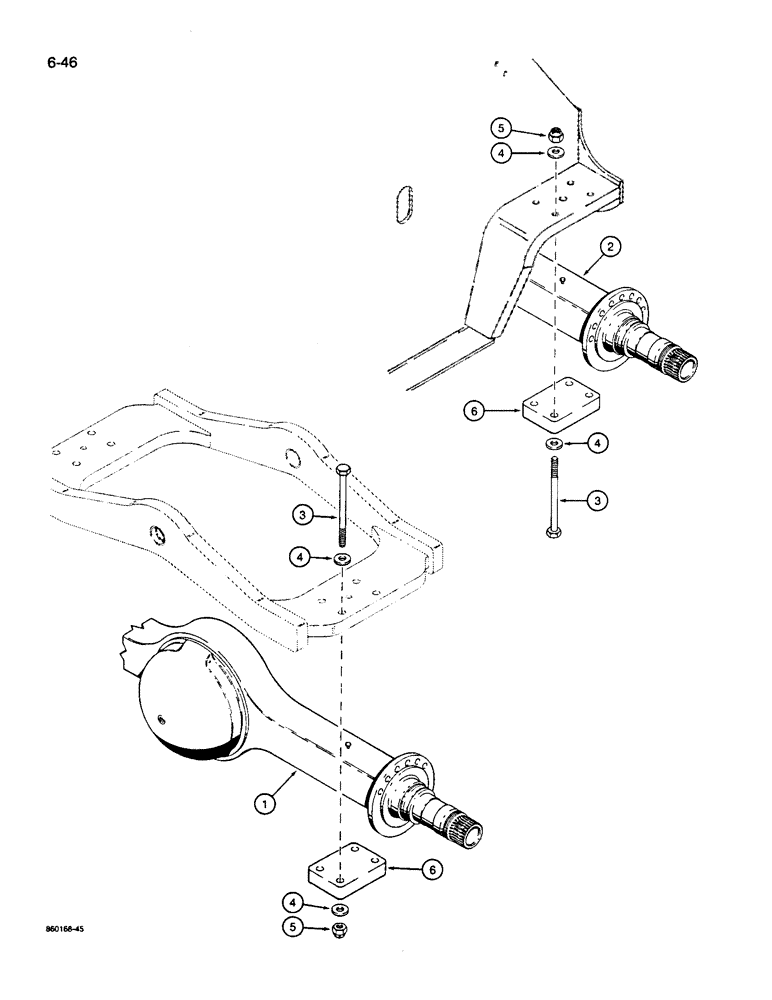

Запчасти Case W14B (6-46) - AXLE ASSEMBLIES AND MOUNTING (06) - POWER TRAIN

1

L116697

CENTER AXLE

AXLE ASSEMBLY - rear, Rockwell part No. PRLS-204-NR102, parts list Figures 6-48 and 6-56

1шт.

Ref #1 - Has 2 Piston brake calipers

1шт.

1

L127199

CENTER AXLE

AXLE ASSEMBLY - rear, Rockwell part No. PRLS-204-NR103, parts list Figures 6-48 and 6-56

1шт.

Ref #1A - Has 4 Piston brake calipers

1шт.

2

L117958

AXLE

ASSEMBLY - front, includes parking brake, Rockwell part No. PRLS-265-NR104, parts list figures 6-48 - 6-52 and figure 7-02

1шт.

Ref #2 - First used at P.I.N. 9162339 and has the parking brake relocated to the driveshaft area.

1шт.

2

L116696

CENTER AXLE

AXLE ASSEMBLY - front, Rockwell part No. PRLS-265-NR101, parts list Figure 6-48 - 6-52, used with transmission mounted parking brake

1шт.

3

116-703

BOLT,Hex, 3/4" - 16 x 9-1/2", Gr 8

Hex, 3/4"-16 x 9 1/2", G8

16шт.

4

L117258

WASHER

- flat, 3/4", hardened

32шт.

5

131-186

LOCK NUT,3/4"-16, GB

NUT - hex, self-locking, 3/4" - 16 NF

16шт.

6

L114128

PAD

- axle mounting

4шт.
