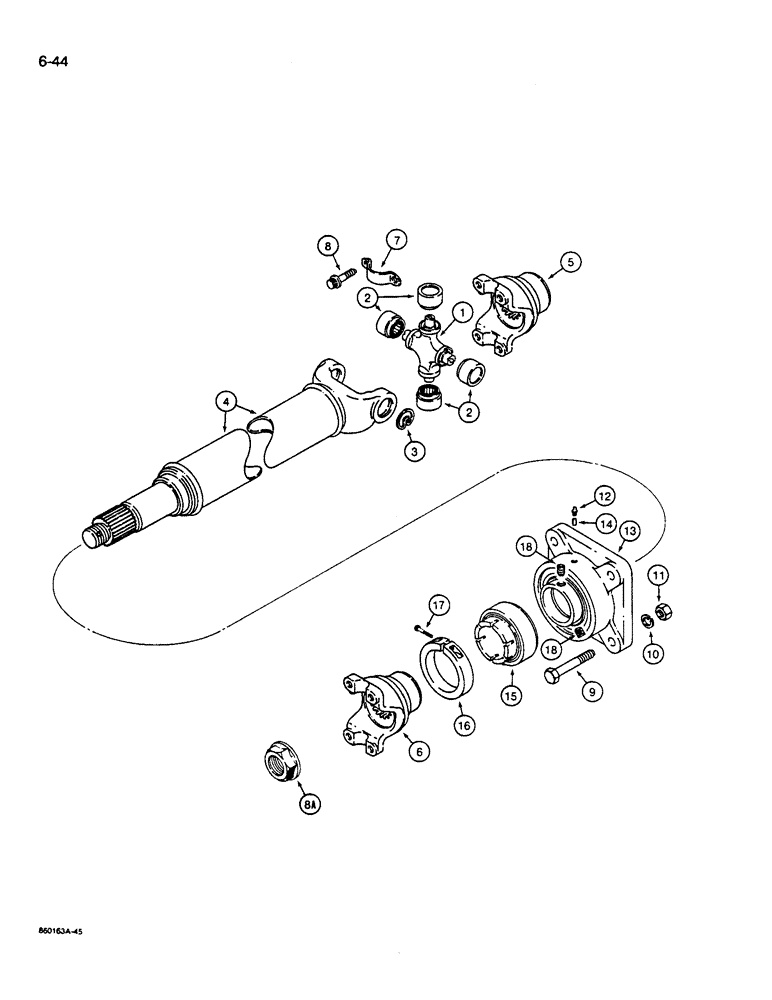

Запчасти Case W14B (6-44) - FRONT AXLE DRIVE SHAFT, AXLE END, DRIVE SHAFT SUPPORT (06) - POWER TRAIN

L116939

SHAFT

ASSEMBLY - drive, front axle, used with transmission mounted parking brake, Includes: Ref. 1 - 4

1шт.

L118048

SHAFT

ASSEMBLY - drive, front axle, used with axle mounted parking brake, Includes: Ref. 1 - 4

1шт.

D45166

KIT

- universal joint, journal and bearing

1шт.

1

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint

1шт.

2

NSS

NOT SOLD SEPARAT

RACE - bearing

4шт.

3

S92378

RING, SNAP

SNAP RING - universal joint

4шт.

4

NSS

NOT SOLD SEPARAT

YOKE AND TUBE ASSEMBLY - drive shaft, axle end

1шт.

5

REF

INSTRUCTION

YOKE - companion, drive shaft to front axle, used with transmission mounted parking brake, see figure 7-2 for flange used with axle mounted parking brake

1шт.

6

L116944

YOKE

YOKE - drive shaft to center bearing

1шт.

7

L116943

SECURING STRAP

STRAP - bearing

4шт.

8

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

BOLT, , Special, Bearing strap 12 pt Flg Hd, 3/8"-16 x 3/4, G8

8шт.

8a

L117413

NUT

- special, shaft

1шт.

9

113-516

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 5

- hex head, 9/16" - 12 NC x 1-3/4", plated, drive shaft support bearing

4шт.

10

192-24

LOCK WASHER,9/16"

WASHER, LOCK, , Drive shaft support bearing 9/16"

4шт.

11

129-106

NUT,9/16"-12, G5

- hex, 9/16" - 12 NC, plated, drive shaft support bearing

4шт.

L106070

FLANGED BEARING

BEARING SUPPORT ASSEMBLY - front drive shaft, uses set screws, drive shaft support bearing, Includes: Ref. 12 - 18

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, drive shaft support bearing

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - bearing, may have holes for set screws instead of slots, drive shaft support bearing

1шт.

14

L33788

AXLE PIN

PIN - lock, 1/4" diameter, drive shaft support bearing

1шт.

L33787

KIT

- repair, bearing and collar, converts from set screws to collar arrangement, drive shaft support bearing, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING AND SEAL ASSEMBLY - center bearing, drive shaft support bearing

1шт.

Original production bearings may have holes for set screws (Ref. 18) instead of slots.

1шт.

16

L33789

COLLAR

- bearing, if used, drive shaft support bearing

1шт.

17

61-416

HEX SOC SCREW,1/4"-20 x 1"

BOLT - hex socket head, 1/4" - 20 NC x 1", if used, drive shaft support bearing

1шт.

18

84-65

SET SCREW,Hex Soc, 3/8"-24 x 5/16"

- hex socket, cup point, 3/8" - 24 NF x 5/16", if used, drive shaft support bearing

2шт.

Original production bearings may have holes for set screws (Ref. 18) instead of slots.

1шт.
