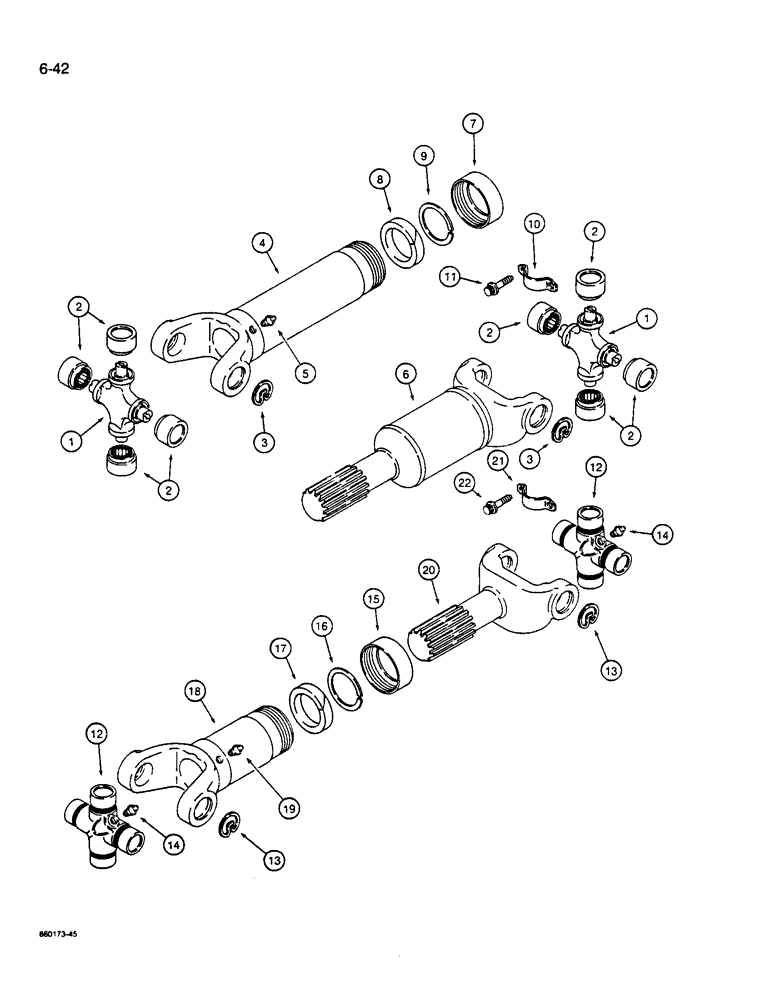

Запчасти Case W14B (6-42) - DRIVE SHAFTS, FRONT AXLE DRIVE SHAFT (TRANSMISSION END) (06) - POWER TRAIN

L116934

SHAFT ASSY.

SHAFT ASSEMBLY - drive, center, used with transmission mounted parking brake, Includes: Ref. 1 - 9

1шт.

L118047

SHAFT

ASSEMBLY - drive, center, used with axle mounted parking brake, Includes: Ref. 1 - 9

1шт.

D45166

KIT

- universal joint, journal and bearing, Includes: Ref. 1 - 3

2шт.

1

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint

1шт.

2

NSS

NOT SOLD SEPARAT

RACE - bearing

4шт.

3

S92378

RING, SNAP

SNAP RING - universal joint

4шт.

4

N13547

YOKE

- slip

1шт.

5

219-10

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING - straight, 1/4" - 28 NF taper

1шт.

6

N13548

YOKE

- spline, used with L118047 drive shaft

1шт.

6

N13635

YOKE

- spline, used with L116934 drive shaft

1шт.

7

S85992

CAP COVER

CAP - dust, drive shaft

1шт.

8

S85994

WASHER

- cork

1шт.

9

S88377

WASHER

- metal

1шт.

10

L116943

SECURING STRAP

STRAP - bearing

4шт.

11

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

BOLT, , Special, Bearing strap 12 pt Flg Hd, 3/8"-16 x 3/4, G8

8шт.

L116933

SHAFT ASSY.

SHAFT ASSEMBLY - drive, rear axle, Includes: Ref. 12 - 20

1шт.

D45979

SPIDER ,U-JOINT

UNIVERSAL JOINT ASSEMBLY - drive shaft, rear axle, Includes: Ref. 12 - 14

2шт.

12

NSS

NOT SOLD SEPARAT

UNIVERSAL JOINT - drive shaft, rear axle

1шт.

13

NSS

NOT SOLD SEPARAT

SNAP RING - drive shaft, rear axle

4шт.

14

219-10

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING - straight, 1/4" - 28 NF taper, rear axle drive shaft

1шт.

15

S12071

CAP

- yoke end, rear axle drive shaft

1шт.

16

S12072

BACK-UP RING

WASHER - special, cork retaining, rear axle drive shaft

1шт.

17

S12073

CORK

WASHER - cork, rear axle drive shaft

1шт.

18

N13518

YOKE

- slip, rear axle drive shaft

1шт.

19

219-10

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING - straight, 1/4" - 28 NF taper, rear axle drive shaft

1шт.

20

N13519

YOKE

- spline, rear axle drive shaft

1шт.

21

L116943

SECURING STRAP

STRAP - bearing, rear axle drive shaft

4шт.

22

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

BOLT, , Special, Bearing strap, Rear axle drive shaft 12 pt Flg Hd, 3/8"-16 x 3/4, G8

8шт.
