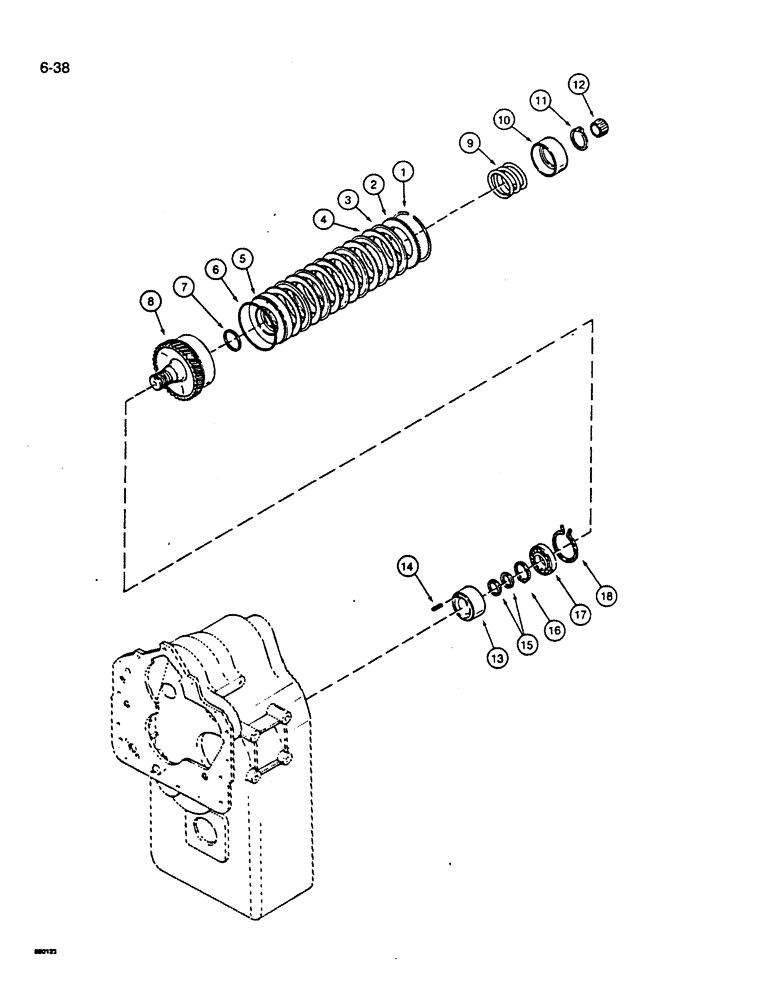

Запчасти Case W14B (6-38) - TRANSMISSION, THIRD CLUTCH ASSEMBLY (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - for correct assembly and components see figures 6-10 - 6-40, Includes: Ref. 1 - 7

1шт.

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - third, Includes: Ref. 1 - 7

1шт.

1

E114380

RING, SNAP

SNAP RING - backing plate

1шт.

2

E114381

PLATE

GEAR - backing plate, clutch disc

1шт.

3

N7217

DISC,92.66mm ID x 133.6mm OD x 2.41mm Thk

- clutch, friction, inner teeth

6шт.

4

E114383

CLUTCH DISC

DISC - clutch, metal, outer teeth

6шт.

5

E114392

PISTON

- clutch

1шт.

6

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING - piston, outer clutch

1шт.

7

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

- piston, inner clutch

1шт.

8

E114393

CLUTCH

SHAFT AND DRUM - clutch

1шт.

9

E114331

SPRING

- piston return

1шт.

10

E114332

RETAINER

- spring

1шт.

11

E114328

RING, SNAP

SNAP RING - spring retainer

1шт.

12

N7216

NEEDLE BEARING,1.125" ID x 1.5012" OD x 1"

BEARING - pilot, clutch shaft

1шт.

13

E114353

BEARING, ROLLER

RACE - outer, piston ring

1шт.

14

E114354

AXLE PIN

ROLL PIN - race, outer

1шт.

15

A17925

SPRING

RING - piston, clutch shaft

1шт.

16

100-11196

SNAP RING,#196, Ext

Ring, Snap, , front bearing, clutch shaft, CLAMP - tube #196, Ext

1шт.

17

S89657

BEARING

- front, clutch shaft

1шт.

18

E114352

RING, SNAP

RING - locating, bearing

1шт.
