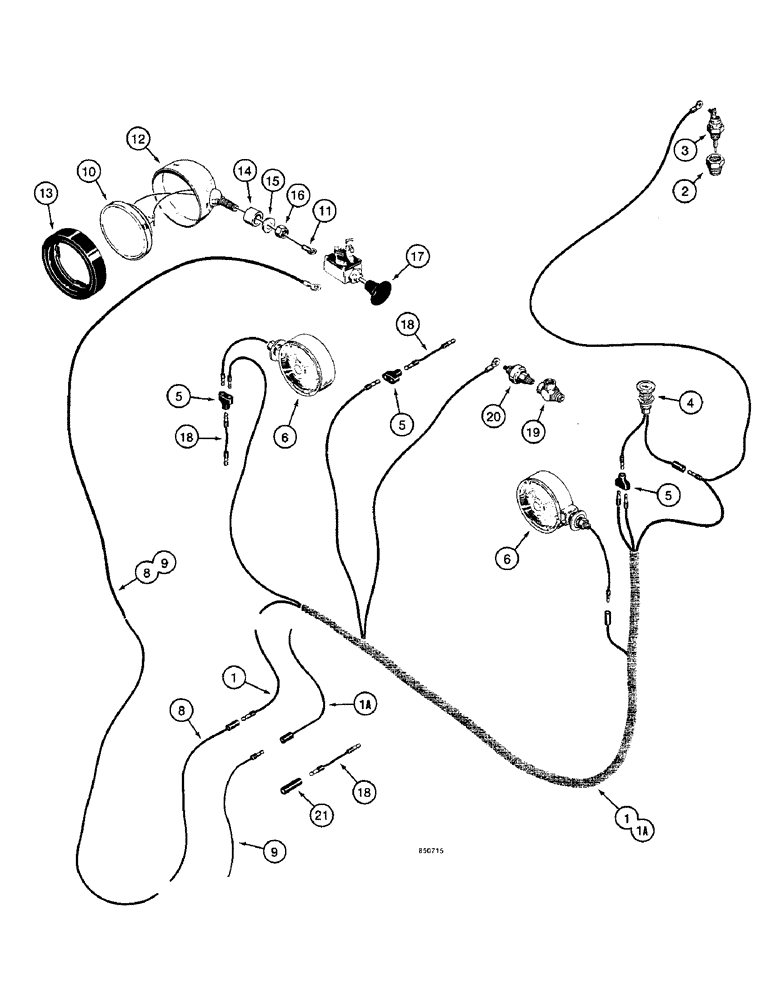

Запчасти Case W14 (212) - 26 BACKHOE LAMPS (04) - ELECTRICAL SYSTEMS

1

L55342

HARNESS

- without insulated terminals, use L100165 harness and 223-260 connector

1шт.

1a

L100165

HARNESS

- insulated terminals

1шт.

2

221-56

BUSHING - reducer, 1/2" - 3/8" NPT

1шт.

3

L50238

SWITCH

SENDING UNIT - water temperature

1шт.

4

L55349

LAMP

- water temperature warning, parts list figure 192

1шт.

5

A8210

CONNECTOR, ELEC

CONNECTOR - 3 way

3шт.

6

L59897

LAMP

ASSEMBLY - stop and tail lamp, parts list figure 192, Includes: Ref. 7

2шт.

7

A15084

LAMP

BULB - lamp, 24 volt (not shown)

2шт.

8

L55343

ELECTRICAL WIRE

WIRE - to flood lamp, use L100166 wire and L55344 wire, items 9 and 18

1шт.

9

L100166

ELECTRICAL WIRE

WIRE - to flood lamp

1шт.

L58010

LIGHT ASSY.

FLOOD LAMP ASSEMBLY - complete, Includes: Ref. 10 - 16

1шт.

10

A25212

LAMP

- seal beam, 24 volt

1шт.

11

223-59

TERMINAL CONNECTOR

TERMINAL - wire

1шт.

12

L58010

LIGHT ASSY.

SHELL - lamp

1шт.

13

A25213

RETAINER

- rubber

1шт.

14

D37048

BUSHING

- pivot

1шт.

15

D37049

WASHER

- special

1шт.

16

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex, self-locking, 1/2"-20 NF

1шт.

17

G13142

IGNITION SWITCH

SWITCH - flood lamp, use A39887 switch and (2) A39888 nuts

1шт.

18

L55344

ELECTRICAL WIRE

WIRE ASSEMBLY - if used

3шт.

19

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

- engine oil pressure

1шт.

20

A13794

TRANSMITTER

SENDING UNIT - engine oil pressure

1шт.

21

223-260

ELECTRICAL WIRE

CONNECTOR - electrical, if used

1шт.
