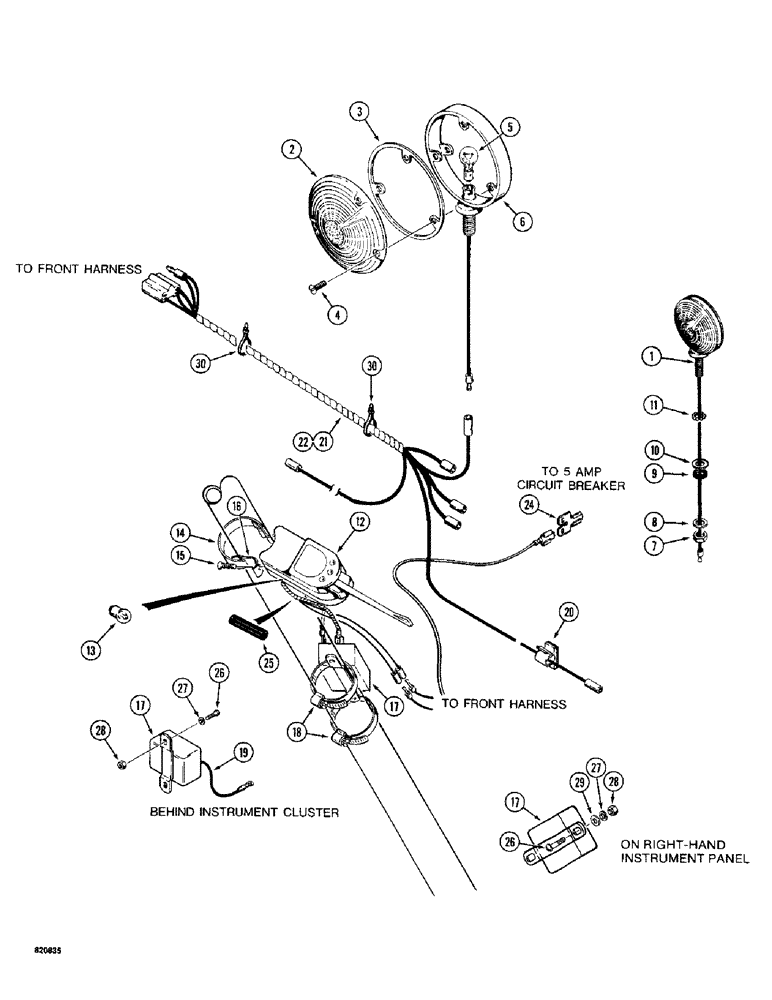

Запчасти Case W14 (198) - TURN SIGNAL AND FLASHER LAMP, USED BEFORE PIN 9154965 (04) - ELECTRICAL SYSTEMS

1

L108118

LAMP

- flasher, double face, replaces L43738 lamp, Includes: Ref. 2 - 10

2шт.

L32214

LENS

KIT - lamp, flasher, Includes: Ref. 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

LENS - lamp, flasher

1шт.

3

NSS

NOT SOLD SEPARAT

GASKET - lens

1шт.

4

173-279

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

- No. 6 - 32 NC x 5/8"

3шт.

5

L32257

BULB

- 24V, No. 307

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - flasher, double face

1шт.

7

129-125

NUT,1/2"-20, G5

1шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Replace with Ref. 11 1/2"

1шт.

9

L32256

WASHER

- rubber

1шт.

10

195-106

WASHER,1/2"

- flat, , plated 1/2"

1шт.

11

193-48

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

L106071

SIGNAL

SWITCH - turn and flasher, 2 wires to harness, interchangeable with L73667 switch, Includes: Ref. 12 - 16

1шт.

12

NSS

NOT SOLD SEPARAT

SWITCH - turn signal

1шт.

13

A14928

BULB

- direction indicator, No. 356

1шт.

14

L32658

STRAP

- mounting, turn signal switch

1шт.

L32659

KIT

HARDWARE PACKAGE - mounting, turn signal

1шт.

15

169-148

SCREW,Sl Fil Hd, #8 - 32 x 1"

- flat head machine, No. 8 - 32 NC x 1"

2шт.

16

NSS

NOT SOLD SEPARAT

CLIP - strap mounting

2шт.

17

L59781

FLASHER UNIT

FLASHER - signal

1шт.

18

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- wire, if used #28, 1.31/2.25 Type F Worm

2шт.

19

L52361

HOSE ASSY.

WIRE - ground

1шт.

20

L100659

CLIP

- stick on, canopy models

1шт.

21

L76549

HARNESS

- canopy

1шт.

22

REF

INSTRUCTION

HARNESS - cab, see figure 174

1шт.

23

RESERVED

1шт.

24

F43508

SPADE TERMINAL

SPADE - electrical connector

1шт.

25

L77093

CONDUIT

Flex, 0.35" ID x 6.00", Slit

1шт.

26

175-473

SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

- slotted, 1/4"-20 NC x 3/4", if used

2шт.

26

182-561

SCREW,Slotted Pan Hd, #10-24 x 3/4"

- pan head, No. 10 - 24 NC x 3/4", if used

2шт.

27

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , If used 1/4"

2шт.

27

92-3

LOCK WASHER,#10

WASHER, LOCK, , If used #10

2шт.

28

25-104

NUT,1/4"-20, G5

If used 1/4"-20, G5

2шт.

28

129-7

NUT,Hex, #10 - 24

- hex, No. 10 - 24 NC, if used

2шт.

29

95-3

WASHER,#12

- flat, No. 10, if used

2шт.

30

L76747

STRAP

TIE STRAP - wire to steering column

2шт.
