Запчасти Case W14 (196) - STOP AND TAIL LAMP, USED ON PIN 9154965 AND AFTER (04) - ELECTRICAL SYSTEMS

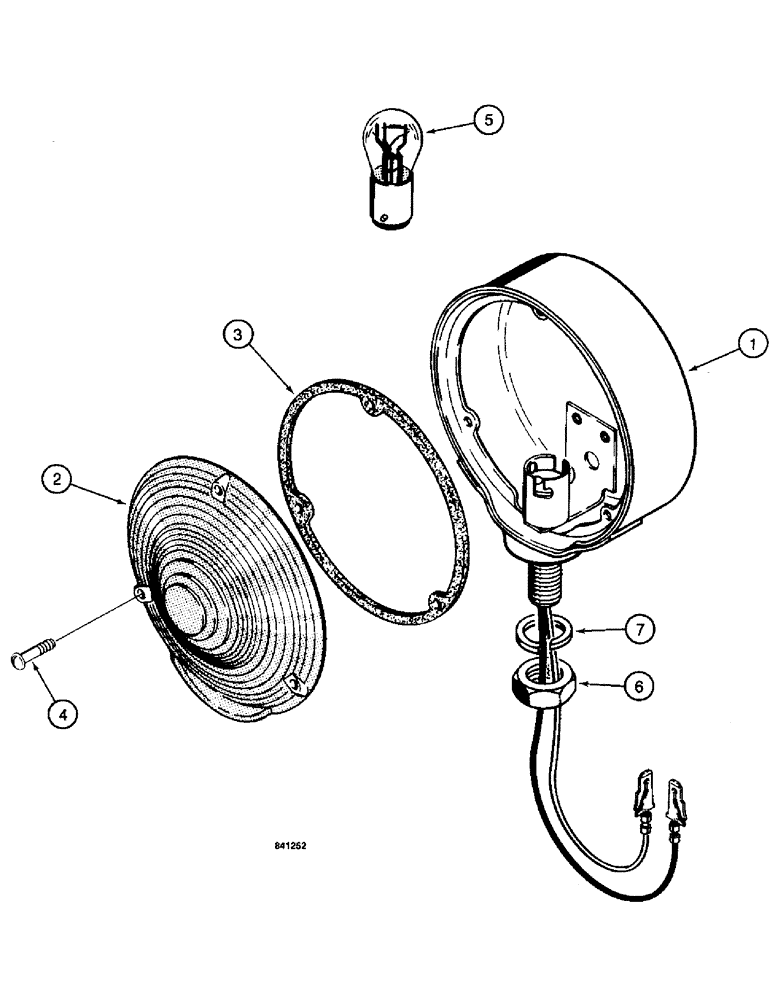

Схема запчастей Case W14 - (196) - STOP AND TAIL LAMP, USED ON PIN 9154965 AND AFTER (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

L114617

LAMP

ASSEMBLY - stop and tail, Includes: Ref. 1 - 7

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

L32213

LENS

KIT - lamp, stop and tail, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

LENS - lamp

1шт.

3

NSS

NOT SOLD SEPARAT

GASKET - lens

1шт.

4

173-279

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

- No. 6 - 32 NC x 5/8"

3шт.

5

L33194

BULB

- lamp, No. 1662

1шт.

6

129-125

NUT,1/2"-20, G5

1шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

Выбрано товаров: 9
