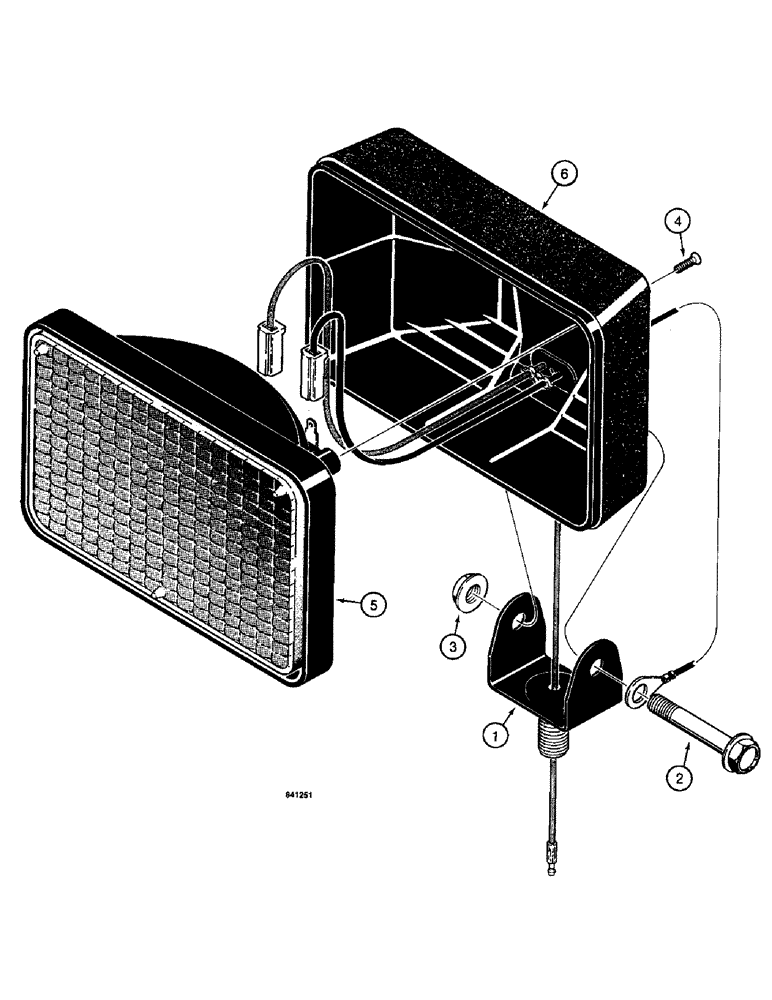

Запчасти Case W14 (194) - LAMPS - FRONT AND REAR, USED ON PIN 9154965 AND AFTER, FRONT LAMP (04) - ELECTRICAL SYSTEMS

L113374

LIGHT

LAMP ASSEMBLY - front, Includes: Ref. 1 - 6

2шт.

L113374 Lamp Assy. (upper driving) chassis mtd

1шт.

1

N8347

SUPPORT

BRACKET - lamp

1шт.

2

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

3

131-937

FLANGE NUT,Flg, 5/16"-18

NUT - flange, 5/16"-18 NC, plated

1шт.

4

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - self-tapping, No. 8 - 18 x 1/2"

2шт.

5

N9427

HEADLIGHT

BULB - sealed beam

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - lamp

1шт.

L113373

LIGHT ASSY.

LAMP ASSEMBLY - flood, Includes: Ref. 1 - 6

2-4шт.

L113373 Lamp Assy. (lower flood & rear flood) chassis mtd.

1шт.

1

N8347

SUPPORT

BRACKET - lamp

1шт.

2

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

3

131-937

FLANGE NUT,Flg, 5/16"-18

NUT - flange, 5/16"-18 NC, plated

1шт.

L113375

LIGHT ASSY.

LAMP ASSEMBLY - without bracket, for cab, Includes: Ref. 4 - 6

1-2шт.

L113375 Lamp Assy. (flood,front cab mtd.)

1шт.

4

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - self-tapping, No. 8 - 18 x 1/2"

2шт.

5

F45305

HEADLIGHT

BULB - sealed beam

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - lamp

1шт.
