Запчасти Case W14 (182) - ELECTRICAL SYSTEM, AUTOMATIC AUXILIARY STEERING - NO BUZZER (04) - ELECTRICAL SYSTEMS

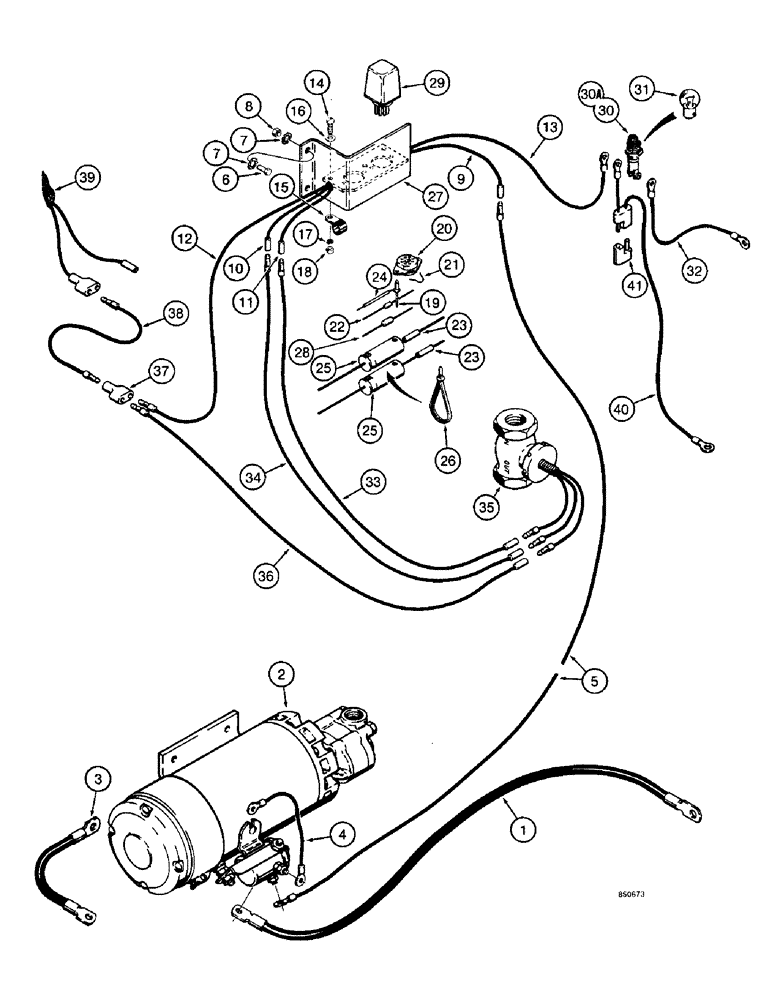

Схема запчастей Case W14 - (182) - ELECTRICAL SYSTEM, AUTOMATIC AUXILIARY STEERING - NO BUZZER (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

L117518

CABLE

- power supply

1шт.

REF: 1- L117518 Cable is 44" long.The old cable # L57534 was 36" long.

1шт.

2

L116118

PUMP, HYDRAULIC

PUMP AND MOTOR - auxiliary steering, parts list figure 262

1шт.

3

L57536

CABLE

WIRE - ground, pump

1шт.

4

A18457

ELECTRICAL WIRE

WIRE - ground, pump, 13" (320 mm) long, services 5" (127 mm) production wire

1шт.

5

L58424

ELECTRICAL WIRE

WIRE -, Serial Range: relay-solenoid

1шт.

6

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

7

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - external-internal tooth lock, 1/4"

4шт.

8

25-104

NUT,1/4"-20, G5

2шт.

L58968

SOCKET

ASSEMBLY - not available, order L112206 socket assembly, see figure 184, Includes: Ref. 9 - 28

1шт.

9

L70804

ELECTRICAL WIRE

WIRE -, Serial Range: solenoid-relay

1шт.

10

L57995

ELECTRICAL WIRE

WIRE - flow switch to relay, 4" (102 mm) long

1шт.

11

L57996

ELECTRICAL WIRE

WIRE - flow switch to relay, 6" (152 mm) long

1шт.

12

L57997

ELECTRICAL WIRE

WIRE -, Serial Range: harness-relay

1шт.

13

L79604

ELECTRICAL WIRE

WIRE -, Serial Range: lamp-relay

1шт.

14

169-77

SCREW - fillister head, No. 8 - 32 NC x 1/2"

2шт.

15

L108233

MOUNTING CLIP

CLAMP - wire

2шт.

16

195-10

WASHER,#8

2шт.

17

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

18

129-6

NUT,#8-32

2шт.

19

151-526

RIVET,Pop, 1/8" x .337"

- Socket Pop, 1/8" x .337"

4шт.

20

L57132

SOCKET

- relay

2шт.

21

L70845

ELECTRICAL WIRE

WIRE - ground

2шт.

22

L101026

RESISTOR

- 47 ohm, 2 watt

1шт.

23

223-126

SLEEVE

SHRINK TUBING - resistor

2шт.

24

L57998

ELECTRICAL WIRE

WIRE - jumper

1шт.

25

L72299

CAPACITOR

- 2000 mfd 40 volt

2шт.

26

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - harness

1шт.

27

L70807

BRACKET

- relay

1шт.

28

L72692

RESISTOR

- 390 ohm

1шт.

29

L58331

RELAY

- steering

2шт.

30

L47161

LAMP BASE

LAMP - warning, Includes: Ref. 30A and 31

1шт.

30a

A15127

LENS

- red

1шт.

31

P0732978Q

SCREW

BULB - 24 volt, No. 1843

1шт.

32

L71415

ELECTRICAL WIRE

WIRE - ground

1шт.

33

L59890

ELECTRICAL WIRE

WIRE - relay to flow switch, red-white color

1шт.

34

L59891

ELECTRICAL WIRE

WIRE - relay to flow switch, orange-white color

1шт.

35

L113437

SWITCH

- flow

1шт.

36

L59892

ELECTRICAL WIRE

WIRE - harness to flow switch

1шт.

37

A8210

CONNECTOR, ELEC

CONNECTOR - electrical, 3-way

1шт.

38

L72397

ELECTRICAL WIRE

WIRE - jumper

1шт.

39

REF

INSTRUCTION

HARNESS - front, see figure 136 thru 140

1шт.

40

L72598

ELECTRICAL WIRE

WIRE - lamp to air pressure buzzer

1шт.

41

L71879

DIODE ELEMENT,400V, 3A

DIODE - warning lamp

1шт.

Выбрано товаров: 44
