Запчасти Case W14 (178) - ELECTRICAL SYSTEM, OPERATORS COMPARTMENT, USED ON PIN 9154965 AND AFTER (04) - ELECTRICAL SYSTEMS

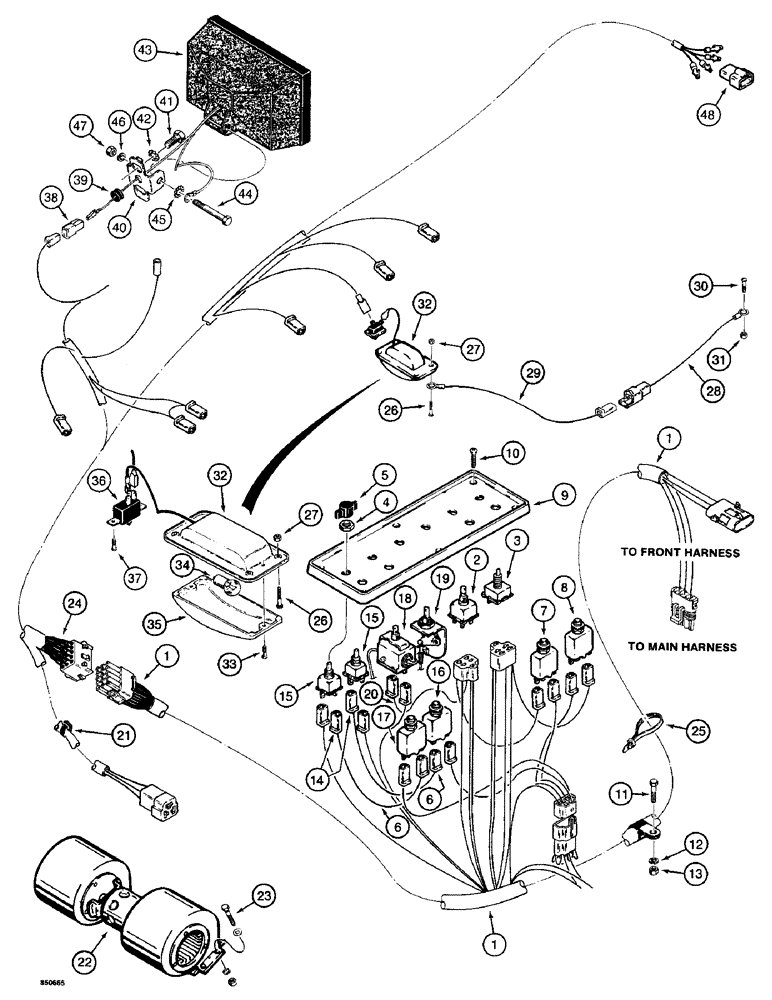

Схема запчастей Case W14 - (178) - ELECTRICAL SYSTEM, OPERATORS COMPARTMENT, USED ON PIN 9154965 AND AFTER (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

L115622

HARNESS

- lower, cab

1шт.

2

A42622

SWITCH

- blower

1шт.

3

L111292

SWITCH

- wiper

1шт.

4

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- switches

3-6шт.

5

L74694

KNOB

- switches

2-6шт.

6

L114358

HARNESS

WIRE - jumper

2-6шт.

7

L59972

BREAKER

CIRCUIT BREAKER - 15 amp

1шт.

8

L76726

BREAKER

CIRCUIT BREAKER - 3 amp

1шт.

9

L111337

PANEL

- accessory

1шт.

10

187-1921

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - Phillips, No. 10 - 16 NC x 3/4"

6шт.

11

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

14

223-154

CONNECTOR, ELEC

CONNECTOR - male

2шт.

15

L70872

SWITCH

- beacon and defroster

1-2шт.

16

F43510

BREAKER

CIRCUIT BREAKER - 10 amp

1шт.

17

F43509

BREAKER

CIRCUIT BREAKER - 6 amp

1шт.

18

L73646

SWITCH

- air conditioning

1шт.

19

L104585

CABLE PULLING GRIP

CABLE ASSEMBLY - heater control

1шт.

20

A42624

ELECTRICAL WIRE

WIRE -, Serial Range: blower-switch

1шт.

21

L100659

CLIP

- wire

1шт.

22

REF

INSTRUCTION

BLOWER - cab, see figure 232 for correct assembly and components

1шт.

23

22-48

SELF-TAP SCREW,Hex, 1/4" - 20 x 1/2", Gr 2

SCREW - self-tapping, 1/4"-20 NC x 1/2"

8шт.

24

L114298

HARNESS

- cab

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

26

171-245

SCREW,Cross Flat Hd, #8 - 32 x 1/2"

MACHINE SCREW - flat head Phillips, No. 8 - 32 NC x 1/2", plated

4шт.

27

129-16

NUT,#8-32

4шт.

28

L115618

HARNESS

WIRE -, Serial Range: ground,-headliner

1шт.

29

L115619

HARNESS

WIRE - ground, to dome lamp

1шт.

30

182-561

SCREW,Slotted Pan Hd, #10-24 x 3/4"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 3/4", plated

1шт.

31

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

1шт.

F96897

LAMP

ASSEMBLY - dome, Includes: Ref. 32 - 35

1шт.

32

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

33

173-297

SCREW,Phil Rnd Hd, #8 - 32 x 1/4"

- No. 8 - 32 NC x 1/4"

2шт.

34

D71459

LAMP

BULB - 24V, dome, No. 1591

1шт.

35

NSS

NOT SOLD SEPARAT

LENS - dome lamp

1шт.

36

D75876

IGNITION SWITCH

SWITCH - dome lamp

1шт.

37

179-158

SCREW,Cross Oval Hd, #6 - 32 x 3/8"

MACHINE SCREW - oval Phillips head, No. 6 - 32 x 3/8", plated

2шт.

38

223-166

CONNECTOR, ELEC

CONNECTOR - female

2шт.

39

L13766

GROMMET

- wire

2шт.

40

L113415

BRACKET

- flood lamp

2шт.

41

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

42

193-72

LOCK WASHER

- internal-external tooth lock, 3/8", plated

4шт.

43

REF

INSTRUCTION

FLOOD LAMP - see figure 194 for correct assembly and components

2шт.

44

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

45

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

46

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

47

9635082

NUT,5/16" - 18, Gr 5

2шт.

48

S107089

CONNECTOR, ELEC

CONNECTOR - wire

1шт.

Выбрано товаров: 49
