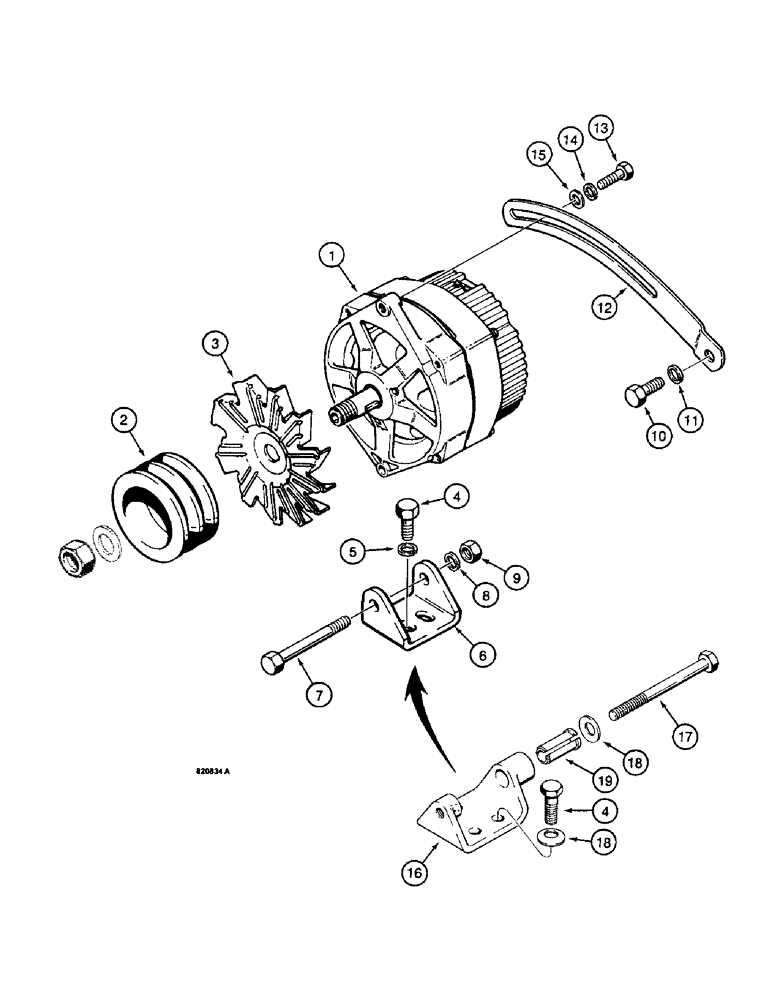

Запчасти Case W14 (172) - 40 AMP ALTERNATOR AND MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

1

A167152

ALTERNATOR

ALTERNATOR - 24V, 40 amp, Delco-Remy No. 1105510, uses metric hardware, parts list figure 104

1шт.

1

104260A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 24 volt 40 ampere,

1шт.

1

104260A1C

CORE-ALTERNATOR

Return Number

1шт.

1

L101465

ALTERNATOR

ALTERNATOR - 24V, 40 amp, Delco-Remy No. 1103123, uses metric hardware, parts list figure 102

1шт.

1

L78103

ALTERNATOR

ALTERNATOR - 24V, 40 amp, Delco-Remy No. 1102918, parts list figure 100

1шт.

1

L59901

ALTERNATOR

ALTERNATOR - 24V, 40 amp, Delco-Remy No. 1102348, parts list figure 98

1шт.

2

L59716

PULLEY

PULLEY - alternator

1шт.

3

A43384

FAN

FAN - alternator

1шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2-3шт.

5

92-6

LOCK WASHER,3/8"

LOCK WASHER, , used with A160391 bracket, Ref. 6 3/8"

2шт.

6

A160391

BRACKET

BRACKET - mount, if used, replace with Refs. 16, 17, 18, and 19

1шт.

7

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

BOLT - hex head, 3/8"-16 NC x 3-1/4", used with A160391 bracket, Ref. 6

1шт.

8

92-6

LOCK WASHER,3/8"

LOCK WASHER, , used with A160391 bracket, Ref. 6 3/8"

1шт.

9

25-106

NUT,3/8"-16, G5

NUT - hex, 3/8"-16 NC, used with A160391 bracket, Ref. 6

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

11

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

12

A145326

STRAP

STRAP - adjusting

1шт.

13

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, , Used with L59901 and L78103 alternators Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

13

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

BOLT - hex head, 8 mm - 1.25 x 25 mm (8.8), used with L101465 and A167152 alternators

1шт.

14

92-5

LOCK WASHER,5/16"

LOCK WASHER, , used with L59901 and L78103 alternators 5/16"

1шт.

14

892-1108

LOCK WASHER,M8

LOCK WASHER, , used with L101465 and A167152 alternators M8

1шт.

15

95-5

WASHER,3/8" x 7/8" x .083"

WASHER - flat, 5/16", used with all alternators

1шт.

16

L114531

BRACKET

BRACKET - mount

1шт.

17

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

BOLT - Hex, M10 x 100, 8.8

1шт.

18

L105055

WASHER

WASHER - special

3-4шт.

19

J902469

SPACER

SPACER - bolt

1шт.
