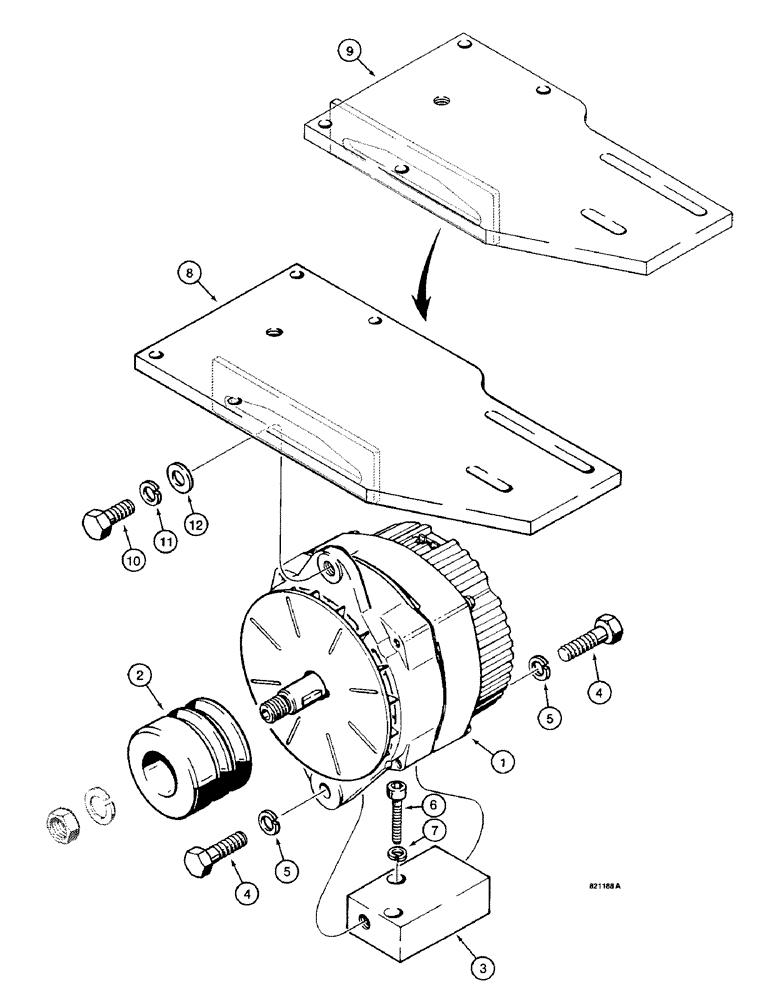

Запчасти Case W14 (170) - 65 AMP ALTERNATOR AND MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR - 24V, 65 amp, Delco-Remy No. 1105474, parts list figure 110

1шт.

1

REF

INSTRUCTION

ALTERNATOR - 24V, 65 amp, Delco-Remy No. 1100077, parts list figure 106

1шт.

2

S219716

PULLEY

- alternator

1шт.

3

L104699

BLOCK

BRACKET - mount

1шт.

4

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

5

92-8

LOCK WASHER,1/2"

2шт.

6

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

BOLT - hex socket head, 1/2"-13 NC x 1-3/4"

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

L104705

PLATE

- alternator adjusting and compressor mounting, used with air cooled air compressor

1шт.

9

L112443

PLATE ASSY.

PLATE - alternator adjusting and compressor mounting, used with water cooled air compressor

1шт.

10

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

11

92-8

LOCK WASHER,1/2"

1шт.

12

D64050

WASHER

- flat, 1/2"

1шт.
