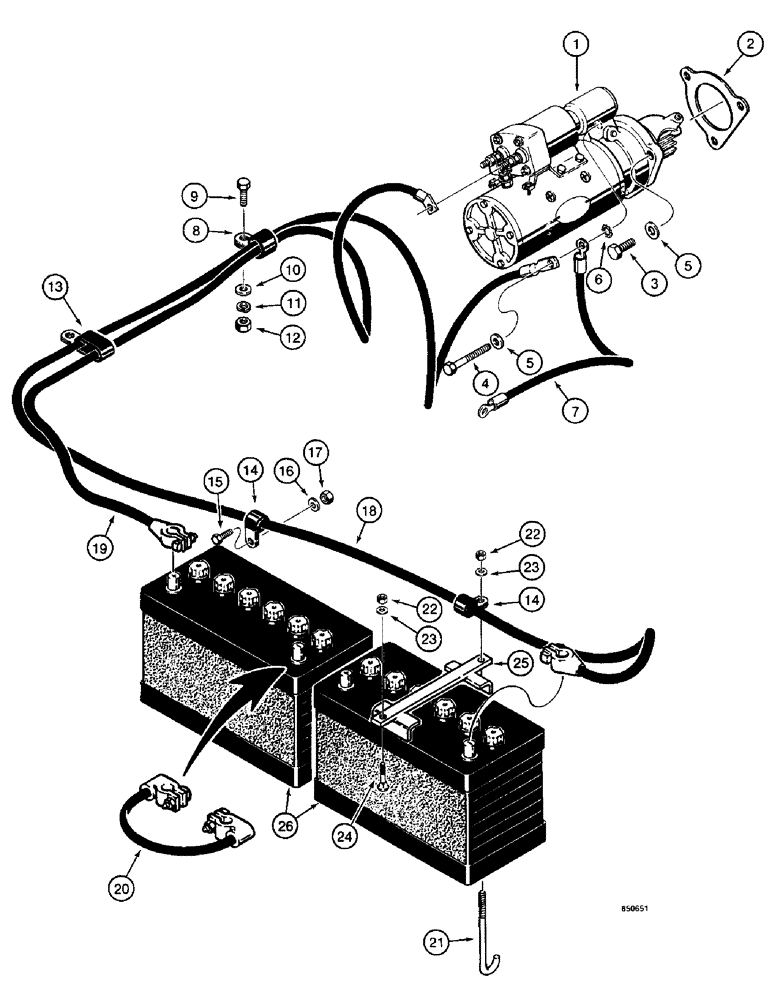

Запчасти Case W14 (166) - ELECTRICAL SYSTEM, BATTERY, STARTER, AND BATTERY CABLES, USED ON PIN 9154965 AND AFTER (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER - Delco No. 1993742, parts list figure 124

1шт.

2

A27933

GASKET

- starting motor

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

4

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

5

R24323

WASHER

- flat, 1/2"

3шт.

6

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

7

L115112

CABLE

- ground, starter

1шт.

8

51200329

CLIP

CLAMP - battery cable

1шт.

9

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

10

95-8

WASHER,1/2"

flat 1/2"

1шт.

11

92-8

LOCK WASHER,1/2"

1шт.

12

25-108

NUT,1/2"-13, G5

- hex, 1/2"-13 NC

1шт.

13

D34980

CLAMP

- battery cable

1шт.

14

49838

CLAMP

- battery cable

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

1шт.

18

L116157

CABLE

- battery ground

1шт.

19

L116158

CABLE

-, Serial Range: battery-starter

1шт.

20

L116155

CABLE PULLING GRIP

CABLE -, Serial Range: battery-battery

1шт.

21

T53041

BOLT

J-BOLT - battery holddown

2шт.

22

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16"-18 NC

4шт.

23

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.

24

11-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2"

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1 1/2"

2шт.

25

L51503

HOLDER

RETAINER - battery

2шт.

26

A38411

DRY BATTERY

- 12 volt

2шт.
