Запчасти Case W14 (164) - ELECTRICAL SYSTEM, ENGINE AND TRANSMISSION HARNESS, USED ON P.I.N. 9154965 AND AFTER (04) - ELECTRICAL SYSTEMS

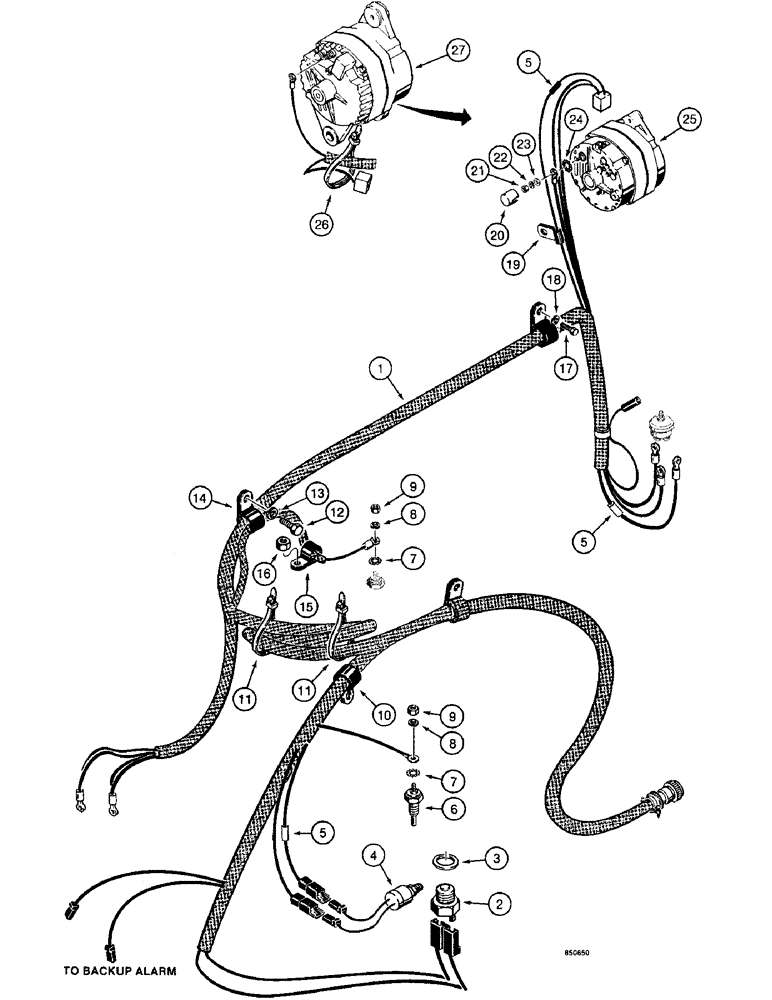

Схема запчастей Case W14 - (164) - ELECTRICAL SYSTEM, ENGINE AND TRANSMISSION HARNESS, USED ON P.I.N. 9154965 AND AFTER (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

L114105

HARNESS

- engine and transmission

1шт.

2

A139078

SWITCH

- neutral start

1шт.

3

L112595

WASHER

- neutral start switch

1шт.

4

L112587

SWITCH

- clutch pressure

1шт.

5

L73576

RESISTOR

- 40 ohm

3шт.

6

L56217

UNIT

SENDER - torque converter oil temperature

1шт.

7

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

2шт.

8

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

9

129-27

NUT,Hex, #10 - 32

- hex, No. 10 - 32 NF

2шт.

10

49839

CLAMP

- harness

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

13

92-5

LOCK WASHER,5/16"

1шт.

14

NLS

NO LONGER SERVICED

- harness

1шт.

15

51200330

CLAMP

- harness

1шт.

16

25-147

JAM NUT,Jam, 7/16"-14, G5

- hex, jam, 7/16"-14 NC

1шт.

17

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

18

92-6

LOCK WASHER,3/8"

1шт.

19

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- harness

1шт.

20

L106774

CAP

- 40 amp alternator

1шт.

21

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm x 1

1шт.

22

892-1106

LOCK WASHER,M6

1шт.

23

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

1шт.

24

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - external-internal tooth lock, 1/4"

1шт.

25

REF

INSTRUCTION

ALTERNATOR - 40 amp, see figure 172 for mounting parts, parts list figure 104, see Ref. 27 for 65 amp alternator

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

27

REF

INSTRUCTION

ALTERNATOR - 65 amp, see figuer 170 for mounting parts, parts list figure 110, see Ref. 25 for 40 amp alternator

1шт.

Выбрано товаров: 27
