Запчасти Case W14 (160) - ELECTRICAL SYSTEM, REAR HARNESS, USED ON PIN 9154965 AND AFTER (04) - ELECTRICAL SYSTEMS

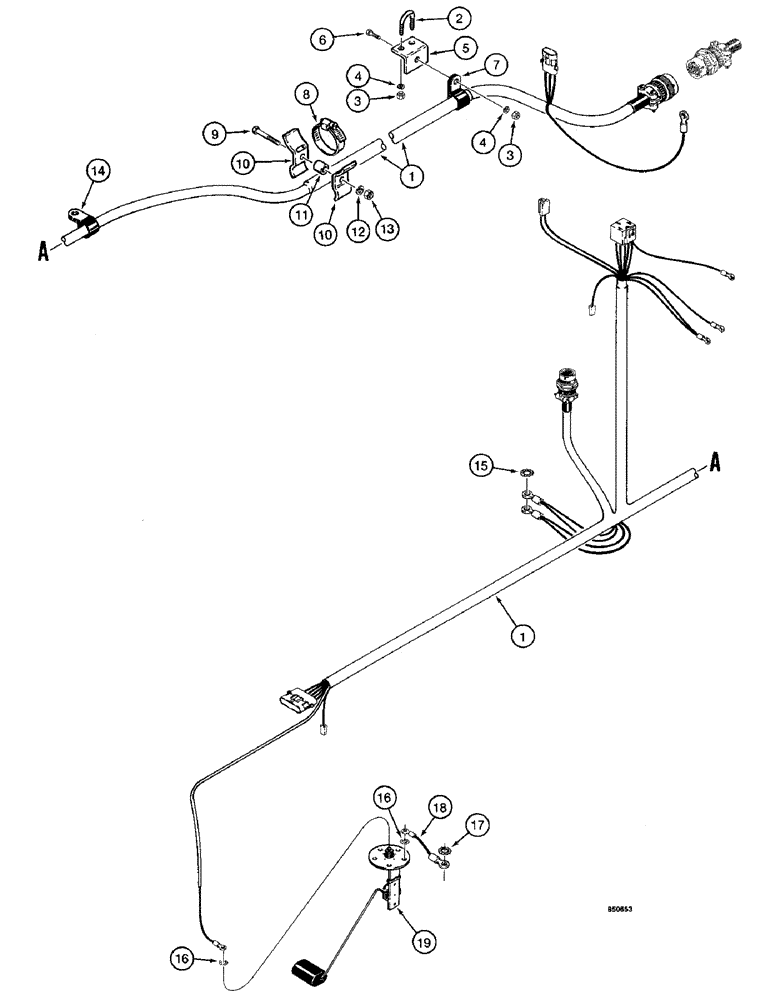

Схема запчастей Case W14 - (160) - ELECTRICAL SYSTEM, REAR HARNESS, USED ON PIN 9154965 AND AFTER (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

L116226

HARNESS

- rear

1шт.

2

L78948

U-BOLT

- 5/16"-18 NC

1шт.

3

9635082

NUT,5/16" - 18, Gr 5

3шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

5

L113977

BRACKET

- harness retaining

1шт.

6

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

7

R14668

CLAMP

- harness

1шт.

8

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- adjustable #36, 1.81/2.75 Type F Worm

1шт.

9

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

10

L114039

CLAMP

- harness mount

2шт.

11

H190488

SPACER

- clamp

1шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

14

NLS

NO LONGER SERVICED

CLAMP - harness

1шт.

15

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

16

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

2шт.

17

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal-external tooth lock, 1/4", plated

1шт.

18

L114608

HARNESS

WIRE - ground

1шт.

19

REF

INSTRUCTION

SENDER - fuel tank

1шт.

Выбрано товаров: 19
