Запчасти Case W14 (158) - ELECTRICAL SYSTEM, FRONT HARNESS TO FLOOD LAMPS, USED ON PIN 9154965 AND AFTER (04) - ELECTRICAL SYSTEMS

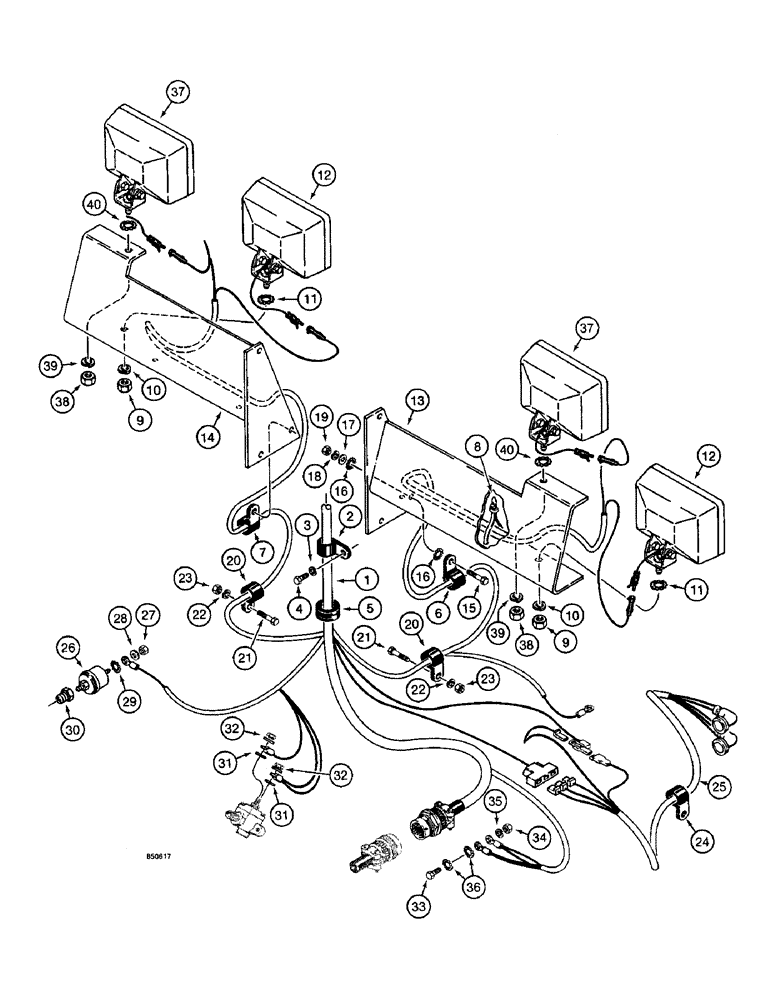

Схема запчастей Case W14 - (158) - ELECTRICAL SYSTEM, FRONT HARNESS TO FLOOD LAMPS, USED ON PIN 9154965 AND AFTER (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

L114599

HARNESS

- front

1шт.

2

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- harness

1шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

5

L53783

GROMMET,1 1/4" ID x 2 3/8" Groove Dia, Str Cut

- front harness

1шт.

6

49838

CLAMP

- wire

1шт.

7

49845

CLAMP

- wire

1шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

10

92-8

LOCK WASHER,1/2"

2шт.

11

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

12

L113373

LIGHT ASSY.

LAMP ASSEMBLY - flood, parts list figure 194

2шт.

13

L115777

BRACKET

- lamp mounting, right-hand

1шт.

14

L115778

BRACKET

- lamp mounting, left-hand

1шт.

15

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

16

193-72

LOCK WASHER

- internal-external tooth lock, 3/8", plated

12шт.

17

195-104

WASHER,3/8"

- flat, , plated 3/8"

6шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

20

49859

CLAMP

- wire

2шт.

21

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

22

92-8

LOCK WASHER,1/2"

2шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

24

49832

CLAMP

- wire

1шт.

25

L115836

HARNESS

- loader valve

1шт.

26

L109945

TRANSMITTER

SENDER - air pressure

1шт.

27

129-37

NUT,#10-32

1шт.

28

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

29

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

30

221-1054

BUSHING

REDUCER - 1/2" x 1/8" NPT

1шт.

31

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

2шт.

32

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

33

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

34

9635082

NUT,5/16" - 18, Gr 5

1шт.

35

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

36

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

37

L113374

LIGHT

LAMP ASSEMBLY - front driving, parts list figure 194

2шт.

38

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

39

92-8

LOCK WASHER,1/2"

2шт.

40

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

Выбрано товаров: 40
