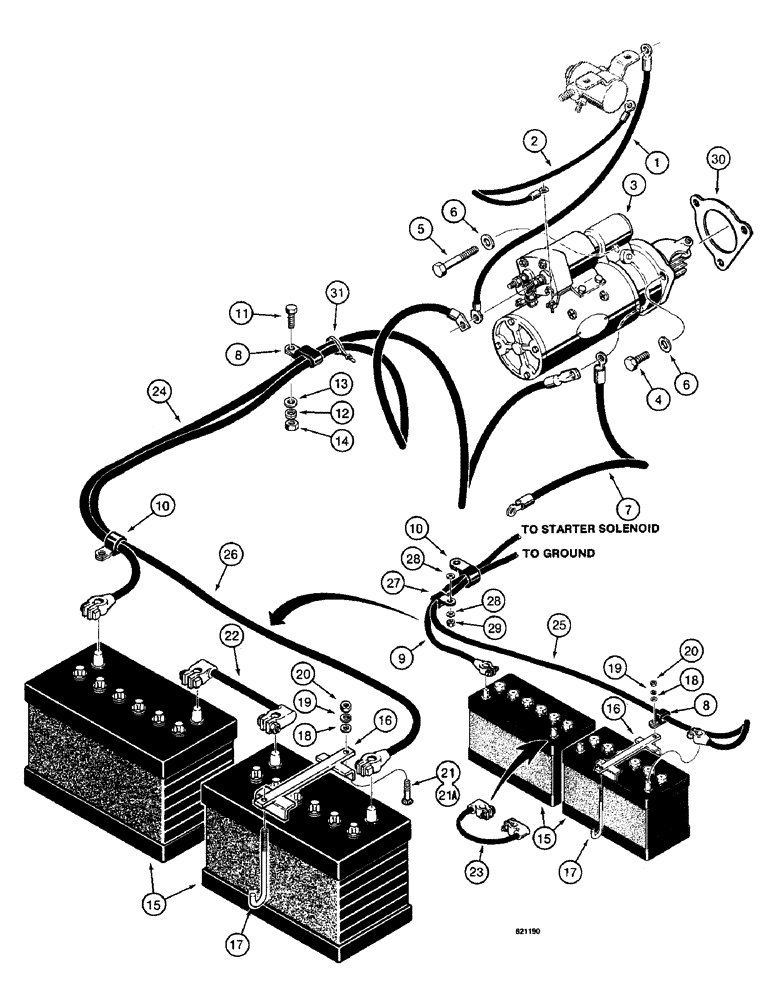

Запчасти Case W14 (154) - ELECTRICAL SYSTEM, BATTERY, STARTER, AND BATTERY CABLES, USED BEFORE P.I.N. 9154965 (04) - ELECTRICAL SYSTEMS

1

L70385

CABLE

- starter to solenoid, Serial Range: -9141516

1шт.

1

L106103

CABLE

- starter to solenoid, Start Serial: 9141516

1шт.

2

L13300

ELECTRICAL WIRE

WIRE - solenoid to starter, Serial Range: -9141516

1шт.

2

L106104

ELECTRICAL WIRE

WIRE - solenoid to starter, Start Serial: 9141516

1шт.

3

REF

INSTRUCTION

STARTER - Delco No. 1113403, parts list figure 112, if used

1шт.

3

REF

INSTRUCTION

STARTER - Delco No. 1113479, parts list figure 116, if used

1шт.

3

REF

INSTRUCTION

STARTER - Delco No. 1113534, 35 parts list figure 120, if used

1шт.

4

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

5

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

6

R24323

WASHER

- flat, 1/2"

3шт.

7

L40793

ELECTRICAL WIRE

CABLE - ground, starter

1шт.

8

L19029

CLAMP

- battery cable

2шт.

9

L74421

CABLE

- battery to starter, Start Serial: 9137935

1шт.

10

R17416

CLAMP

- battery cable

1шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

12

92-6

LOCK WASHER,3/8"

1шт.

13

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

1шт.

15

A38411

DRY BATTERY

- 12 volt

2шт.

16

L51503

HOLDER

RETAINER - battery

2шт.

17

T53041

BOLT

J-BOLT - battery holddown

2шт.

18

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.

19

92-5

LOCK WASHER,5/16"

4шт.

20

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16"-18 NC

4шт.

21

11-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2"

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1 1/2"

2шт.

21a

11-528

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

CARRIAGE, 5/16"-18 x 1 3/4", G2, Backhoe models only

2шт.

22

L13310

CABLE

- battery to battery, Serial Range: -9137935

1шт.

23

L100781

CABLE

- battery to battery, Start Serial: 9137935

1шт.

24

L74420

CABLE

- battery ground, Serial Range: -9137935

1шт.

25

L104559

CABLE

- battery ground, Start Serial: 9137935

1шт.

26

L74419

CABLE PULLING GRIP

CABLE - battery to starter, Serial Range: -9137935

1шт.

27

51200320

CLAMP

- battery cable

1шт.

28

95-8

WASHER,1/2"

flat 1/2"

2шт.

29

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2"-13 NC

1шт.

30

A27933

GASKET

- starter

1шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
