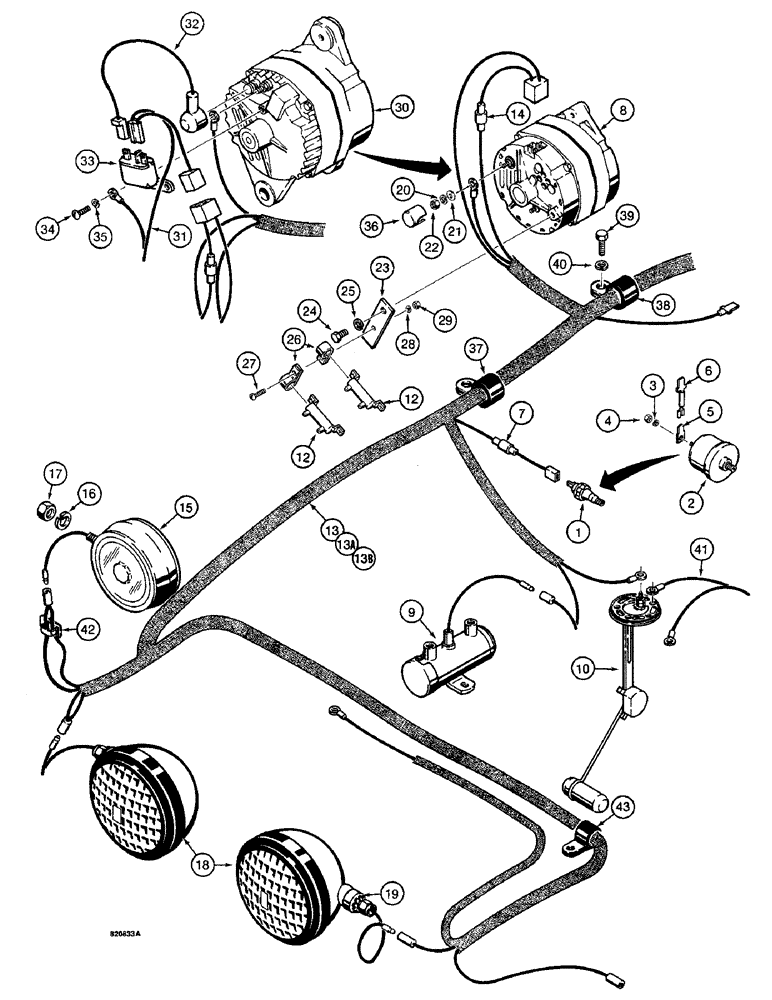

Запчасти Case W14 (150) - ELECTRICAL SYSTEM, REAR HARNESS TO ALTERNATOR AND LAMPS, USED BEFORE P.I.N. 9154965 (04) - ELECTRICAL SYSTEMS

1

A66737

SWITCH, PRESSURE

SENDER - engine oil pressure, used with L74445 harness and after

1шт.

2

A35031

SENDER UNIT

SENDER - engine oil pressure, used with L71734 harness

1шт.

3

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

4

129-6

NUT,#8-32

1шт.

5

L59682

TERMINAL CONNECTOR

TERMINAL - flat, used with L58497 resistor

1шт.

6

L58497

RESISTOR

- 40 ohm, used with L71734 harness

1шт.

7

L73576

RESISTOR

- harness, used with L74445 harness and after

1шт.

8

REF

INSTRUCTION

ALTERNATOR - 40 amp, see figure 172 for related parts, see Ref. 30 for 65 amp alternator

1шт.

9

L52634

PUMP

- fuel, parts list figure 80

1шт.

10

REF

INSTRUCTION

SENDER - fuel gauge, see figure 78

1шт.

11

L71734

HARNESS

- rear, has soldered resistors, not shown

1шт.

See P/N L36184, Kit

1шт.

12

L57052

RESISTOR

- 25 ohm

2шт.

13

L74445

HARNESS

- rear, has fuse type resistors, Serial Range: -9141518

1шт.

13

L109565

HARNESS

- rear, used on PIN 9141518, used with backup alarm switch with screw type terminal, order L109937 harness and L36238 kit

1шт.

See P/N L36238, Kit

1шт.

See P/N L109937, Rear Harness

1шт.

13a

L109937

HARNESS

- rear, used with backup alarm switch with blade type terminals to 9154754

1шт.

Order with Rear Harness, P/N L109565

1шт.

13b

L114533

HARNESS

- rear, Start Serial: 9154754

1шт.

14

L73576

RESISTOR

- 40 ohm

1шт.

15

L59897

LAMP

- stop and tail, parts list figure 192

1шт.

16

92-8

LOCK WASHER,1/2"

1шт.

17

25-118

NUT,1/2"-20, G5

- hex, 1/2"-20 NF

1шт.

18

REF

INSTRUCTION

FLOOD LAMP - see figure 190 for correct assembly and components

1-2шт.

19

193-48

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1-2шт.

20

492-11012

LOCK WASHER,#12

WASHER, LOCK, #12

1шт.

20

892-1106

LOCK WASHER,M6

if used M6

1шт.

21

195-16

WASHER,#12

- flat, No. 12

1шт.

22

225-14112

NUT,#12-24

- hex, No. 12 - 24 NC, if used

1шт.

22

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm x 1, if used

1шт.

L36184

HARNESS

KIT - service option, before tractor SN 9125771

1шт.

See P/N L71734, Harness

1шт.

L79234

KIT

- receptacle, rear harness

1шт.

L79235

KIT

- plugs, front harness

1шт.

L78403

BRACKET

- harness

1шт.

L36238

KIT

- electrical, includes terminals to adapt, Serial Range: harness-switches

1шт.

Order with Rear Harness, P/N L109565

1шт.

23

L70299

BRACKET

- resistor mount

1шт.

24

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

25

92-5

LOCK WASHER,5/16"

1шт.

26

L73415

CLAMP

- resistor

2шт.

27

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- round head, slotted, No. 8 - 32 NC x 1/2"

1шт.

28

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

29

129-6

NUT,#8-32

1шт.

30

REF

INSTRUCTION

ALTERNATOR - 65 amp, see figure 170 for related parts, see Ref. 8 for 40 amp alternator

1шт.

31

L72960

ELECTRICAL WIRE

WIRE - L72955 alternator, Serial Range: harness-relay

1шт.

32

L72959

ELECTRICAL WIRE

WIRE - L72955 alternator, Serial Range: alternator-relay

1шт.

33

L73433

RELAY

- L72955 alternator

1шт.

34

71-510

SCREW - round head, slotted, 5/16"-18 NC x 5/8"

1шт.

35

92-5

LOCK WASHER,5/16"

1шт.

36

L106774

CAP

- 40 amp alternator

1шт.

37

49838

CLAMP

- harness

1шт.

38

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- harness

1шт.

39

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

40

92-6

LOCK WASHER,3/8"

1шт.

41

A31060

ELECTRICAL WIRE

WIRE - ground

1шт.

42

L100659

CLIP

- wire

1шт.

43

49832

CLAMP

- harness

1шт.
