Запчасти Case W14 (148) - ELECTRICAL SYSTEM, REAR HARNESS TO SWITCHES AND SOLENOIDS (04) - ELECTRICAL SYSTEMS

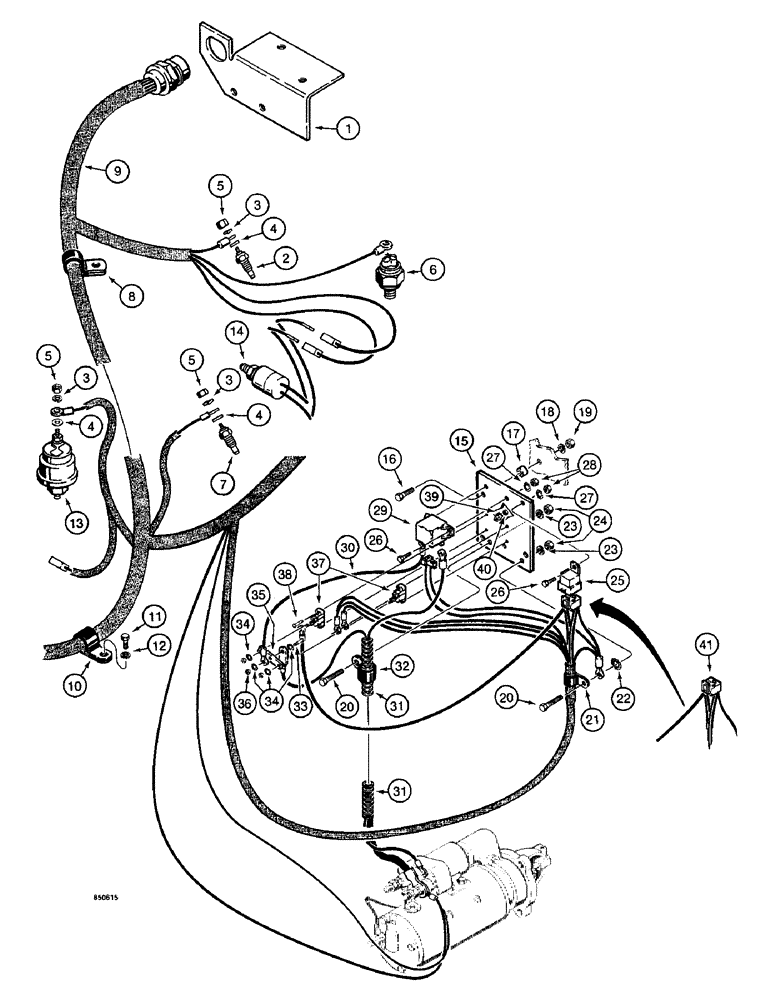

Схема запчастей Case W14 - (148) - ELECTRICAL SYSTEM, REAR HARNESS TO SWITCHES AND SOLENOIDS (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

L78403

BRACKET

- harness, Start Serial: 9125771

1шт.

2

L56217

UNIT

SENDER - torque converter oil temperature

1шт.

3

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

4

195-12

WASHER,#10

- flat, No. 10

3шт.

5

129-27

NUT,Hex, #10 - 32

- hex, No. 10 - 24 NC

3шт.

6

L109945

TRANSMITTER

SENDER - air pressure

1шт.

7

L56217

UNIT

SENDER - water temperature, used on tractor without backhoe

1шт.

8

L100108

CLAMP

- harness

1шт.

9

L114533

HARNESS

- rear

1шт.

10

R14668

CLAMP

- wire

1шт.

11

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

12

92-5

LOCK WASHER,5/16"

1шт.

13

REF

INSTRUCTION

SWITCH - neutral start, see figure 140

1шт.

14

REF

INSTRUCTION

SWITCH - backup alarm, see figures 234 and 236

1шт.

15

L115657

PLATE

- relay mounting

1шт.

16

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8"-16 NC x 1-1/2"

2шт.

17

L78175

HUB

SPACER - bolt

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

2шт.

20

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

21

49885

CLAMP

- harness

1шт.

22

193-45

WASHER,Ext-Int Tooth, 5/16"

- external-internal tooth lock, 5/16"

1шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16"-18 NC

2шт.

25

L114539

RELAY

- cab

1шт.

Part of electrical modification kit, P/N L36275, Figure 144

1шт.

26

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

27

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - external-internal tooth lock, 1/4"

3шт.

28

25-104

NUT,1/4"-20, G5

3шт.

29

L115883

RELAY

- starter

1шт.

30

L114058

HARNESS

WIRE - jumper

1шт.

31

L114132

CABLE

-, Serial Range: starter-relay

1шт.

32

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- cable

1шт.

33

182-126

SCREW,Sl Pan Hd, #10 - 24 x 5/8"

- pan head slotted, No. 10 - 24 NC x 5/8"

1шт.

34

193-42

WASHER, LOCK,Ext-Int Tooth, #10

WASHER - external-internal tooth lock, No. 10

4шт.

35

L114028

BAR

- connector

1шт.

36

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC

1шт.

37

L114199

BREAKER

CIRCUIT BREAKER - 30 amp

2шт.

Part of electrical modification kit, P/N L36275, Figure 144

1шт.

38

182-127

SCREW,Sl Pan Hd, #10 - 24 x 3/4"

- pan head slotted, No. 10 - 24 NC x 3/4"

4шт.

39

193-42

WASHER, LOCK,Ext-Int Tooth, #10

WASHER - external-internal tooth lock, No. 10

6шт.

40

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC

4шт.

41

L114316

SOCKET

- relay, used with L36275 kit, see figure 144

1шт.

Part of electrical modification kit, P/N L36275, Figure 144

1шт.

Выбрано товаров: 44
