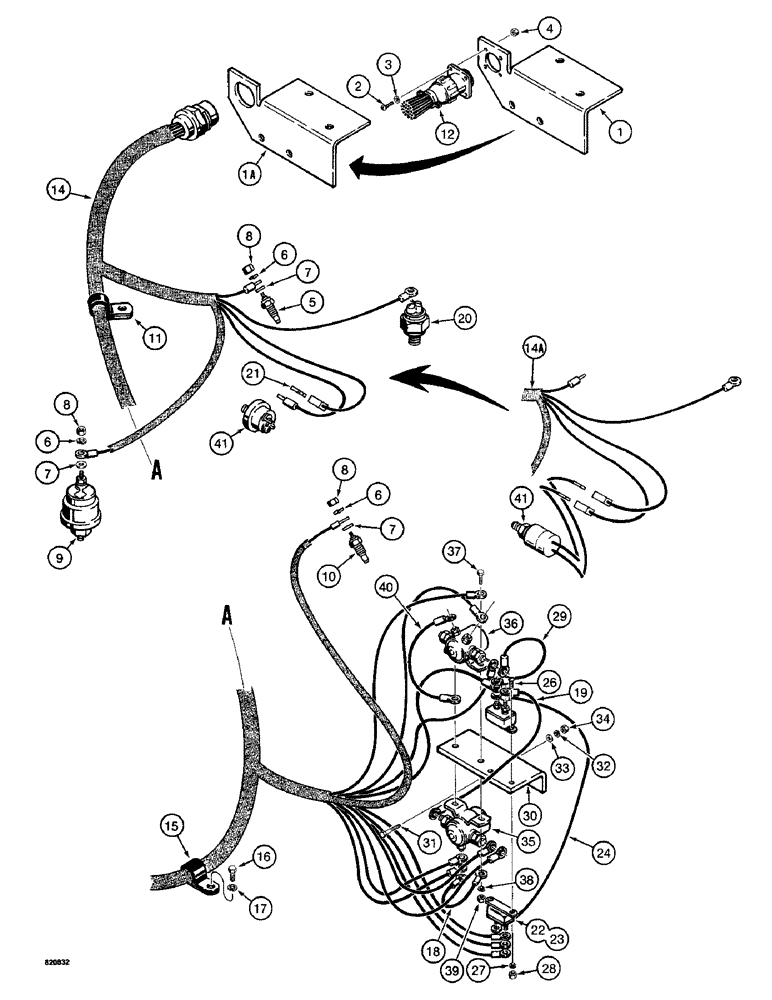

Запчасти Case W14 (144) - ELECTRICAL SYSTEM, REAR HARNESS TO SWITCHES & SOLENOIDS, USED ON TRAC. W/ METAL RELAYS & CIRCIUT BRE (04) - ELECTRICAL SYSTEMS

1

L73819

BRACKET

- harness, Serial Range: -9125771

1шт.

1a

L78403

BRACKET

- harness, Start Serial: 9125771

1шт.

2

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- round head, No. 6 - 32 NC x 1/2", used with L73819 bracket

4шт.

3

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, , Used with L73819 bracket #6

4шт.

4

129-15

NUT,#6-32

Used with L73819 bracket #6-32

4шт.

5

L56217

UNIT

SENDER - torque converter oil temperature

1шт.

6

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

7

195-12

WASHER,#10

- flat, No. 10

3шт.

8

129-27

NUT,Hex, #10 - 32

- hex, No. 10 - 24 NC

3шт.

9

L109945

TRANSMITTER

SENDER - air pressure

1шт.

10

L56217

UNIT

SENDER - water temperature, used on tractor without backhoe

1шт.

11

L100108

CLAMP

- harness

1шт.

12

L71734

HARNESS

- rear, has soldered resistors, not shown, see L36184 kit below

1шт.

13

L57052

RESISTOR

- 25 ohm, not shown

2шт.

14

L74445

HARNESS

- rear, has fuse type resistors, Serial Range: -9141518

1шт.

14

L109565

HARNESS

- rear, used with backup alarm switch with screw type terminals, order L109937 harness and L36238 kit listed below, Start Serial: 9141518

1шт.

14a

L109937

HARNESS

- rear, used with backup alarm switch with blade type terminals

1шт.

15

R14668

CLAMP

- wire

1шт.

16

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

17

92-5

LOCK WASHER,5/16"

1шт.

18

A31060

ELECTRICAL WIRE

WIRE - solenoid to ground, if used

1шт.

19

L70955

ELECTRICAL WIRE

WIRE - relay to circuit breaker

1шт.

20

REF

INSTRUCTION

SWITCH - neutral start, see figure 140

1шт.

21

L59682

TERMINAL CONNECTOR

TERMINAL - flat

1шт.

L36184

HARNESS

KIT - service option, Serial Range: -9125771

1шт.

L79234

KIT

- receptacle, rear harness

1шт.

L79235

KIT

- plug, front harness

1шт.

L78403

BRACKET

- harness

1шт.

L36238

KIT

- electrical, includes terminals to adapt, Serial Range: harness-switches

1шт.

22

L104329

BREAKER

CIRCUIT BREAKER - 15 amp, before PIN 9137290, 9137291, and PIN 9127293

1шт.

23

L104330

BREAKER

CIRCUIT BREAKER - 30 amp

2шт.

24

L70057

ELECTRICAL WIRE

WIRE - circuit breaker to circuit breaker

1шт.

25

RESERVED

1шт.

26

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- round head, No. 8 - 32 NC x 1/2"

2шт.

27

193-5

LOCK WASHER,Ext Tooth, #8

WASHER - lock, No. 8

2шт.

28

129-6

NUT,#8-32

2шт.

29

L70058

ELECTRICAL WIRE

WIRE - solenoid to circuit breaker

1шт.

30

L18684

BRACKET

- solenoid mount

1шт.

31

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

32

92-5

LOCK WASHER,5/16"

2шт.

33

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

34

131-641

NUT

- special, 5/16"

2шт.

35

S240588

SOLENOID SWITCH

SOLENOID - relay, cab

1шт.

36

L109871

SOLENOID

- relay, starter

1шт.

37

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

38

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

39

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

40

A31060

ELECTRICAL WIRE

WIRE - ground

1шт.

41

REF

INSTRUCTION

SWITCH - backup alarm, see figures 234 and 236

1шт.

L36275

KIT

- electrical modification, available for tractors with metal relays and circuit breakers, Includes: Ref. 25, 37, and 41 on figure 148 as well as mounting hardware and a ground strap

1шт.
