Запчасти Case W14 (140) - ELECTRICAL SYSTEM, FRONT HARNESS TO FLOOD LAMPS, USED BEFORE P.I.N. 9154965 (04) - ELECTRICAL SYSTEMS

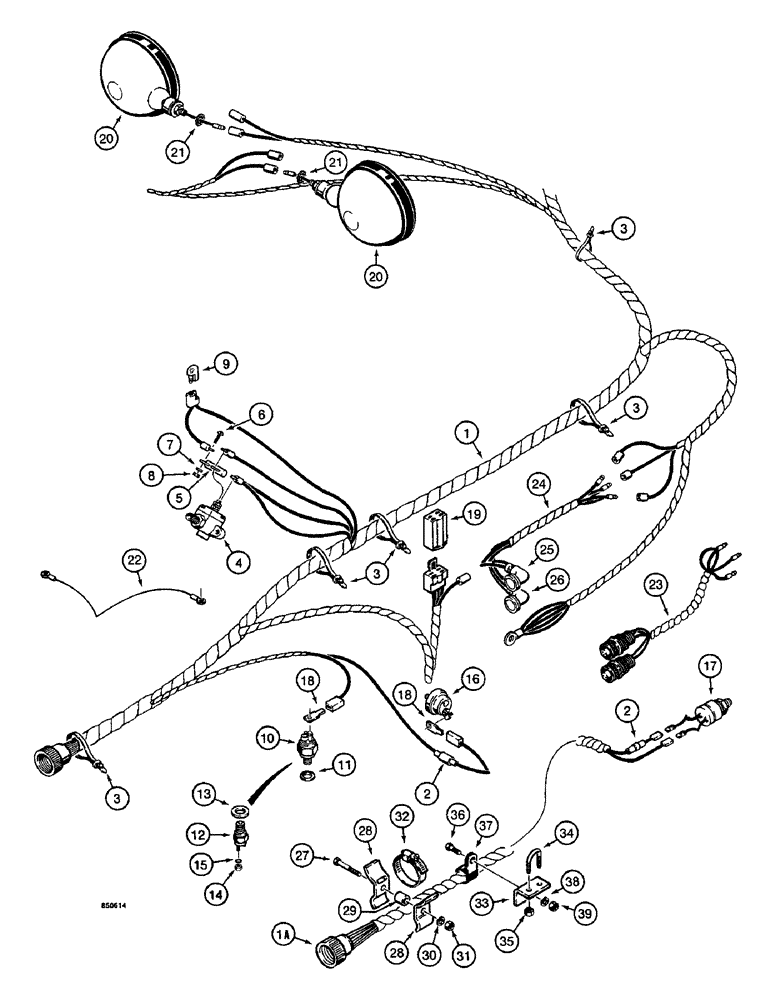

Схема запчастей Case W14 - (140) - ELECTRICAL SYSTEM, FRONT HARNESS TO FLOOD LAMPS, USED BEFORE P.I.N. 9154965 (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

L59407

HARNESS

- front, uses a resistor with spade terminals at the clutch pressure switch, Serial Range: -9125771

1шт.

See P/N L36184, Kit

1шт.

1

L74451

HARNESS

- front, used on PIN 9125772 - PIN 9128819, includes Refs. 4 and 5, uses fuse type resistor at clutch pressure switch, order L107914 harness and L36185 key switch kit, parts list figure 130

1шт.

1

L107914

HARNESS

- front, used on PIN 9128820 - PIN 9127247, order L113989 harness and Refs. 4, 6, 10A, 28 - 33 on figure 136, and L36238 kit

1шт.

See L36238, Kit

1шт.

See P/N L112587, Switch

1шт.

1a

L113989

HARNESS

- front, used without panel lamps, has blade type terminals for clutch pressure switch, has conduit for clamping, Start Serial: 9127248

1шт.

Order with Front Harness, P/N L107914

1шт.

2

L73576

RESISTOR

- 40 ohm

1шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

4

L48128

VALVE

SWITCH - stop lamp and double check valve

1шт.

Order with Front Harness, P/N L107914

1шт.

5

L58697

RESISTOR

- 10 ohm, stop lamp switch, used with single lamp

1шт.

5

L59040

RESISTOR

- 5 ohm, stop lamp switch, used with two lamps

1шт.

6

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- round head, No. 8 - 32 NC x 1/2"

1шт.

Order with Front Harness, P/N L107914

1шт.

7

195-10

WASHER,#8

1шт.

8

129-6

NUT,#8-32

1шт.

9

L71879

DIODE ELEMENT,400V, 3A

DIODE - stop lamp switch

1шт.

10

L77962

SWITCH

- neutral start, order Refs. 12 - 15, Includes: Ref. 11

1шт.

11

D80515

WASHER

GASKET - aluminum

1шт.

12

A160237

SWITCH

- neutral start

1шт.

13

L112595

WASHER

- spacer

1шт.

14

129-6

NUT,#8-32

2шт.

15

193-5

LOCK WASHER,Ext Tooth, #8

WASHER - external tooth lock, No. 8

2шт.

16

D65457

SWITCH

- clutch, pressure, has screw type terminals, order L112587 switch and L36238 kit listed below

1шт.

17

L112587

SWITCH

- clutch pressure, has spade type terminals for use on harness with blade terminals

1шт.

See P/N L107917, Front Harness

1шт.

18

L59682

TERMINAL CONNECTOR

TERMINAL - straight

2шт.

19

223-160

CONNECTOR, ELEC

PLUG - electrical, if used

1шт.

L36184

HARNESS

KIT - service option, Serial Range: -9125771

1шт.

See P/N L59407, Harness

1шт.

L79234

KIT

- receptacle, rear harness

1шт.

L79235

KIT

- plug, front harness

1шт.

L78403

BRACKET

- rear harness

1шт.

L36238

KIT

- electrical, includes terminals to adapt, Serial Range: harness-switches

1шт.

See L107914, Harness

1шт.

20

REF

INSTRUCTION

LAMP - flood, see figure 190 for correct assembly and components

2шт.

21

193-48

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

22

L106551

ELECTRICAL WIRE

WIRE - to hydraulic filter

1шт.

23

L77123

ELECTRICAL WIRE

HARNESS - to loader valve, Serial Range: -9129103

1шт.

24

L100447

HARNESS

- to loader valve, Includes: Ref. 25 and 26, Start Serial: 9129103

1шт.

25

N7321

ROD, CONNECTING

CONNECTOR - 2 pin

1шт.

26

N7322

CONNECTOR, ELEC

CONNECTOR - 4 pin

1шт.

27

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

28

L114039

CLAMP

- harness

2шт.

Order with Front Harness, P/N L107914

1шт.

29

H190488

SPACER

- clamp

1шт.

Order with Front Harness, P/N L107914

1шт.

30

92-6

LOCK WASHER,3/8"

1шт.

Order with Front Harness, P/N L107914

1шт.

31

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

Order with Front Harness, P/N L107914

1шт.

32

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- adjustable #36, 1.81/2.75 Type F Worm

1шт.

Order with Front Harness, P/N L107914

1шт.

33

L113977

BRACKET

- harness mounting

1шт.

Order with Front Harness, P/N L107914

1шт.

34

L78948

U-BOLT

- coined, 5/16"-18 NC

1шт.

35

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, 5/16"-18 NC

2шт.

36

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

37

R14668

CLAMP

- harness

1шт.

38

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

39

9635082

NUT,5/16" - 18, Gr 5

1шт.
