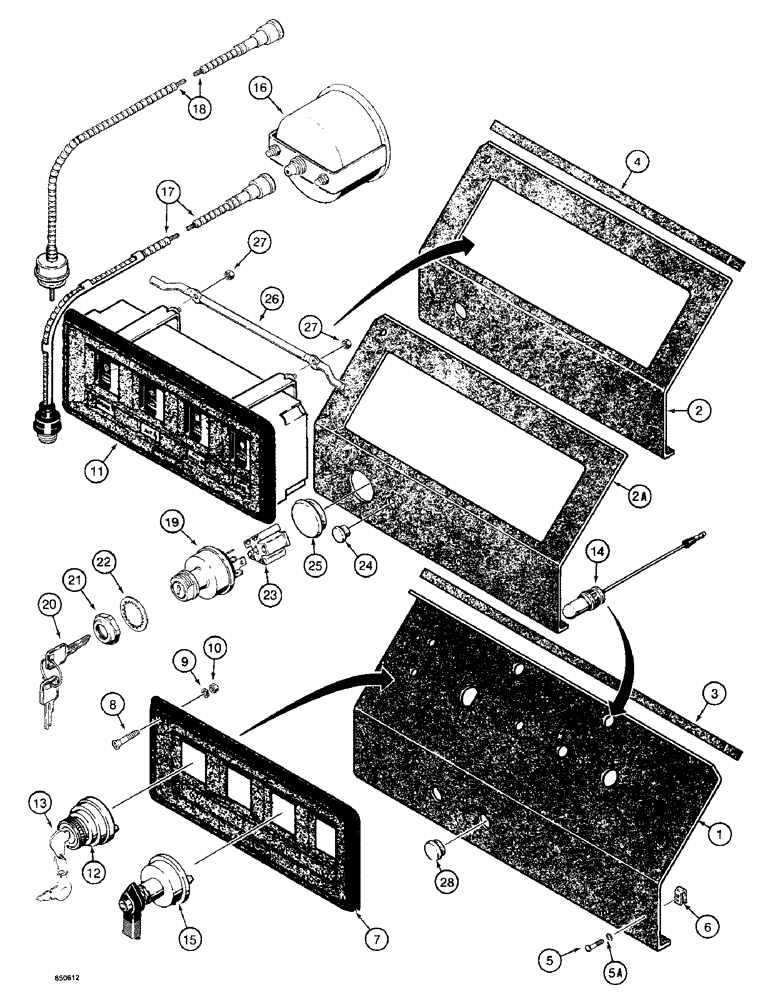

Запчасти Case W14 (130) - ELECTRICAL SYSTEM, INSTRUMENT PANELS AND TACHOMETER, USED BEFORE P.I.N. 9154965 (04) - ELECTRICAL SYSTEMS

1

L107400

PANEL

INSTRUMENT PANEL - right-hand

1шт.

2

L57001

PANEL

INSTRUMENT PANEL - left-hand, used with auxiliary steering warning lamp only

1шт.

2a

L106318

PANEL

INSTRUMENT PANEL - left-hand, used with auxiliary steering warning lamp and buzzer

1шт.

3

L57916

STRIP

- filler, right-hand

1шт.

4

L57917

STRIP

- filler, left-hand

1шт.

5

175-473

SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

- truss head, 1/4"-20 NC x 3/4"

8шт.

5a

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

8шт.

6

131-630

SPRING NUT,Tinn, U, 1/4"-20

- clip

8шт.

7

L55774

PANEL

COVER - instrument, right-hand

1шт.

8

164-215

HEX SOC SCREW,#6 - 32 x 3/4", SST

SCREW - flat head hex, socket, No. 6 - 32 NC x 3/4", stainless

4шт.

9

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

4шт.

10

129-15

NUT,#6-32

4шт.

11

L55650

CLUSTER

- left-hand, parts list figure 134

1шт.

12

L55655

SWITCH

- key, original production, use L36185 switch kit

1шт.

13

R30074

SET

KEYS - set of two

1шт.

14

L105210

LIGHT

LAMP - instrument panel, parts list figure 190

2шт.

15

L55654

SWITCH

- lamp

1шт.

16

L116255

TACHOMETER

GAUGE - tachometer and hourmeter, with radius clamp, if used

1шт.

17

A24101

CABLE

- tachometer

1шт.

To clarify above note, one end of cable is male, one is female

1шт.

In the Artwork, Ref. 17. These are not male threads on the bottom end of this cable. This was an attempt to show this was flaired. It has female threads on the inside of the retractable sleeve.

1шт.

REF: 17 - A24101 Cable used only with A34266 tach drive.

1шт.

18

L74736

CABLE

- tachometer, without radius clamp, if used

1шт.

REF: 18 - L118511 Cable used only with A67178 tach drive.

1шт.

L36185

SWITCH

KIT - key switch, service, Includes: Ref. 19 - 23

1шт.

L61053

IGNITION SWITCH

KEY SWITCH ASSEMBLY - includes keys, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

SWITCH - less keys

1шт.

20

A77313

SET OF 2 KEYS

KEY - set of 2

1шт.

21

A77314

NUT

- hex, special

1шт.

22

193-118

LOCK WASHER,Int Tooth, 1"

WASHER - internal tooth lock, 1", plated

1шт.

23

L79667

CONNECTOR, ELEC

CONNECTOR - 6 pole electrical

1шт.

24

353-404

PLUG,Dome, .500" hole, Nylon

1шт.

25

353-422

PLUG,Dome, 1.250" hole, Nylon

1шт.

26

L100085

ROD

- cluster retaining

1шт.

27

129-27

NUT,Hex, #10 - 32

- hex, No. 10 - 32 NF

2шт.

28

353-407

PLUG,Dome, .687" hole, Nylon

- 11/16"

1шт.

29

353-406

PLUG,Dome, .625" hole, Nylon

- 5/8", use when L105210 panel lamp is removed, not shown

2шт.
