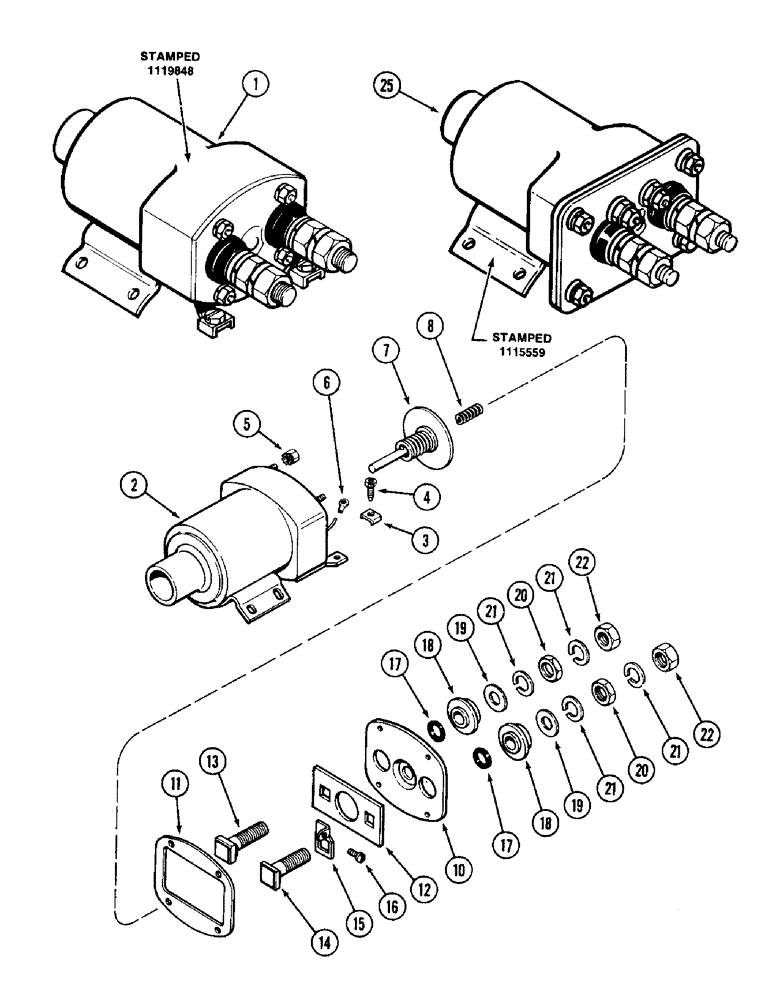

Запчасти Case W14 (128) - STARTER SOLENOID ASSEMBLY (04) - ELECTRICAL SYSTEMS

1

A42376

SWITCH

SOLENOID ASSEMBLY - starter, Delco No. 1119848, Includes: Ref. 2 - 22

1шт.

2

NSS

NOT SOLD SEPARAT

CASE - solenoid

1шт.

3

A42407

CLAMP

CLIP - terminal

1шт.

4

D32502

SCREW,Hex, #10 - 32 x 3/8"

- terminal clip

1шт.

5

D32500

NUT

- plate to case studs (with Shakeproof washer)

4шт.

6

A42408

ELECTRICAL WIRE

WIRE - ground

1шт.

7

A47693

DISC

ASSEMBLY - contact (Order D32498)

1шт.

8

A42411

VALVE SPRING

SPRING - contact disc return

1шт.

A42412

PLATE

ASSEMBLY - terminal, Includes: Ref. 10 - 22

1шт.

10

A42410

PLATE

- terminals and case cover

1шт.

11

A42260

GASKET

-, Serial Range: plate-case

1шт.

12

D32507

RUBBER INSULATOR

INSULATOR - plate

1шт.

13

A42413

STUD

- battery terminal, 1-5/8 inch

1шт.

14

D32506

STUD

- starter terminal, 1-7/8 inch

1шт.

15

D29910

SUPPORT

TERMINAL - coil lead (Replaces A42406)

1шт.

16

175-56

SCREW - truss head, No. 6-32 x 3/16 inch Slotted Truss Hd, #6-32 x 3/16"

1шт.

17

D32510

BUSHING

- terminal plate insulators

2шт.

18

A43701

BUSHING

- terminal studs insulators (Replaces A42409)

2шт.

19

D30004

WASHER

- terminal studs

2шт.

20

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

21

192-113

LOCK WASHER,1/2"

WASHER - lock, 1/2 inch

4шт.

22

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

25

A47899

SOLENOID SWITCH

SOLENOID ASSEMBLY - starter, Delco No. 1115559, serviced as complete assembly only

1шт.
