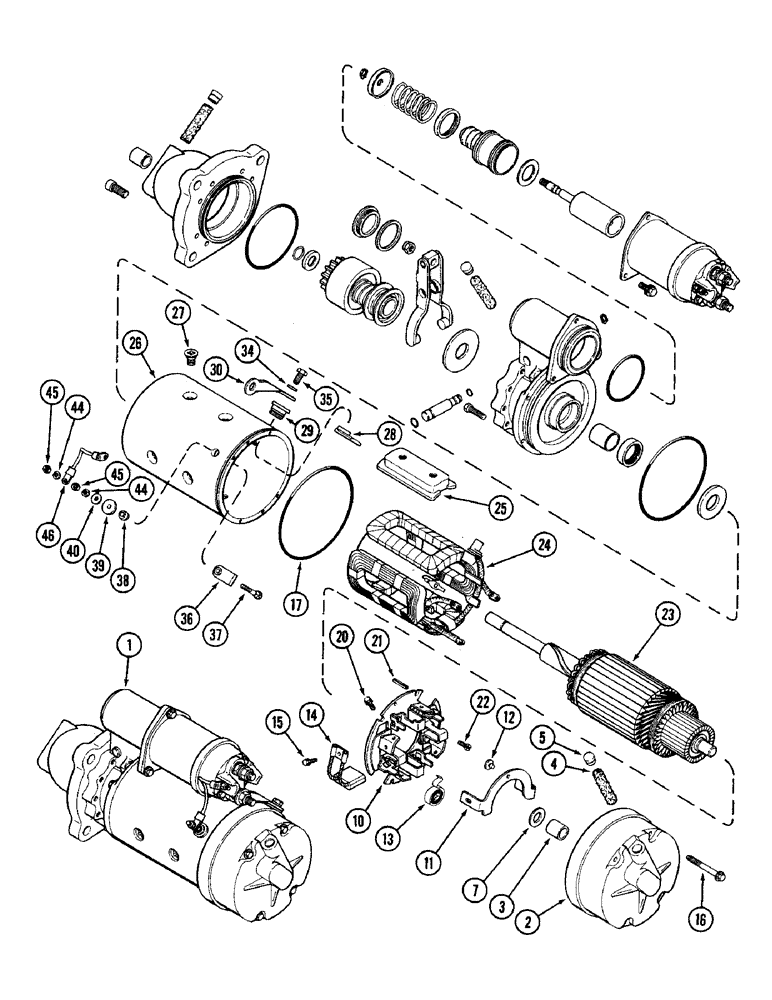

Запчасти Case W14 (124) - A176539 STARTER (04) - ELECTRICAL SYSTEMS

1

A176539

STARTING MOTOR

STARTER ASSEMBLY - engine (Delco-Remy 1993742), Includes: Ref. 1 - 87

1шт.

1

104213A2R

REMAN-STARTER

Remanufactured Starter 24V 12T

1шт.

1

104213A1C

CORE-STARTER

Return Part Number

1шт.

1

104212A2R

REMAN-STARTER

Remanufactured Starter 24V 10T

1шт.

1

104212A1C

CORE-STARTER

Return Part Number

1шт.

2

A49747

FRAME

FRAME ASSEMBLY - commutator end, Includes: Ref. 3 - 7

1шт.

3

A40868

BUSHING

BUSHING - frame

1шт.

Part of starter repair kit, P/N A49748

1шт.

4

A49567

WICK

WICK - felt

1шт.

Part of starter repair kit, P/N A49748

1шт.

5

A49573

PLUG

CUP - wick

1шт.

Part of starter repair kit, P/N A49748

1шт.

7

195-2056

WASHER,5/8" x 1" x .065"

WASHER - flat, 9/16 x 1 x 1/16 inch (14 x 25 x 2 mm)

1шт.

Part of starter repair kit, P/N A49748

1шт.

10

A49505

BRUSH SET

SPARE PART PLATE ASSEMBLY - brush, Includes: Ref. 11 - 17

1шт.

11

A49577

TERMINAL STRIP

CONDUCTOR - frame end

1шт.

12

A49561

INSULATOR

INSULATOR - conductor

1шт.

A49750

BRUSH ASSY.

BRUSH KIT - starter, Includes: Ref. 13 - 17

1шт.

13

A49575

SPRING

SPRING - brush

4шт.

14

A49504

BRUSH

BRUSH - armature

4шт.

15

A49576

SELF-TAP SCREW,Hex Washer, #8 - 32 x 0.44"

SCREW - attaching, brush

4шт.

16

A49574

CAPTIVE WASHER SCREW,Torx, #10 - 32 x 2.28"

SCREW ASSEMBLY - frame

4шт.

Part of starter repair kit, P/N A49748

1шт.

17

A49749

O-RING,4.737" ID x 4.943" OD

O-RING - frame end

1шт.

Part of starter repair kit, P/N A49748

1шт.

20

A47894

SCREW,#8 - 32 x 5/16"

SCREW - attaching, coil lead

3шт.

21

A49753

PIN, SPLIT (COTTER)

PIN, COTTER PIN - brush spring

2шт.

22

177-134

SCREW,Sl Fil Hd, #10 - 32 x 7/16""

SCREW - fillister head, No. 10 NF x 7/16 inch

2шт.

23

A49499

ARMATURE

SPARE PART ARMATURE - starter

1шт.

24

A49503

COIL ASSY.

SPARE PART COIL ASSEMBLY - field

1шт.

25

A49579

PLATE

SHOE - pole

4шт.

26

NSS

NOT SOLD SEPARAT

FRAME - field (Order A176539)

1шт.

27

A42127

SCREW,3/8" - 24 x 0.20"

SCREW - shoe, starter

8шт.

28

A49501

RUBBER INSULATOR

INSULATOR - terminal, field

1шт.

29

A49500

RUBBER INSULATOR

INSULATOR - outer, field terminal

1шт.

30

A49502

CONNECTOR, ELEC

SPARE PART CONNECTOR - terminal, field

1шт.

34

A42100

WASHER

WASHER - terminal, field

1шт.

35

A49751

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW - terminal, field

1шт.

36

A49506

ISOLATOR

INSULATOR - terminal, shunt

1шт.

37

NSS

NOT SOLD SEPARAT

TERMINAL - shunt

1шт.

38

A49578

BUSHING

SPARE PART BUSHING - terminal, shunt

1шт.

39

A49568

WASHER

WASHER - terminal, insulated

1шт.

40

A49560

WASHER

WASHER - terminal, shunt

1шт.

44

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

45

129-667

NUT,#10-32, LH

NUT, #10-32, LH

2шт.

46

A49507

ELECTRICAL WIRE

SPARE PART WIRE - lead

1шт.

47

A49625

SPACER

SPACER - armature

1шт.

Part of starter repair kit, P/N A49748

1шт.

48

A49580

HOUSING

HOUSING ASSEMBLY - shift lever, Includes: Ref. 49 - 52

1шт.

49

A49581

BUSHING

BUSHING - housing

1шт.

Part of starter repair kit, P/N A49748

1шт.

50

A49562

OIL SEAL

SEAL - oil housing

1шт.

Part of starter repair kit, P/N A49748

1шт.

51

A49567

WICK

WICK - felt

1шт.

52

A49573

PLUG

CUP - wick

1шт.

A49758

KIT

LEVER KIT - shift, Includes: Ref. 54 - 67

1шт.

54

A49583

LEVER

LEVER - shift

1шт.

55

A42199

PIN

SHAFT - lever

1шт.

56

A47259

O-RING,0.244" ID x 0.391" OD

O-RING - shaft, lever 3/8 inch (9 mm) OD

1шт.

57

A47258

O-RING,0.369" ID x 0.515" OD

O-RING - shaft, lever 1/2 inch (13 mm) OD

1шт.

58

G46146

SNAP RING,#37, Ext

Ring, Snap, , Includes: Ref. 59 - 67 #37, Ext

1шт.

59

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

O-RING - housing solenoid

1шт.

Part of starter repair kit, P/N A49748

1шт.

60

A41924

GASKET

GASKET - plug

1шт.

Part of starter repair kit, P/N A49748

1шт.

64

A43854

O-RING,3.237" ID x 0.106" THK

O-RING - housing

1шт.

Part of starter repair kit, P/N A49748

1шт.

65

A49585

STOP

STOP - pinion

1шт.

Part of starter repair kit, P/N A49748

1шт.

66

A49586

CLIP,ELECTRICAL

RING - retainer

1шт.

Part of starter repair kit, P/N A49748

1шт.

67

131-31

LOCK NUT,5/16"-24, G8

NUT - hex lock, 5/16 inch NF

1шт.

Part of starter repair kit, P/N A49748

1шт.

68

R21587

PLUG

PLUG - housing, Includes: Ref. 69

1шт.

69

A49582

WASHER

WASHER - brake

1шт.

Part of starter repair kit, P/N A49748

1шт.

70

A49749

O-RING,4.737" ID x 4.943" OD

O-RING - lever housing

1шт.

72

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - housing

6шт.

73

A49754

DRIVE

DRIVE - starter

1шт.

74

A49755

HOUSING

HOUSING - drive end, Includes: Ref. 75 - 77

1шт.

75

A40868

BUSHING

BUSHING - housing

1шт.

Part of starter repair kit, P/N A49748

1шт.

76

A49567

WICK

WICK - felt

1шт.

Part of starter repair kit, P/N A49748

1шт.

77

A49573

PLUG

CUP - wick

1шт.

Part of starter repair kit, P/N A49748

1шт.

78

G46146

SNAP RING,#37, Ext

Ring, Snap, #37, Ext

1шт.

80

A43419

SEAT

RETAINER - spring

1шт.

81

A41242

SPRING

SPRING - plunger

1шт.

82

A43380

BACK-UP RING

RETAINER - spring

1шт.

83

A49589

BOOT

BOOT - plunger

1шт.

84

A41922

WASHER

WASHER - plunger

1шт.

85

A49757

PLUNGER

PLUNGER - solenoid

1шт.

86

A49756

SOLENOID

SOLENOID ASSEMBLY - starter

1шт.

87

A49587

CAPTIVE WASHER SCREW,Hex, 1/4" - 20 x 0.50"

SCREW - solenoid

3шт.

A49748

HALF-BUSHING

HALF BUSH REPAIR KIT - starter, Includes: Refs. 3, 4, 5, 7, 16, 17, 47, 49, 50, 59, 60, 64, 65, 66, 67, 69, 75, 76 and 77

1шт.
