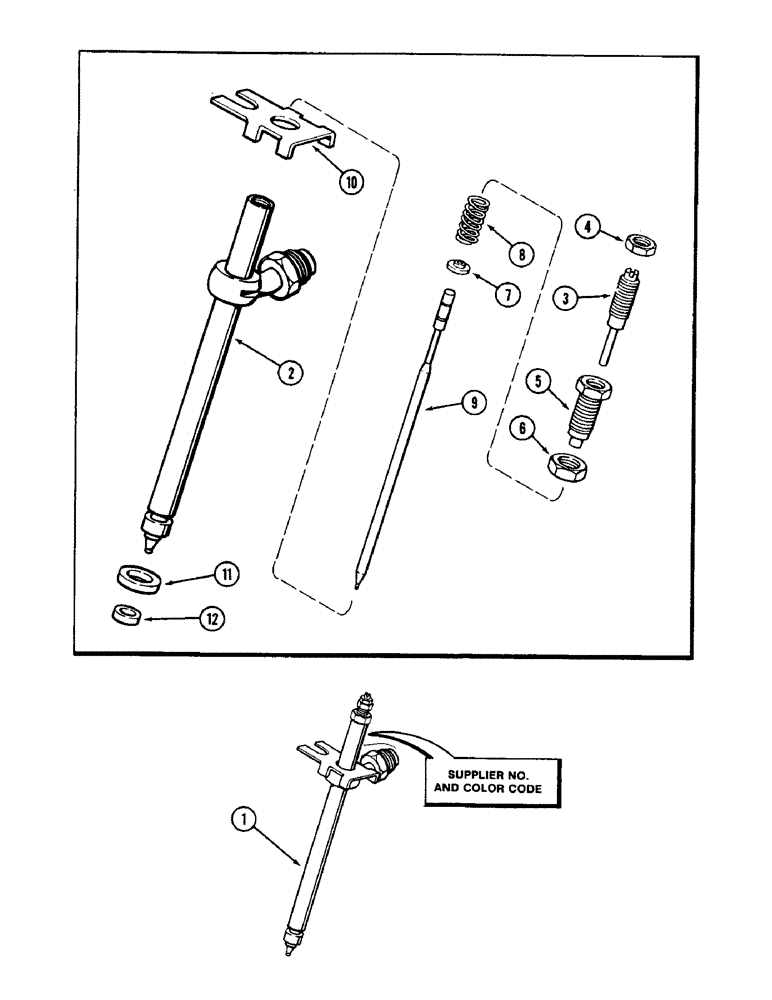

Запчасти Case W14 (092) - INJECTOR NOZZLES, 336BD AND 336BDT DIESEL ENGINE, PENCIL TYPE (03) - FUEL SYSTEM

1

A140830

INJECTOR ASSY.

NOZZLE ASSEMBLY - injector, Stamped 20669 on body, Blue and yellow color code, Includes: Ref. 2 - 12

4шт.

Whenever nozzle is removed from head, A41403 washer and A41402 seal must be replaced before nozzle is installed back in head.

1шт.

A140830R

REMAN-INJECT NOZZLE

W14 (NORTH AMERICA), W14FL, W14H all (S/N 9119672 & AFTER)

4шт.

A140830C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A140830)

1шт.

3

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting screw

1шт.

5

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

7

A44369

SEAT

- pressure adjusting spring

1шт.

8

A43733

SPRING

- pressure adjusting, 9/16 inch free length (Red color code)

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - nozzle (Order A140830)

1шт.

10

A41768

PLATE

- nozzle locating

1шт.

11

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body

1шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.
