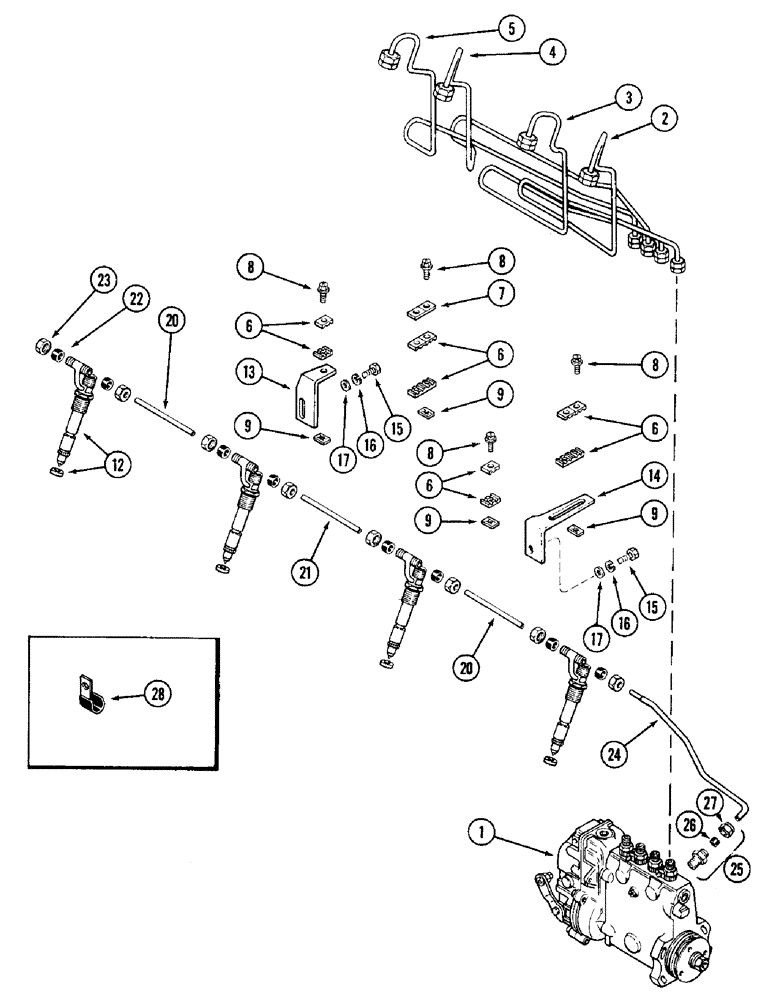

Запчасти Case W14 (084) - FUEL INJECTION SYSTEM, 336BD AND 336BDT DIESEL ENGINE, WITH 17MM TYPE INJECTOR NOZZLES (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 90)

1шт.

2

A156885

TUBE

ASSEMBLY - fuel injection, No. 1 cylinder

1шт.

3

A156886

TUBE

ASSEMBLY - fuel injection, No. 2 cylinder

1шт.

4

A156887

TUBE

ASSEMBLY - fuel injection, No. 3 cylinder

1шт.

5

A156888

TUBE

ASSEMBLY - fuel injection, No. 4 cylinder

1шт.

6

A58709

BRACKET

CLAMP - injection tubes

14шт.

7

A58710

PLATE

- clamp support

1шт.

8

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- slotted hex head, No. 10 NC x 1 inch

7шт.

9

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - Tinnerman, No. 10

7шт.

12

REF

INSTRUCTION

NOZZLE ASSEMBLY - fuel injector (See Figure 88)

4шт.

13

A156898

BRACKET

- rear, injection tubes

1шт.

14

A155451

BRACKET

- front, injection tubes

1шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

195-25

WASHER,3/8"

- flat, 3/8 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

1шт.

20

A76642

TUBE

- fuel leak-off, 4-51/64 inch long (117 mm)

2шт.

21

A76641

TUBE

- fuel leak-off, 5-7/8 inch long (143 mm)

1шт.

22

222-101

SLEEVE,3/16" Tube

- for 3/16 inch tube (5 mm)

8шт.

23

222-111

TUBE NUT,7/16" - 24

NUT - for 3/16 inch tube (5 mm)

8шт.

24

A153816

TUBE

- fuel leak-off, No. 1 cylinder to check valve

1шт.

25

A28098

VALVE

ASSEMBLY - check (one way valve), Includes: Ref. 26 and 27

1шт.

26

222-102

SLEEVE,1/4" Tube

(6 mm) 1/4" Tube

1шт.

27

87017024

TUBE NUT,1/2"-24

NUT - for 1/4 inch tube (6 mm)

1шт.

28

A59718

CLAMP

CLIP - tube

1шт.
