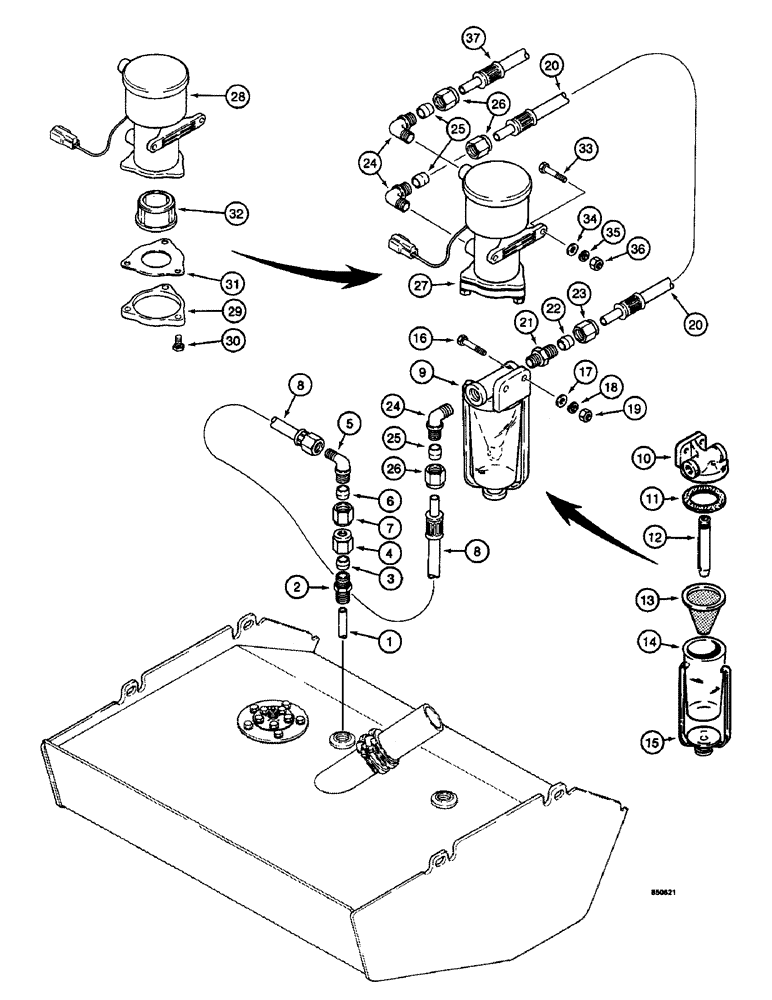

Запчасти Case W14 (076) - FUEL LINES AND PUMP, USED ON PIN 9158554 AND AFTER (03) - FUEL SYSTEM

1

L54565

FUEL TUBE,0.375" OD x 13.5" L

TUBE - fuel

1шт.

222-638

FITTING,9/16"-24 x 3/8" NPT, Comp

- compression, straight, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

3

222-654

FERRULE,3/8" Tube, Comp

- fitting

1шт.

4

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

COMPRESSION NUT - fitting

1шт.

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

FITTING - compression, 90 degree, Includes: Ref. 5 - 7

2шт.

5

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

6

222-104

SLEEVE,3/8" Tube

- fitting

1шт.

7

222-114

NUT,5/8"-24

COMPRESSION NUT - fitting

1шт.

8

L50706

HOSE

-, Serial Range: tank-strainer

1шт.

9

R18798

STRAINER ELEMENT

SEDIMENT BOWL - fuel, Includes: Ref. 10 - 15

1шт.

10

R21356

HOUSING

BODY - sediment bowl

1шт.

11

R21357

GASKET

- sediment bowl

1шт.

12

R21360

TUBE,0.687" DIA x 3.344" L

- sediment bowl

1шт.

13

R21359

FILTER SCREEN

SCREEN - sediment bowl

1шт.

14

R21361

BOWL

- sediment bowl

1шт.

15

R21358

CLAMP

RETAINER - sediment bowl

1шт.

16

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

17

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

25-104

NUT,1/4"-20, G5

2шт.

20

L54260

HOSE

- fuel supply, 13-1/2" (343 mm) long

1шт.

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

FITTING - compression, straight, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

22

222-104

SLEEVE,3/8" Tube

- fitting

1шт.

23

222-114

NUT,5/8"-24

COMPRESSION NUT - fitting

1шт.

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

FITTING - compression, 90 degree, Includes: Ref. 24 - 26

2шт.

24

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

25

222-104

SLEEVE,3/8" Tube

- fitting

1шт.

26

222-114

NUT,5/8"-24

COMPRESSION NUT - fitting

1шт.

27

L115545

PUMP

- fuel, electric, Includes: Ref. 28 - 32

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

29

NSS

NOT SOLD SEPARAT

COVER - inlet

1шт.

30

113-1003

SCREW,Hex, #10 - 24 x 3/4", Gr 5

3шт.

31

N9893

GASKET

- inlet cover

1шт.

32

N9892

FILTER, FUEL

FILTER - fuel

1шт.

33

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

34

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

35

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

36

25-104

NUT,1/4"-20, G5

2шт.

37

L47879

HOSE

- pump to filter, 22" (559 mm) long

1шт.
