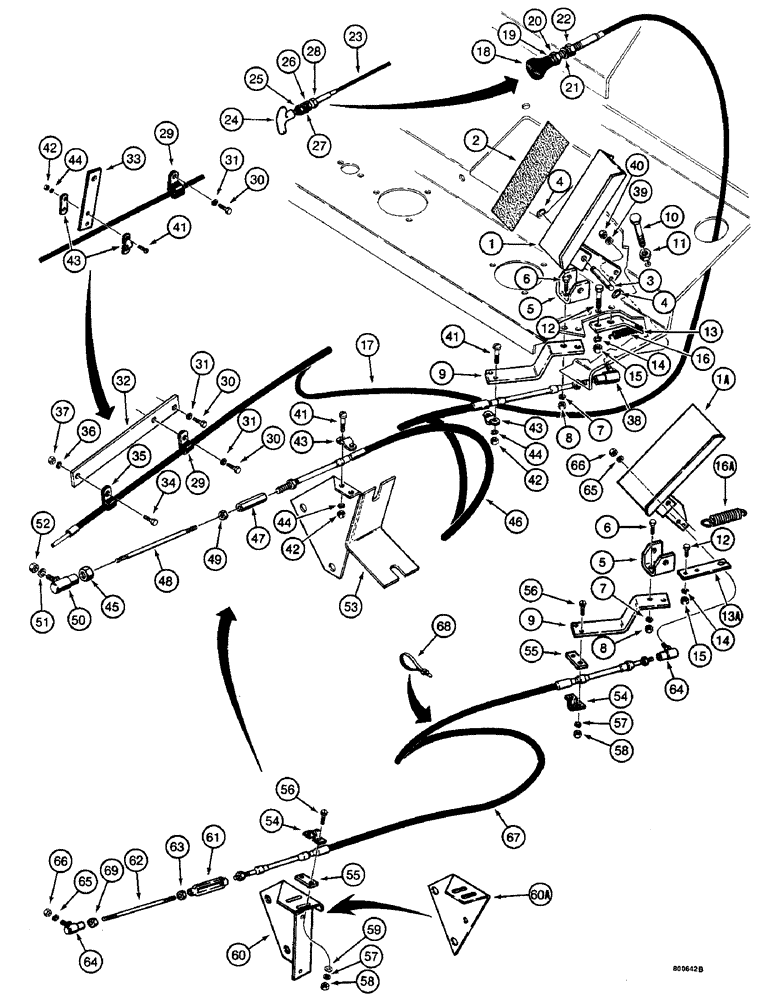

Запчасти Case W14 (068) - FOOT ACCELERATOR AND LINKAGE (03) - FUEL SYSTEM

1

L104058

PEDAL

- accelerator, used with L48024 bracket, Ref. 13

1шт.

1a

L110297

PEDAL

- accelerator, used with L110302 bracket, Ref. 13A

1шт.

2

D55216

PAD,2" x 9"

PAD - accelerator pedal

1шт.

3

D66055

PIN,9.53mm OD x 79.25mm L

- pedal pivot

1шт.

4

A27795

RING

SNAP RING - pedal pivot

2шт.

5

L48002

BRACKET

- accelerator pedal mounting

1шт.

6

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

25-104

NUT,1/4"-20, G5

2шт.

9

L53578

BRACKET

- cable mounting, accelerator

1шт.

10

131-241

BOLT - hex head, 3/8"-16 NC x 3"

1шт.

11

25-146

JAM NUT,Jam, 3/8"-16, G5

JAM NUT - hex, 3/8"-16 NC

1шт.

12

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

13

L48024

BRACKET

- spring return, bent

1шт.

13a

L110302

BRACKET

- spring return, flat

1шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

25-104

NUT,1/4"-20, G5

2шт.

16

L48104

SPRING

- return, accelerator, used with L104058 pedal, Ref. 1

1шт.

16a

L79116

SPRING

- return, accelerator, used with L110297 pedal, Ref. 1A

1шт.

L77572

CABLE

ASSEMBLY - fuel shutoff, Includes: Ref. 17 - 22

1шт.

17

NSS

NOT SOLD SEPARAT

CABLE - fuel shutoff

1шт.

18

L33717

KNOB

HANDLE - cable

1шт.

19

129-141

JAM NUT,Jam, 1/4"-20, G5

1шт.

20

L32866

SEAL

NUT - hex, special, 3/8"-24 NF

1шт.

21

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

22

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - hex, 3/8"-24 NF, plated

1шт.

L105316

CABLE

ASSEMBLY - fuel shutoff, has grooved tube on lower end, Includes: Ref. 23 - 28

1шт.

23

NSS

NOT SOLD SEPARAT

CABLE - fuel shutoff

1шт.

24

NSS

NOT SOLD SEPARAT

HANDLE - tee, L33717 knob used for service

1шт.

25

129-141

JAM NUT,Jam, 1/4"-20, G5

1шт.

26

L32866

SEAL

NUT - hex, special, 3/8"-24 NF

1шт.

27

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

28

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - hex, 3/8"-24 NF, plated

1шт.

29

49859

CLAMP

- cable, fuel shutoff

1шт.

30

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1-2шт.

31

92-6

LOCK WASHER,3/8"

1-2шт.

32

L50803

BRACKET

- fuel shutoff cable, rear, no longer available, order L106479 bracket

1шт.

33

L106479

BRACKET

- fuel shutoff cable

1шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

35

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- cable, fuel shutoff

1шт.

36

92-6

LOCK WASHER,3/8"

1шт.

37

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

1шт.

38

L12437

BALL JOINT,#10 - 32 x 7/8"

- accelerator linkage, used with L50792 cable, Ref. 46

1шт.

39

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

40

129-37

NUT,#10-32

1шт.

41

177-100

SCREW,Sl Fil Hd, #10 - 32 x 3/4"

- slotted fillister head, No. 10 - 32 NF x 3/4", used with L12441 clamp

2-6шт.

42

129-37

NUT,#10-32

2-6шт.

43

L12441

CLAMP

- accelerator cable, used with L50792 cable, Ref. 46

1-3шт.

44

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2-6шт.

45

129-37

NUT,#10-32

1шт.

46

L50792

CABLE

ASSEMBLY - accelerator, has No. 10 - 32 NF ends, no longer available, order L101031 cable and Refs. 54 - 64

1шт.

47

L14227

CONNECTOR, ELEC

TURNBUCKLE - used with L50792 cable, Ref. 46

1шт.

48

L79499

ROD

- throttle linkage, used with L50792 cable, Ref. 46

1шт.

49

129-315

NUT,#10-32, LH

Used with L50792 cable, Ref. 46 #10-32, LH

1шт.

50

L12437

BALL JOINT,#10 - 32 x 7/8"

- at fuel injection pump, used with L50792 cable, Ref. 46

1шт.

51

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

52

129-37

NUT,#10-32

1шт.

53

L52967

BRACKET

- throttle cable mounting, no longer available, order Ref. 60, L101066 bracket along with Refs. 27, 28, and 29 from figure 206

1шт.

54

L40314

CLAMP

- accelerator cable, used with L101031 cable, Ref. 67

2шт.

55

L40315

SHIM,5.55mm ID x 12.7mm OD x 2.28mm Thk

SPACER - clamp, used with L101031 cable, Ref. 67

2шт.

56

163-12

SCREW,Hex, #10 - 24 x 3/4"

- slotted hex head, No. 10 - 24 NC x 3/4", used with L40314 clamp

4шт.

57

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

58

129-7

NUT,Hex, #10 - 24

- hex, No. 10 - 24 NC

4шт.

59

95-3

WASHER,#12

- flat, 3/16"

2шт.

60

L101066

BRACKET

- throttle cable mounting, used before tractor SN 9151870

1шт.

60a

L109956

BRACKET

- throttle cable mounting, used on tractor SN 9151870 and after

1шт.

61

L101060

TURNBUCKLE

- used with L101031 cable, Ref. 67

1шт.

62

L101068

ROD

- throttle linkage, used with L101031 cable, Ref. 67

1шт.

63

129-321

NUT,1/4"-28, G5, LH

- hex, 1/4"-28 NF, left-hand thread, used with L101031 cable, Ref. 67

1шт.

64

L101057

JOINT

BALL JOINT - used with L101031 cable, Ref. 67

2шт.

65

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

66

129-37

NUT,#10-32

2шт.

67

L112445

BOWDEN CONTROL

CABLE ASSEMBLY - accelerator, has 1/4"-28 NF ends

1шт.

68

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - cable

1шт.

69

25-154

JAM NUT,Jam, 1/4"-28, G5

Hex Jam, 1/4"-28, G5

1шт.
