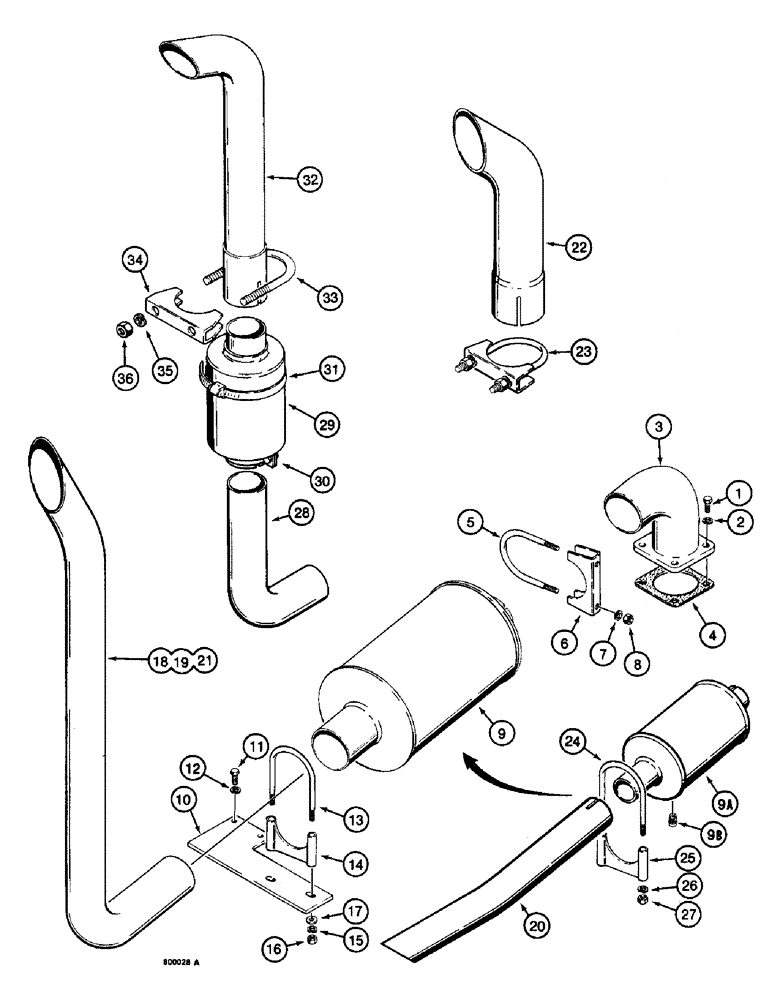

Запчасти Case W14 (062) - EXHAUST SYSTEM, USED ON MODELS WITHOUT BACKHOE (02) - ENGINE

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

2

92-6

LOCK WASHER,3/8"

4шт.

3

L50751

ADAPTER

-, Serial Range: manifold-muffler

1шт.

4

L14218

MANIFOLD GASKET

- adapter to exhaust manifold

1шт.

L14222

CLAMP,79.25mm ID

ASSEMBLY - 5/16"-18 NC x 3-1/8" diameter, no longer available, order L73711 clamp, Includes: Ref. 5 - 8

1шт.

5

L19083

U-BOLT

- no longer available, order L73711 clamp

1шт.

6

L19084

SADDLE

- no longer available, order L73711 clamp

1шт.

7

92-5

LOCK WASHER,5/16"

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16"-18 NC

2шт.

9

L46279

MUFFLER

- standard

1шт.

Ref. 9 - Will accept only Ref. 18

1шт.

9a

L72772

MUFFLER

- spark arresting, Includes: Ref. 9B

1шт.

9b

217-76

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF, Brass

PLUG - 1/4" NPT, brass

1шт.

10

L100046

SUPPORT

BRACKET - mount

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

L100055

CLAMP

ASSEMBLY - 3/8"-16 NC x 3-3/8" diameter, Includes: Ref. 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

U-BOLT - clamp

1шт.

14

NSS

NOT SOLD SEPARAT

SADDLE - clamp

1шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

17

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

Ref. 18 - (3.160" I.D. on the end that goes into the muffler)

1шт.

18

L100040

TUBE,3-3.160" OD x 22.2, 12.8" L

EXHAUST PIPE - 19" (483 mm) high, standard, when replacing exhaust pipe that fits inside the muffler also order L100055 clamp

1шт.

Ref. 19 - Will not work on Ref #9. (2.886 I.D.on end that goes into the muffler)

1шт.

19

L47988

PIPE, EXHAUST SYSTEM

EXHAUST PIPE - 41" (1041 mm) high, service option

1шт.

20

L72284

TUBE,2.886" ID x 3" OD x 28" L

EXHAUST PIPE - 28" (711 mm) long, forestry models

1шт.

21

L73271

TUBE,3" OD x 7.8, 19.3" L

EXHAUST PIPE - 19" (483 mm) high, used with L72772 spark arrester only, uses L73711 clamp

1шт.

22

L57758

MUFFLER

EXHAUST PIPE - turbocharger models

1шт.

23

A17851

CLAMP

ASSEMBLY - L57758 exhaust pipe, includes hardware

1шт.

A176450

CLAMP

ASSEMBLY - 3/8"-16 NC x 3-1/8" diameter, Includes: Ref. 24 - 27

1шт.

24

NSS

NOT SOLD SEPARAT

U-BOLT - clamp

1шт.

25

NSS

NOT SOLD SEPARAT

SADDLE - clamp

1шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

28

L51828

TUBE

- spark arrester

1шт.

L41692

ARRESTER

SPARK ARRESTER - exhaust system, Includes: Ref. 29 - 31

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - spark arrester

1шт.

30

A176450

CLAMP

- spark arrester

1шт.

31

214-277

HOSE CLAMP,#100, 5.88" - 6.75", Type F Worm

CLAMP - spark arrester

1шт.

32

L78955

MUFFLER

EXHAUST PIPE - spark arrester

1шт.

L14222

CLAMP,79.25mm ID

ASSEMBLY - 5/16"-18 NC x 3-1/8" diameter, no longer available, order L73711 clamp, Includes: Ref. 33 - 36

1шт.

33

L19083

U-BOLT

- no longer available, order L73711 clamp

1шт.

34

L19084

SADDLE

- no longer available, order L73711 clamp

1шт.

35

92-5

LOCK WASHER,5/16"

2шт.

36

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16"-18 NC

2шт.
